| Prod Model: |
DRGS series cutting machine |
| Electrical Supply: |
380V,50Hz,3pH(220V,60Hz,3pH Available) |
| Name: |
Shearing, Guillotine Shear |
| Warranty: |
3 Years |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Control System: |
Durama Estun E21s Nc Contro |
| Backgauge Drive: |
Inverter From Taiwan Delta |
| Electrical Components: |
Schneider Electrical From French |
| Back Gauge Accuracy: |
0.03mm |
| Voltage: |
380V/3p/50Hz (Aslo According to Customer Requireme |
| Main Motor: |
Siemens From Germany Braand |
Product Description

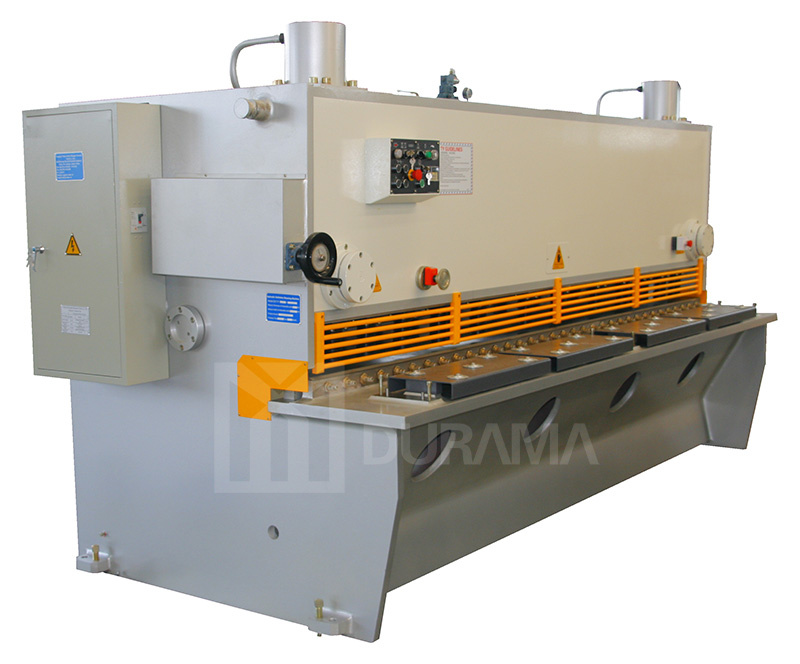

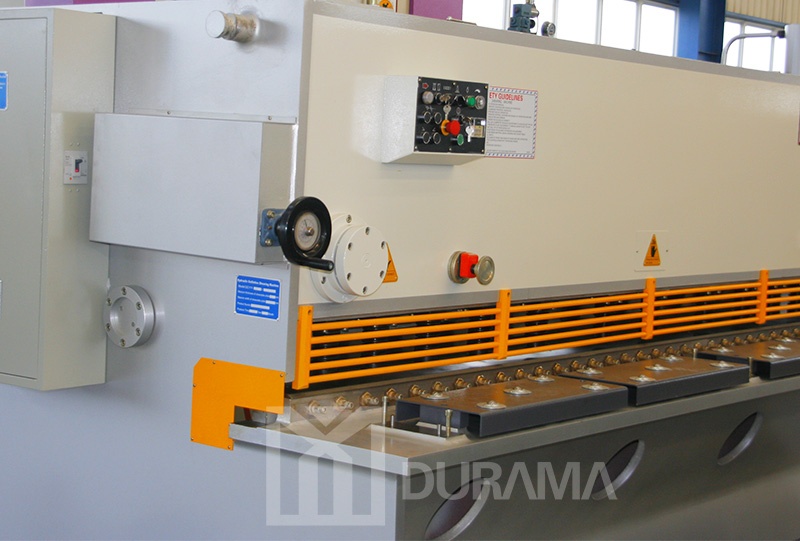

Metal Steel Sheet Plate CNC Hydraulic Guillotine Shear
DRGS-series (QC11Y-series ) Guillotine Shear ManufacturerThe model of this guillotine shear is DRGS-series (QC11Y-series ),Three guide trolleys enable accurate movement and fine shearing results;Adjustable rake angle to minimize deformation of sheared plate;With E21S NC,E21S can control the movement of backgauge,achieving efficient and highly precise positioning.Basic features for guillotine shear• Steel welded structure with stress-free
• Three guide trolleys enable accurate movement and fine shearing results
• E21S can control the movement of backgauge,achieving efficient and highly precise positioning
• Adjustable rake angle to minimize deformation of sheared plate

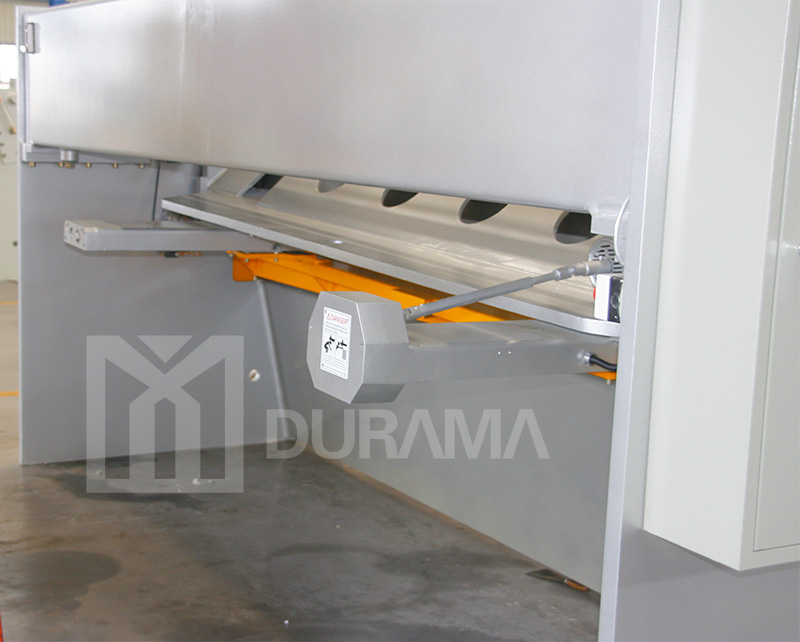

• Swing away backgauge function for cutting longer sheets
• Both upper blade and lower blade has 4 cutting edge for long lifespan of using

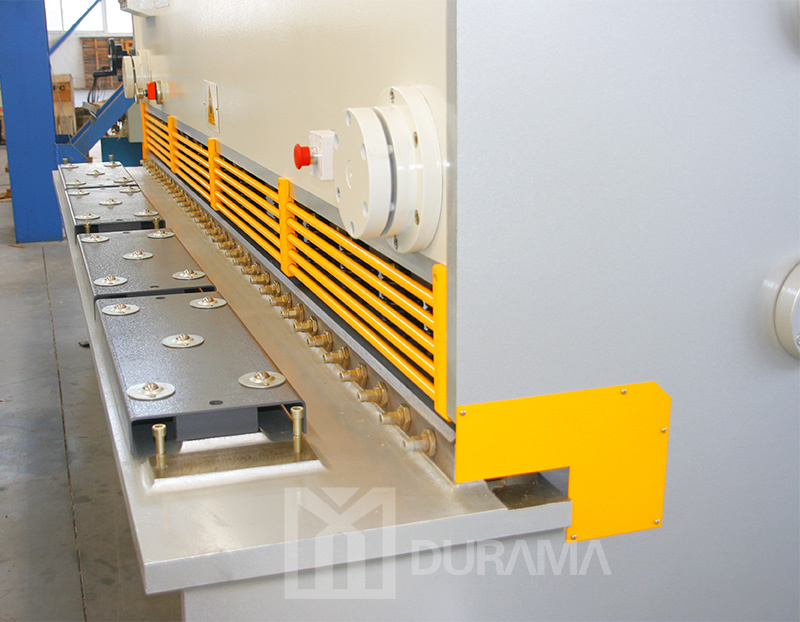

• Ball worktable can reduce the sheet metal contact with the workbence,reduce working intensity
Guillotine shear optional elements
• Cutomized power connection voltage, such as 3phase, 220V, 60Hz in South Ameirca,etc
• Cut piece sliding slope

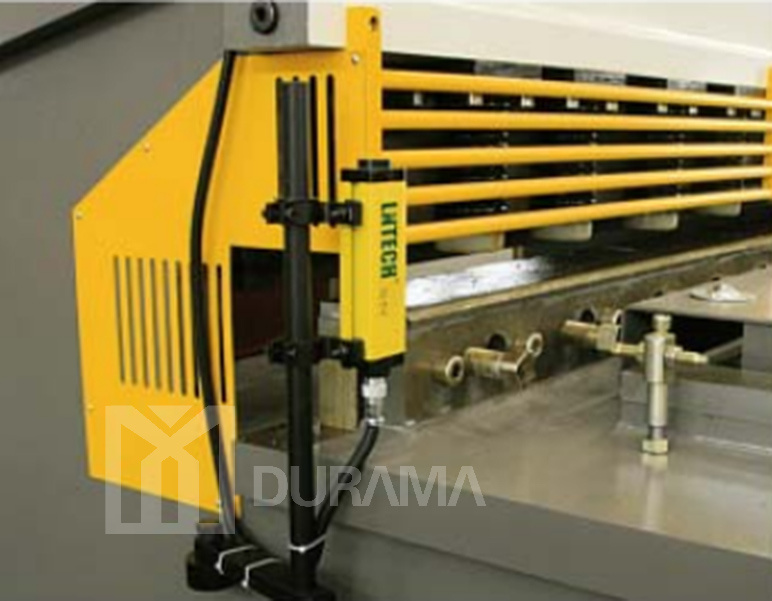

• Light curtain for fingers safety
• Wind turbine coolant
• Hydraulics
• Electrics
• Oil pump

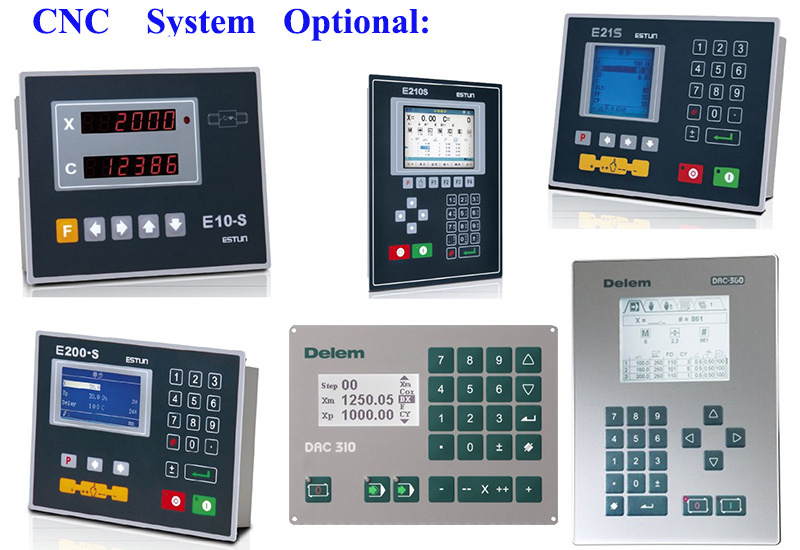

• CNC controllers
Technical Parameters: | Model | Cutting thickness
(mm) | Cutting
width
(mm) | Shearing
angle | Strokes
(min-1) | Backgauge
range
(mm) | Main
Motor
(kw) | Weight
(kg) | Overall
Dimensions
L×W×H(mm) |
| Modelo | Capacidad
de corte (mm) | Logitud
de corte (mm) | angulo | Golpes
per
minuto
(min-1) | Tope
trasero
(mm) | Potencia
motor
(kw) | Peso aprox.
(kg) | Dimensiones
L×W×H(mm) |
| DRGS-625 | 6 | 2500 | 0.5-2 | 10-25 | 20-600 | 7.5 | 5,000 | 3270×1580×2040 |
| DRGS-632 | 6 | 3200 | 0.5-2 | 10-25 | 20-600 | 7.5 | 6,400 | 3820×1580×2100 |
| DRGS-640 | 6 | 4000 | 0.5-2 | 10-25 | 20-600 | 7.5 | 8,500 | 4620×1630×2160 |
| DRGS-650 | 6 | 5000 | 0.5-2 | 8-20 | 20-800 | 7.5 | 13,000 | 5530×2075×2080 |
| DRGS-660 | 6 | 6000 | 0.5-2 | 8-20 | 20-800 | 11 | 17,000 | 6530×2075×2610 |
| DRGS-670 | 7 | 7000 | 0.5-2 | 10-25 | 20-800 | 11 | 21,000 | 7530×2075×2830 |
| DRGS-825 | 8 | 2500 | 0.5-2 | 10-25 | 20-600 | 11 | 5,500 | 3270×1580×2040 |
| DRGS-832 | 8 | 3200 | 0.5-2 | 6-20 | 20-600 | 11 | 6,500 | 3820×1580×2100 |
| DRGS-1225 | 12 | 2500 | 0.5-2.5 | 6-20 | 20-800 | 18.5 | 11,000 | 3400×1920×2350 |
| DRGS-1232 | 12 | 3200 | 0.5-2.5 | 6-20 | 20-800 | 18.5 | 12,000 | 3950×1920×2400 |
| DRGS-1240 | 12 | 4000 | 0.5-2.5 | 4-15 | 20-800 | 18.5 | 14,000 | 4750×1960×2580 |
| DRGS-1380 | 13 | 8000 | 0.5-2.5 | 5-15 | 20-800 | 30*2 | 52,000 | 8600×2900×3100 |
| DRGS-1625 | 16 | 2500 | 0.5-2.5 | 5-15 | 20-800 | 18.5 | 11,000 | 3450×2010×2350 |
| DRGS-1632 | 16 | 3200 | 0.5-2 | 5-15 | 20-800 | 18.5 | 12,800 | 3940×1960×2400 |
| DRGS-1640 | 16 | 4000 | 0.5-2.5 | 5-15 | 20-800 | 18.5 | 15,300 | 4745×2010×2640 |
| DRGS-2025 | 20 | 2500 | 0.5-3 | 5-15 | 30-800 | 30 | 14,000 | 3450×2200×2560 |
| DRGS-2040 | 20 | 4000 | 0.5-3 | 4-15 | 30-800 | 37 | 21,000 | 4660×2200×2710 |
| DRGS-2525 | 25 | 2500 | 0.5-3.5 | 4-15 | 40-1000 | 37 | 17,000 | 3450×2700×290 |

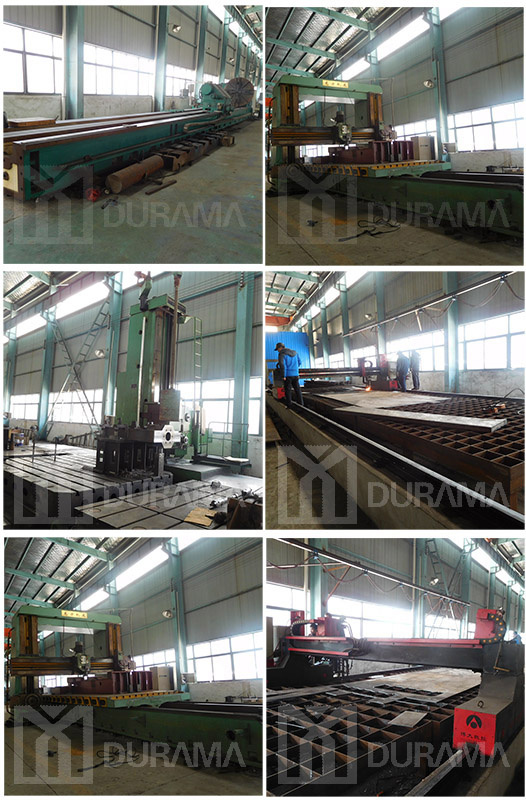

Company Information: We are DURAMA, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA supplies the most comprehensive range of machines and spare parts available today.
With continued investment and an unrivaled reputation for quality and service, DURAMA is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA is always trying best to supply durable machines and spare parts, and timeproof service to our customers.
Our Services:1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 daysPackaging and Shipping:Standard Exporting Packaging for DURAMA Shearing Machine
1.inner machine, it is packaged in moistureproof film.
2.pallet or wood box.
3.ground fixed bolt to confirm steady and avoid destory.
4.tightly exporting standard belf to fasten machine in container.If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!
