Product Description

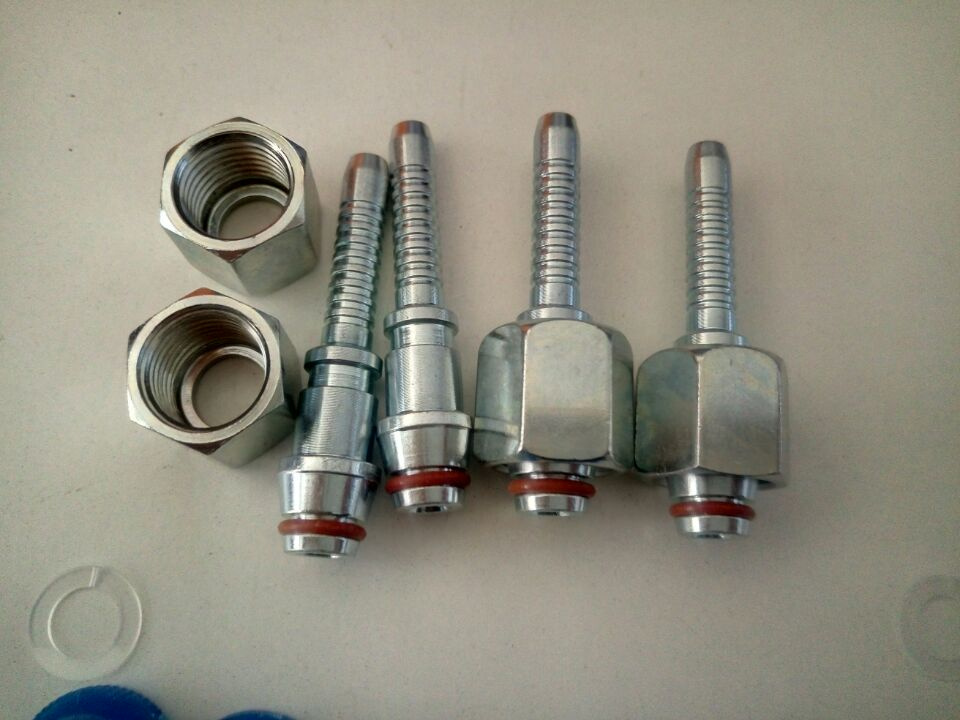

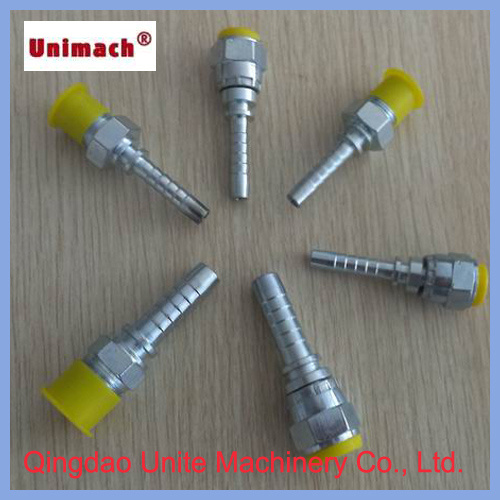

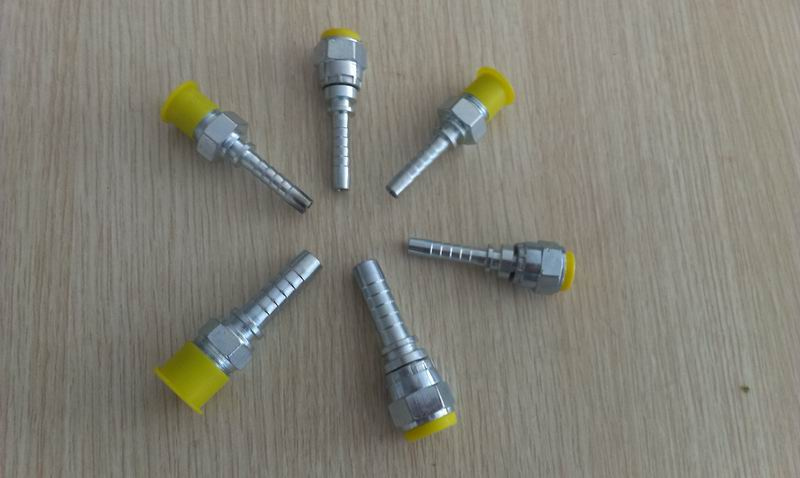

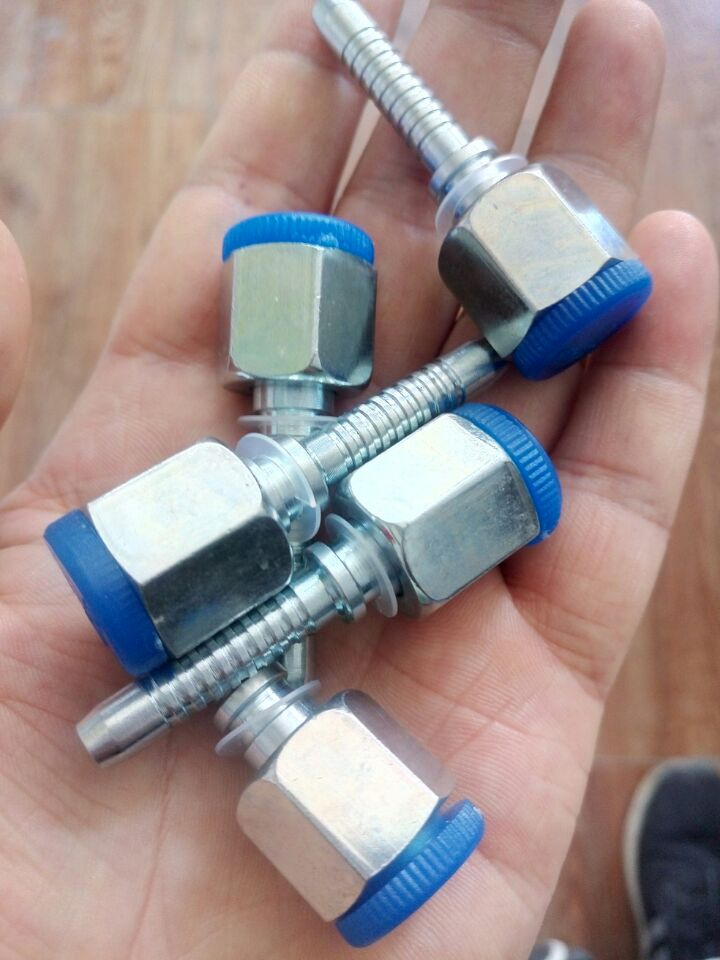

Metric Female 24degree Cone O-Ring H. T. Hydraulic Hose Fitting (20511)Model No.: 20541
Material: Carbon Steel, Stainless Steel
Surface Treatment: Yellow Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Export Markets: Global

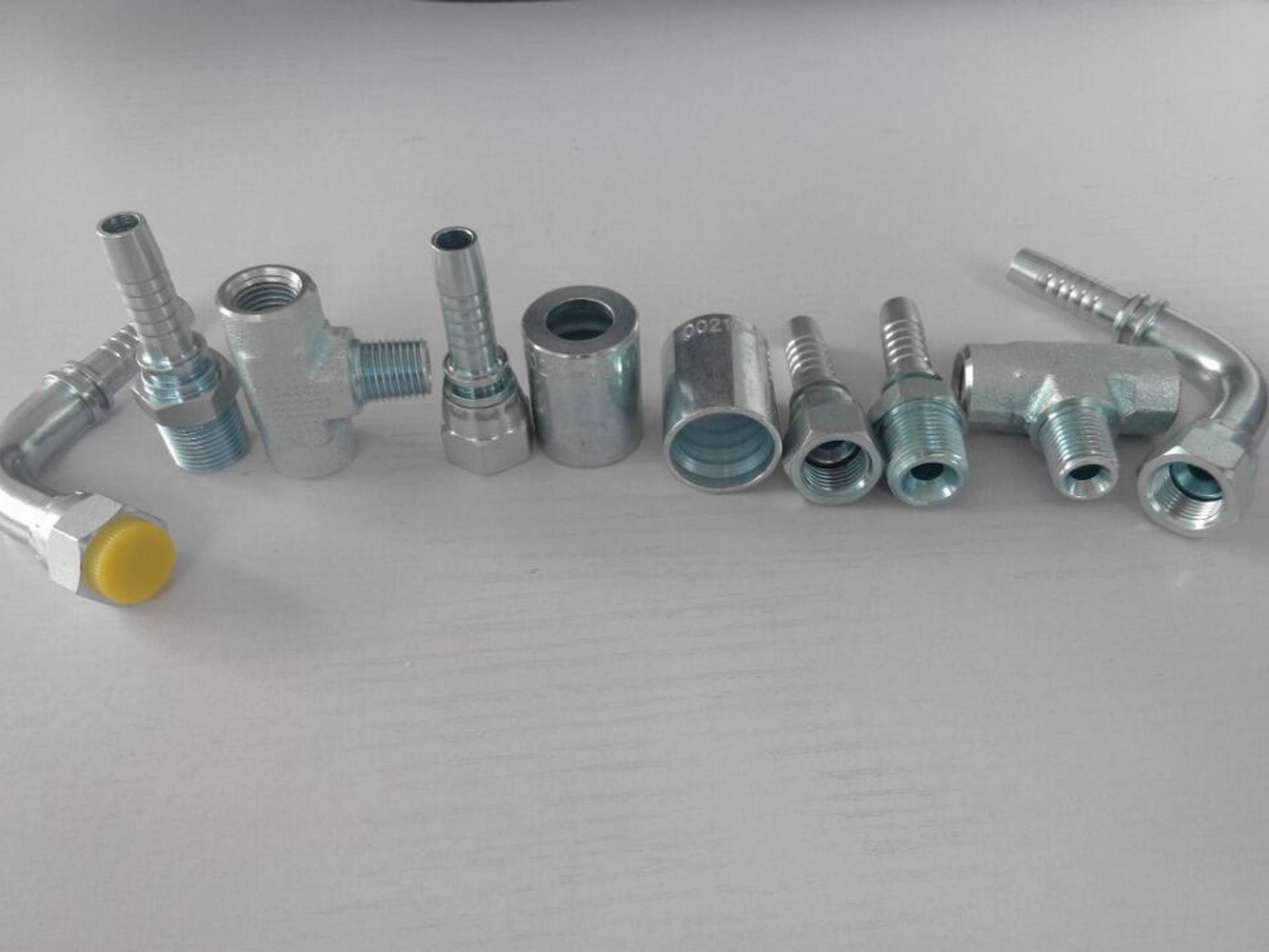

We are manufacturing and marketing all kinds of hydraulic hose fittings, elbow, tee, flange and other hydraulic pressure fittings. The products are available in many different standards, such as JIC, DIN, BSP, JIS, and etc. Or produce according to customers' drawings or samples.
R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.
QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.
Detail products include:
1) FERRULE
FERRULE for SAE100R1AT/EN 853 1SN HOSE
FERRULE for SAE100R1A EN 853 1ST HOSE
FERRULE for SAE100R2AT/DIN20022 2SN HOSE
FERRULE for SAE100R2A/EN853 2SN HOSE
FERRULE for SAE100R1AT-R2AT, EN853 1SN-2SN and EN 857 2SC
FERRULE for 4SP, 4SH/10-16, R12/06-16 HOSE
FERRULE for 4SH, R12/32 HOSE
2) SWAGED METRIC FITTINGS
Metric Flat Seal Fittings Metric Multiseal Fittings
Metric 60° Cone Seal Fittings Metric 74° Cone Seal Fittings
Metric 24° Cone O-RING Seal L...T. Fittings Metric 24° Cone O-RING Seal H. T. Fittings
Metric Standpipe Straight Fittings JIS Metric 60° Cone Seal Fittings
3) SWAGED BRITISH FITTINGS
BSP O-RING Seal Fittings BSP Flat Seal Fittings
BSP Multiseal Fittings BSP 60° Cone Seal Fittings
BSPT Fittings JIS BSP 60° Cone Seal Fittings
4) SWAGED AMERICAN FITTINGS
SAE O-RING Seal Fittings ORFS Flat Seal Fittings
NPSM 60° Cone Seal Fittings JIC 74° Cone Seal Fittings
NPT Fittings SAE Flange L. T. Fittings SAE Flange H. T. Fittings
5) STAPLELOK FITTINGS
BANJO DOUBLE CONNECTION INTERLOCK HOSE FITTINGS
Complete specifications
Male fittings
1) Material: Carbon steel, brass, stainless steel
2) Finish: Yellow Zinc plating
3) Standards: SAE, JIC, BSP, NPT, DIN
4) High quality
Female fittings:
1) Material: Carbon steel, steel, stainless steel, brass, etc.
2) Finish: Zinc (yellow or white) plating.
3) Standards: SAE, JIC, BSP, NPT etc.
4) Application: Machinery, transportation, mines, oil fields, Agriculture equipment, vehicle, heavy industry etc.
(Description): | | | |
| E | HOSE BORE | D | O | DIMENSIONS |
PART NO. | THREAD E | DN | DASH | TUBE O.D. | O RING | A | C | S2 |
20511-14-04 | M14X1.5 | 6 | 4 | 6 | O04.5X1.5 | 28.5 | 1.1 | 19 |
20511-16-04 | M16X1.5 | 6 | 4 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
20511-16-05 | M16X1.5 | 8 | 5 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
20511-18-06 | M18X1.5 | 10 | 6 | 10 | O08.0X1.5 | 29 | 2 | 24 |
20511-20-08 | M20X1.5 | 12 | 8 | 12 | O10.0X1.5 | 31.5 | 2.5 | 27 |
20511-22-08 | M22X1.5 | 12 | 8 | 14 | O11.0X2.0 | 31.5 | 2.5 | 27 |
20511-30-12 | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 39 | 3 | 36 |
20511-18-04T | M18X1.5 | 6 | 4 | 10 | O08.0X1.5 | 26.5 | 2 | 22 |
20511-20-06T | M20X1.5 | 10 | 6 | 12 | O10.0X1.5 | 28.5 | 2.5 | 24 |
20511-22-06T | M22X1.5 | 10 | 6 | 14 | O11.0X2.0 | 28.5 | 2.5 | 27 |
20511-24-06T | M24X1.5 | 10 | 6 | 16 | O13.0X2.0 | 28.5 | 2.5 | 30 |
20511-24-08T | M24X1.5 | 12 | 8 | 16 | O13.0X2.0 | 30 | 3 | 30 |
20511-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 36 | 3 | 36 |
20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 36 | 3 | 41 |
20511-36-14T | M36X2 | 22 | 14 | 25 | O20.3X2.4 | 36 | 3 | 41 |
20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 40 | 5 | 50 |
20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 41 | 5 | 50 |
20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
: 1. ; 2. 20512-xx-xx |
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20512-xx-xx; |
QINGDAO UNITE MACHINERY Co., Ltd(HAITE GROUP) is located in the beautiful seaside city-Qingdao China, which has very beautiful picturesque view and very convenient transportation. Qingdao port is one of the biggest ports of China and our factory is about 15 minutes to Qingdao airport. We specialize in the manufacturing of hydraulic fittings for many years and we have distributors and buyers all over the world.
Products: Our main products include: Ferrule, Hydraulic fitting(Metric, British, American, staplelok, etc. ), Banjo, Adaptor, Hose assembly, and Hose Crimper machinery.
R&D: We have big talent pool which has a large group of exporters and engineers. Some of them have been working in this field for more than 10 years and they have strong knowledge and experience in new product development and quality guarantee.
QC: We adopted an advanced and strict quality control system to guarantee our products comply with or exceed the quality standard.
Market: We focus on both domestic and international markets. Our buyers and distributors include some big and prestigious companies.
Principle: Quality first! Your satisfaction is our biggest goal!
