| Prod Model: |
WEW-600B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Universal Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC380V |
Product Description
I. Technical description and application scope
1. The series of products are mainly used in mechanical property test of stretching, compressing, bending, shearing, peeling and tearing etc. Of metal and nonmetal materials.

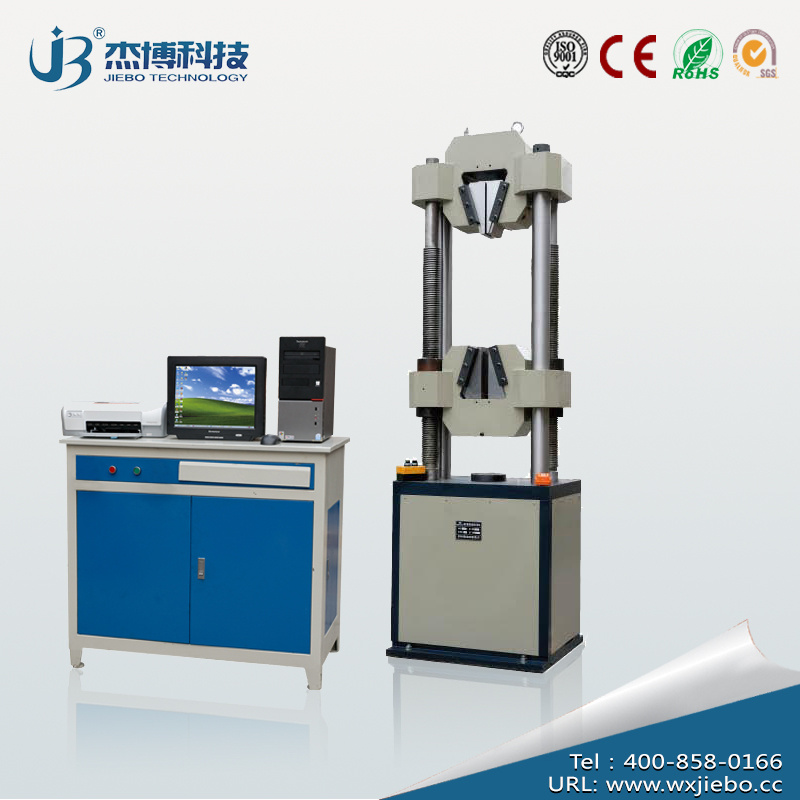

2. The series of products are of oil cylinder lower placed and double-space framework structure, the stretching and compressing space can be adjusted automatically with hydraulic automatic clamp, and they are set with manual control mode. The control unit is composed by computer and hydraulic system. The testing data can be taken and stored randomly and can realize re-analysis of data and curves, partial amplification and re-edit of data, sample, environment and testing conditions. Besides, the unit can automatically evaluate the indexes of all mechanical properties of the materials and print out integral testing reports and curves. (note: The construction of the machine foundation is charged by users).
3. The series of products comprehensively meet the requirements of standards GB/t2611-92 and GB/t16826-1997 and GB/t228-2002 etc.
II. Configuration
1. One set of 600kn host machine.
2. Beam lifting system: One set of desk-type hydraulic station.
3. Hydraulic control system: One set of low-noise high-pressure gear pump (marzocchi) and specialized three-phase asynchronous motor.
4. One set of test measuring and controlling system and software (the measuring and controlling system can perform stretching, compressing and bending tests and can be prepared according to the product requirements of users and according to GB, ISO and jip standards), self-manufactured by the company.
5. One piece of 25mpa high-precision sensor (zhenhai, ningbo)
6. One set of high-precision wiring coder and switching device
7. One set of Lenovo brand computer (double core e3400/1g, memory 250g, hard disk/gma 950, integrated graphics/18.5, LCD).
8. One set of HP ink-jet printer.
9. One set of attachment tools, operation instruction and installation manual etc.
10. Clamp configuration:
A. One set of hydraulic automatic stretching clamp (including V-type jaw and wrench jaw, meeting the requirements of stretching tests of bars and plates respectively); (0-30, Φ 13-Φ 40mm)
B. One set of compressing clamp; (pressure plate Φ 160mm)
C. One set of bending clamp; (cold bending plunger chip Φ 30mm)
Many thanks your interest in our universal testing machine, any question or need assistance, please don't hesitate to contact us.
Tip: The final offer price can negotiable.
