| Prod Model: |
BZ-1632B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Crimping Force: |
50kn |
| Stroke: |
17mm |
| Crimp/Charge: |
350times |
| Clamping Cycle: |
3-6s |
| Package: |
Plastic Box |
Product Description

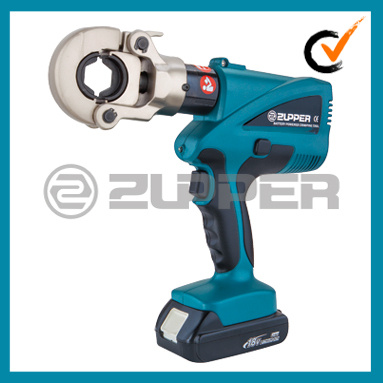

Mini battery power crimping tool (BZ-1632B)
BZ-1632B Battery Crimping Tool for crimping PVC, PEX, XPAP pipe for size 16, 20, 26, 32mm and TH, U, H, B, M, V, SV type.
Feature:
? 350° Rotary head with flip top crimping head, working at any site.
? Sudden suspend function can be controlled at any time, even can retract manually.
? According to ergonomic design with antislip handle.
? Micro computer control system with the feature of self-pressure inspecting, duble protection during operation, counting and realize the exchange between computer with data by the converter.
? High performance Li-ion battery to provide stronger poer source, no discharge memory effects, one time charge 300 times can be effective for crimping.
? LED light make your working comfortable in dark enviroment.
? Precision hydraulic valve control system and electric sensor control system of double safety monitoring protection.
? USB connect to memory crimping time.
| crimping force | 50KN |
| application | copper,stainless steel |
| multi-layer composite pipe, pex pipe |
| stroke | 17mm |
| crimp/charge | 350times(DN20 stainless steel pipe) |
| clamping cycle | 3-6s |
| battery | DC18V 3.0Ah |
| charger | AC100~240V, 40~60hZ |
| charging time | 2 HOURS |
| rated pressure | 63mPA |
| note: in order to meet demad please provide appropriate size and a standard of tube when place order |
| accessories |
|
| battery charger | 2PCS |
| sealing ring of cylinder | 1set |
| sealing ring of safety valve | 1set |
| package | plastic case |
Taizhou Juli Tools Co., Ltd., a tool manufacturer established in 1983, has become the market leader for compression connectors, cutting tools, punching tools and etc. Under more than 20 years hard work, we have created the brand "TPT", "ZUPPER". For us it stands to reason that all our products comply with the highest quality requirements and represent the latest innovations.
We are ISO 9001: 2000 certified and gain CE certification. Modern Computer Aided Design and production facilities provide great potential for development and design performance. Continuous innovative development of our product range guarantees top efficiency. We strive daily for customer satisfaction. Experienced staff, modern and fast means of communication and proved logistics are our basis. We look very much forward to a further trustful and successful cooperation.
We produce most components by ourselves, it is started from cutting raw material, machining roughly in the first step. Casting, forging, punching, heat treatment, finish machining, painting, assembling and finally packing, we will spot check for each steps.
We take care to ensure optimized precision. The latest CNC machinesguarantee
Precision manufacturing for all the components of the tool. This ensures top quality,
Low cost and adequate availability. For us, just meeting the standard is not enough, in terms of safety. User friendlyapplication, all ZUPPER tools comply with highest specifications and excess ofthe standards required. We carry out ISO 9001 series, we get CE, GS certificates. We purchase the rawmaterial and spare parts with first-class quality and toguarantee that, we work long- term suppliers and inspect each batch to make sure all the material and components with high quality.
We meet your requirements backed by our 300 strong highly trained team.
Every year, we train our workers qualify our team to apply high skills to service you.
Now, we have two main types of tools, they are electrician tools and plumbing tools. We will attend different exhibitions every year, such as Canton Fair (twice per year), Kolon Fair in Germany, ISH in Frankfurt, Crocus EXPO IEC in Russia and etc, so we can communicate with you face to face by these exhibitions, we are looking forward to a further trustful and successful cooperation.
If you want to know more information about our products welcome to contact us at any time, and welcome to our company!
