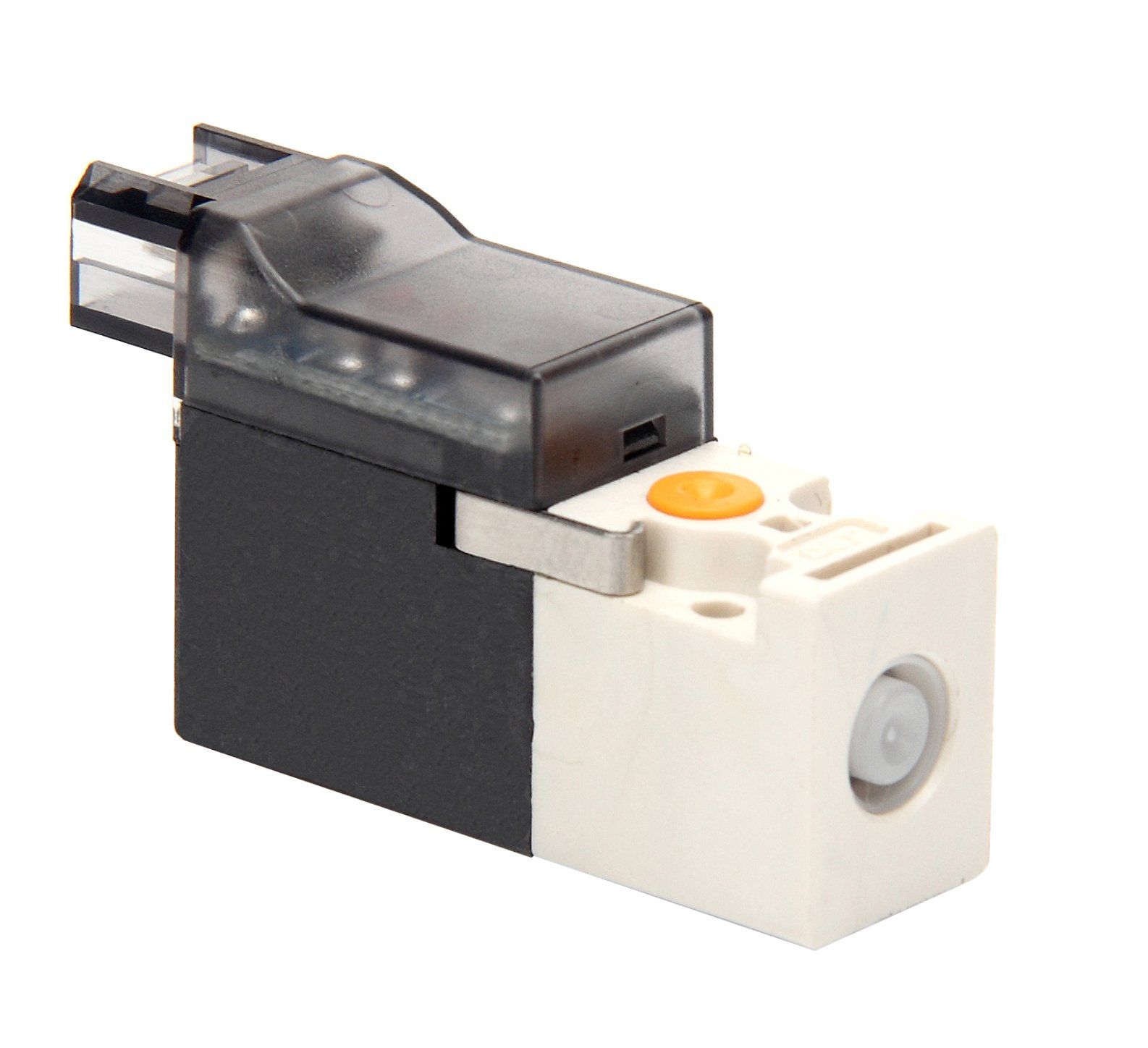

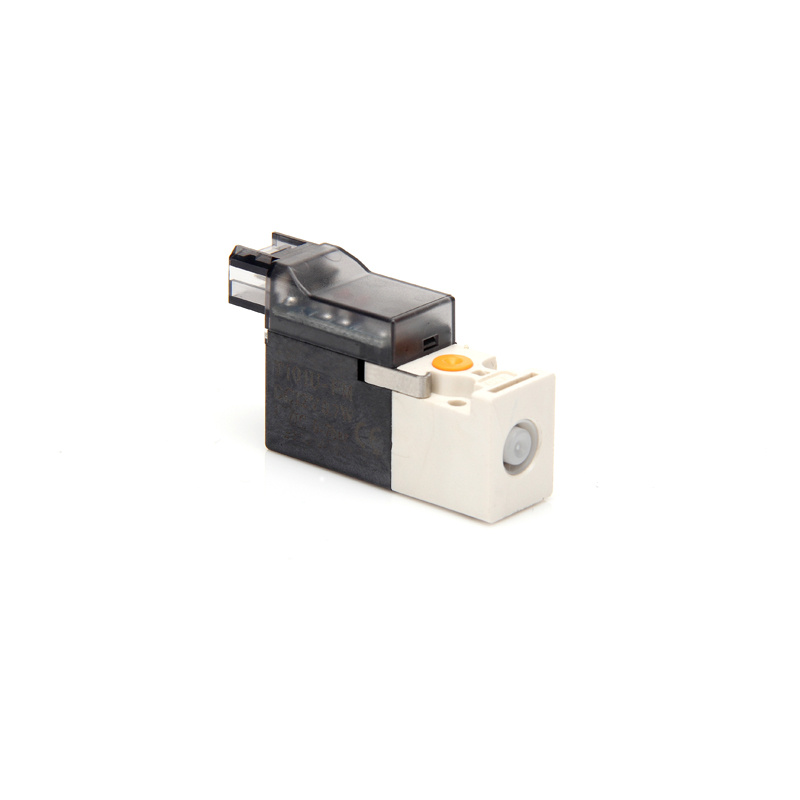

Miniature Solenoid Valve for Textile Knitting Machine
| Price: |
US $ 4.5/Piece |
| Min Order: |
20/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
XV10 Type |
| Thread: |
1/4,1/8 |
| Regular Voltage: |
12VDC, 24VDC, 110VAC, 220VAC |
| Connection Form: |
Thread |
| Type: |
Pilot Operated |
| Valve Structure: |
Pilot Piston Structure |
| Power Supply: |
DC Solenoid Valve |
| Application: |
Household Usage |
| Material: |
Aluminum |
| Usage: |
Directional |
Product Description
FEATURESSmall size & Convenient installaton

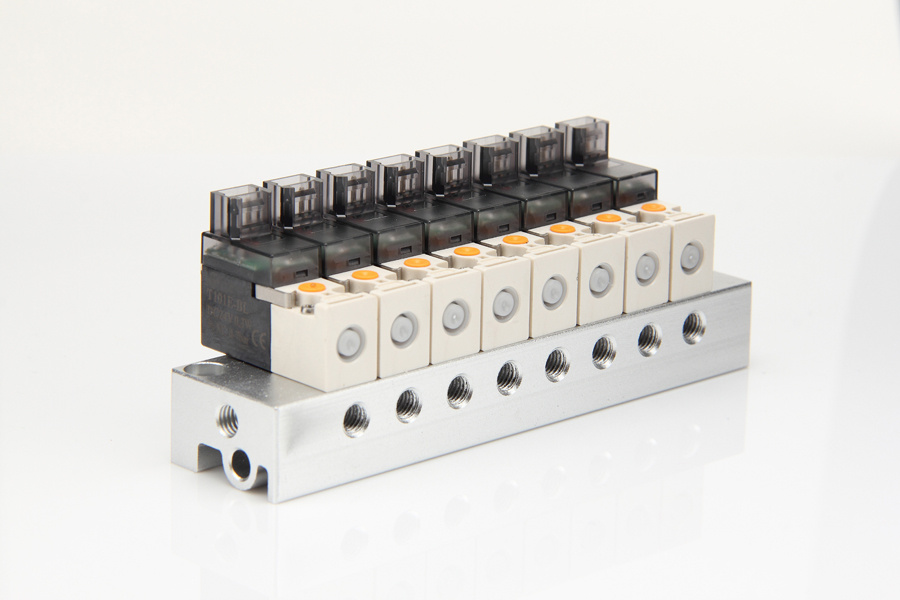

It is ideal for installation in confined space, which can be either installed on a single base or on the manifolds. It can replace the majority of similar products at home and abroad for its great compatibility in installation size and also can be used as the pilot control valve for SY series and 4V series solenoid valve. Energy -saving & Environment friendly
The power consumption of the standard type is only 1w, And the energy -saving type is only 0.3w. Large flow& Wide application
It has large flow rate which can be used not only for compact cylinder, swing cylinder and other slider series, but also for the pilot control of processing valve. The large flow type can especially meet different needs, because it increase the flow rate by 50% on the basis of the standard type. Quick Response & Multi-functional
It can response within10ms, realizing vacuum function easily.

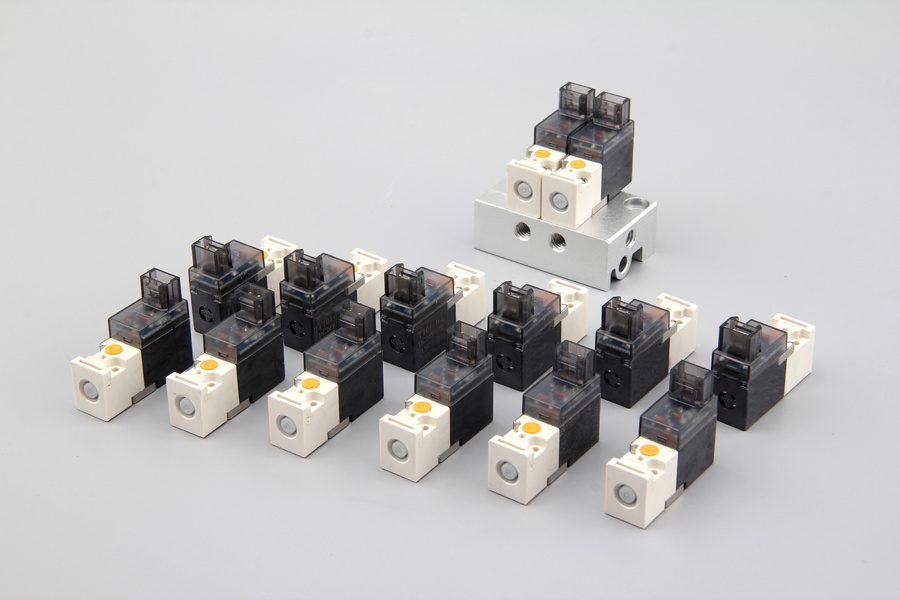

Multi-specifications & All models
Distinguished by voltage, there are AC220V,AV110V,DC24V,DC12V,DC6V and DC3V. Distinguished by
interface mode, there are vertical type(L type), the horizontal type (M type) and direct line type(G type) etc.
It can response within10ms, realizing vacuum function easily. Long life & More sustainable
Super safe even in the situation of 24-hour continuous work and 100% on-load factor.
SPECIFICATIONSGENERAL DATA| Model | XV10 |
| Operation Type | 3/2 N.C.; 3/2 N.O.; 2/2 N.C. |
| Working Medium | Filtered Air/Inert gases |
| Ambient Temperature | -10~80 ºC |
| Working Pressure | 0-7bar |
| Orifice size | φ0.75mm(P),/φ1.0mm(R) |
| Flow rate at 6 bar(Δp1bar) | 16NL/min(P1→P2), 23NL/min(P2→P3) |
COIL DATA| Electrical Connector | Vertical type(L)/Horizontal type(M)/Direct line type(G) |
| Stand Voltage | DC24V/12V/6V/3V; AC220V/110V |
| Power | 1W/1.2W double power |
| Insulation | H Class |
| Service life | > 50 million times |
| Duty Cycle | ED 100% |
| Max Operating Frequency | 30Hz |
| Operating Voltage Tolerance | +/- 10% |
| Response Time | Less than 10ms |
| Degree of pretection | IP65 |
ADVANTAGE 1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2) Aluminum Surface is polished and hard anodized.
3) To import Germany grease to provide firm less-friction support
4) O-ring is imported from Taiwan.
5) 100% leakage testing under low pressure and high pressure.
6) 1 year quality assurance after shipment.
7) After sales technique support
WORKSHOP SHOW
