Mining Hoist Pneumatic Power Winch with Good Price
| Price: |
US $ 5300-5500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,D/P,Western Union,Paypal,Money Gram |
| Prod Model: |
JQHS |
| Colour: |
Customized |
| Warranty: |
12months |
| Brake: |
Automatic/Hand/Foot |
| Material: |
Steel/Stainless Steel |
| Type: |
Construction Winch |
| Carrying Capacity: |
Light Level |
| Tonnage: |
1T |
| Running Mode: |
Stationary |
| Feature: |
Explosion-Proof |
| Standard: |
National Standards |
| Driven Type: |
Pneumatic/Air |
| Certification: |
CCS/ABS/API/Dnv |
Product Description

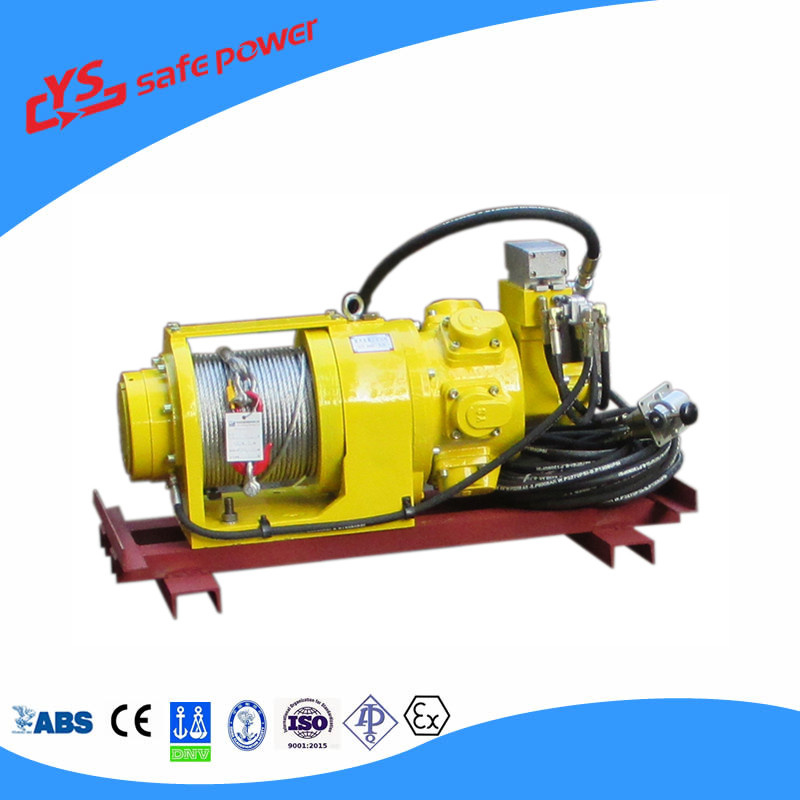

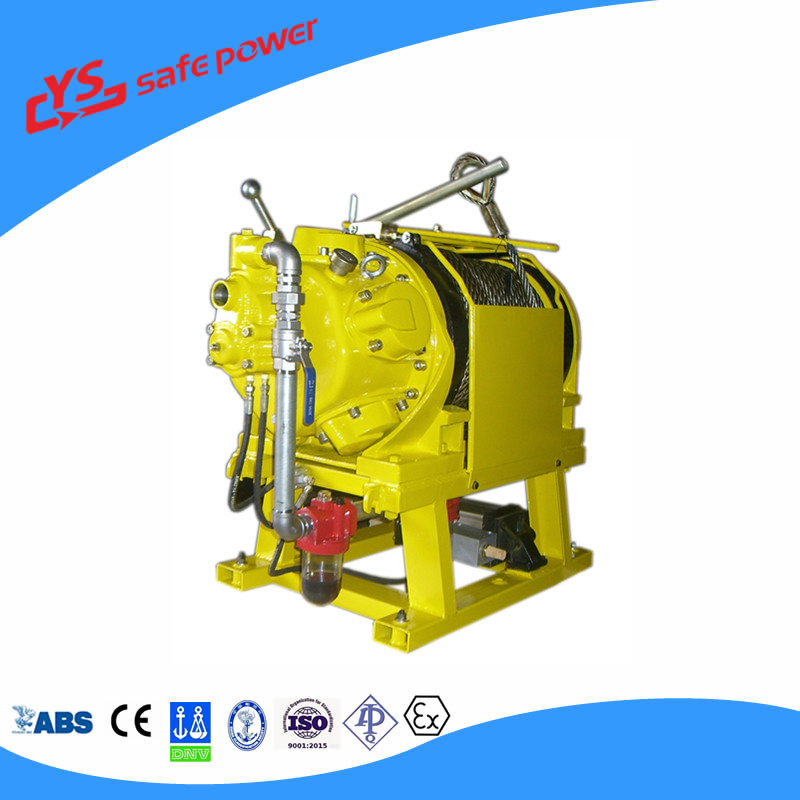

Product DescriptionJQHS10 air winch is a kind of manual operated single drum type air winch. It adopts compressed air as its power to drive air motor,driving drum via two grade gears(to reduce transmitting speed and enlarge torque) so as to lift and drag heavy cargo.Considering security, this winch is specially designed with hand brake and foot brake.This winch is widely used for drilling platform,marines,minings,engineering sites,etc.to pull heavy cargo.
Parameters| Items | Parameters | Messurement Unit |
| Rated Working Pressure | 0.6-0.7 | MPa |
| Rated Full Force | 10 | KN |
| Rated Cable Speed | 24 | m/min |
Piston Air Motor | Model | TMH4A | -- |
| Rated Power | 4 | KW |
| Air Consumption | 130 | L/s |
Drum | Diameter | 175 | mm |
| Width | 198 | mm |
| Wheel Rim Diameter | 290 | mm |
| Cable Diameter | 10 | mm |
| Cable Storage | 50 | m |
| Air Inlet Diameter | 1 | inch |
| Configuration ( Length* Width* Height) ) | 722mm*342mm*530mm |
| Weight | 160 | KG |
| Brake Type | Hand Brake |
Standard Features:• Enable to use in the "HAZARDOUS AREA" such as explosive, high-temperature, humid, the place where is unusable of electricity
• Automatic disc-type holding brake
• Manual band-type holding brake
• Designed for reliable day to day operation
• Heavy-duty steel fabricated drum and frame components
• Compact & light weight designed winches achieve better mobility at job site.
• Easy to service, maintain and repair.
Options Available:• Automatic band brakes
• Grooved, divided and extended length drums
• Air preparation packages: filter, lubricator, strainer, and regulator
• Drum guards
• Remote pendant control
• Muffler
• Special paint options: special colors, zinc rich primer, epoxy top coatsWHY CHOOSE YSWith a history spanning 47 years, YS has served a wide variety of industries including marine, mining, manufacturing, material handling, inland terminal, and construction to name a few. No matter how diverse the applications, one thing connects them all - YS moves it all from big to small. YS products are manufactured to the highest industrial and quality standards because your application is our application.
As the earliest manufacturer for Pneumatic machinery, Yantai Petroleum Machinery Co., Ltd (originally named Yantai Petroleum Machinery Plant) is located in the beautiful coastal city, Yantai. In the past 30 years, we are mainly engaged with the research, design, manufacturing, installation and technical services for Pneumatic and Hydraulic equipment. We possess National-approved Municipal Research & Development Center upgrading our technology to be first-class of the world, and Quality-Control Centre to ensure first-rate quality for our equipment. Our main products cover: Pneumatic Winches, Remote-controlled Pneumatic Winches, Hydraulic Winches, Pneumatic Motors, Drilling Rod Kelly Spinners, Tap Kelly Spinners, Roller Fairleads, Pneumatic Pre-supply Oil Pumps and Hydraulic Pre-supply Oil Pumps, of over 10 series and totally more than 30 varieties, which are all widely used in oilfields, mining, shipbuilding, engineering machinery, metal processing industry, chemical industry, medicine, etc.
As National Key Enterprise in Pneumatic field, our Pneumatic Winches have already been awarded "Shandong Famous-Brand Product", and our other equipment also wins favors from all our customers. To guarantee 100% quality for each of our products, we are equipped with first-rate performance testing systems to strictly comply with the Quality Regulations, and we have already obtained the Certification of ISO 9001: 2008 Quality Control System. Our products enjoy stable domestic market share, and have been delivered far to America, Europe, Middle East and other regions of the world, gaining worldwide reputation and leading place in this industry.
We, Yantai Petroleum Machinery Co., Ltd are willing to devote ourselves and make more contributions to machinery and welcome friends from all over the world to have more cooperation with us.
