| Prod Model: |
4F3654 |
| Part No.: |
4f3654 |
| Description: |
Bolt and Nut |
| Material: |
40cr |
| Hardness: |
HRC 32-42 |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Fasterner |
| Application: |
Heavy Machinery |
Product Description

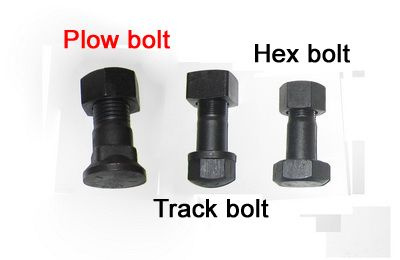

1. Description:| Part No. | 4F3654 |
| Description | Plow blot and nut |
| Measurement: | 5/8"*2" |
| Material: | 40Cr |
| Grade: | 10.9 or 12.9 |
| Tensile Strength: | 150000P.S.I-170000P.S.I |
| Hardness: | HRC 32-42 |
| We are also can make as your drawing. |

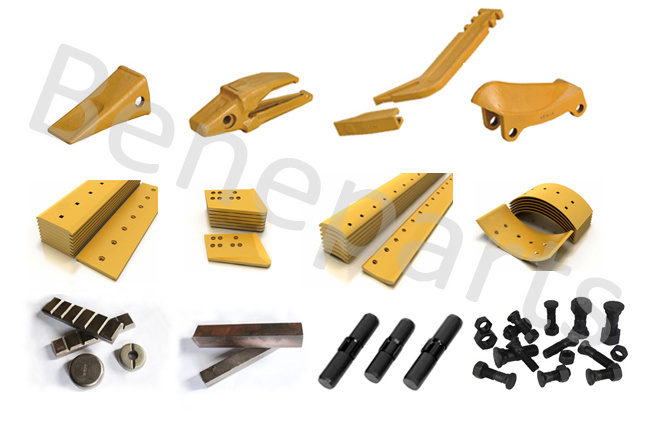

2. Our products range:
3. Popular items blow for reference:
| Part number | Measurement | Description |
| 4F3646 | 1/2"UNC-13X1-1/2" | Plow bolt |
| 4F3648 | 1/2"UNC-13X1-3/4" | Plow bolt |
| 4F3649 | 1/2"UNC-13X2" | Plow bolt |
| 4F3650 | 1/2"UNC-13X2-1/4" | Plow bolt |
| 4F3651 | 1/2"UNC-13X2-1/2" | Plow bolt |
| 4F3652 | 1/2"UNC-13X2-3/4" | Plow bolt |
| 1F7958 | nut 1/2"UNC-13 | nut |
| 5P8245 | 1/2" | washer |
| 4F3664 | 5/8"UNC-11X1-1/2" | Plow bolt |
| 4F3653 | 5/8"UNC-11X1-3/4" | Plow bolt |
| 4F3654 | 5/8"UNC-11X2" | Plow bolt |
| 3F5108 | 5/8"UNC-11X2-1/4" | Plow bolt |
| 4F3656 | 5/8"UNC-11X2-1/2" | Plow bolt |
| 4F3657 | 5/8"UNC-11X2-3/4" | Plow bolt |
| 4F3658 | 5/8"UNC-11X3" | Plow bolt |
| 4F3665 | 5/8"UNC-11X3-1/2" | Plow bolt |
| 4F0391 | 5/8'UNC-11X3-3/4" | Plow bolt |
| 4F3671 | 5/8"UNC-11X4" | Plow bolt |
| 4K0367 | 5/8"UNC-11 | nut |
| 5P8247 | flat washer 5/8" | washer |
| 4F3672 | 3/4"UNC-10X2" | Plow bolt |
| 4F7827 | 3/4"UNC-10X2-1/4" | Plow bolt |
| 5J4773 | 3/4"UNC-10X2-1/2" | Plow bolt |
| 5J4771 | 3/4"UNC-10X2-3/4" | Plow bolt |
| 4F0138 | 3/4"UNC-10X3" | Plow bolt |
| 1J6762 | 3/4"UNC-10X3-1/4" | Plow bolt |
| 02090-1129 | 3/4"UNC-10X3-1/2 | Plow bolt |
| 5F8933 | 3/4"UNC-10X3-3/4" | Plow bolt |
| 1J0962 | 3/4'UNC-10X4" | Plow bolt |
| 4F0253 | 3/4"UNC-10X4-1/2" | Plow bolt |
| 02091-11220 | 3/4"UNC-10X5" | Plow bolt |
| 2J3506 | 3/4"UNC-10 | nut |
| 5P8248 | 3/4" | washer |
| 5J4772 | 7/8"UNC-9X2-1/2 | Plow bolt |
| 6F0196 | 7/8"UNC-9X2-3/4 | Plow bolt |
| 5J2409 | 7/8"UNC-9X3" | Plow bolt |
| 8J2935 | 7/8"UNC-9X3-1/4" | Plow bolt |
| 2J2548 | 7/8"UNC-9X3-1/2 | Plow bolt |
| 02090-11483 | 7/8"UNC-9X3-3/4" | Plow bolt |
| 02090-11495 | 7/8"UNC-9X4" | Plow bolt |
| 2J5458 | 7/8"UNC-9X4-1/4" | Plow bolt |
| 1J0849 | 7/8"UNC-9X4-1/4" | Plow bolt |
| 175-71-11471 | 7/8"UNC-9X5" | Plow bolt |
| 2J3505 | 7/8"UNC-9 | nut |
| 5P8249 | 7/8" | washer |
| 1J5607 | 1"UNC-8X2-3/4" | Plow bolt |
| 4F4042 | 1"UNC-8X3" | Plow bolt |
| 4J9058 | 1"UNC-8X3-1/4" | Plow bolt |
| 4J9208 | 1"UNC-8X3-1/2" | Plow bolt |
| 1J4948 | 1"UNC-8X3-3/4" | Plow bolt |
| 8J2928 / 5P8136 | 1"UNC-8X4" | Plow bolt |
| 1J3527 | 1"UNC-8X4-1/2" | Plow bolt |
| 1J2034 | 1"UNC-8X5" | Plow bolt |
| 195-71-11473 | 1"UNC-8X6-1/2" | Plow bolt |
| 2J3507 | 1"UNC-8 | nut |
| 5p8250 | 1" | washer |
| 195-71-52320 | 1-1/8"UNC-7X3-3/4" | Plow bolt |
| 195-71-52330 | 1-1/8"UNC7X4-1/8" | Plow bolt |
| 4J5977 | 1-18"UNC-7 | nut |
| 3S1349 | 1-1/8" | washer |
| 8T9079 | 1-1/4"UNC-7X3-1/4" | Plow bolt |
| 6V6535 | 1-1/4""UNC-7X3-3/4" | Plow bolt |
| 5P8823 | 1-1/4"UNC-7X4" | Plow bolt |
| 5P8823 | 1-1/4"UNC-7X4-1/8" | Plow bolt |
| 6V8360 | 1-1/4"UNC-7X4-1/2" | Plow bolt |
| 5P8361 | 1-1/4"UNC-7X5" | Plow bolt |
| 3K9770 | 1-1/4"UNC-7 | nut |
| 4K0684 | 1-1/4" | washer |
| 198-71-21850 | 1-3/8"UNC-6X4-9/16" | Plow bolt |
| 198-71-21860 | 1-3/8"UNC-6X5-1/2" | Plow bolt |
| 198-71-21870 | 1-3/8"UNC-6X6-1/4" | Plow bolt |
| 198-71-21910 | 1-3/8"UNC-6 | hex nut |
| 198-71-21890 | 1-3/8" | washer |
| | | |
| Part number | Measurement | Description |
| 8H7504 | 1/2"UNF-20X38 | Track bolt |
| R24688 | 1/2"UNF-20X40 W | Track bolt |
| 2A3223 | 1/2"UNF-20X47 | Track bolt |
| 4K7038 | 9/16"UNF-18X42 | Track bolt |
| 7H3596 CR429 | 9/16"UNF-18X51 | Track bolt |
| 5P4684 CR3623 | 9/16"UNF-18x73 | Track bolt |
| 5A3187 | 9/16"unf-18x76 | Track bolt |
| CR3707 8U2703 | 5/8"UNF-18x46 | Track bolt |
| 7H3597 | 5/8"unf-18x51 | Track bolt |
| CR1251 | 5/8"unf-18x54 | Track bolt |
| 9G3110 AC226 | 5/8"unfx57B | Track bolt |
| 3T8601 CR4357 | 5/8"UNF-18x67 B | Track bolt |
| 9G8592 CR5573 | 5/8"unf-18x83 B | Track bolt |
| 5A4104 3P2274 | 5/8"unf-18x89 | Track bolt |
| 3T8580 | 5/8"unf-18x91 B | Track bolt |
| 7H3598 | 3/4"UNF-16X61 | Track bolt |
| 6V1792 CR4441 | 3/4"UNF-16X61 B | Track bolt |
| 1S8804 | 3/4"UNF-16x63 | Track bolt |
| 7F8619 CR331 | 3/4"UNF-16X70 | Track bolt |
| 1061642 | 3/4"UNF-16X75 B | Track bolt |
| 6V1793 CR4440 | 3/4"UNF-16X81 B | Track bolt |
| CR5444 1070719 | 3/4"UNF-16X99 B | Track bolt |
| 5A7524 1D1295 | 3/4"UNF-16X102 | Track bolt |
| 9S1838 CR3326 | 3/4"UNF-16X105 B | Track bolt |
| 2P9670 CR3119 | 3/4"UNF-16X112 | Track bolt |
| 6T1441 CR4699 | 3/4"UNF-16X124.5 B | Track bolt |
| 7H3599 9M7444 | 7/8"UNF-14x67 B | Track bolt |
| 316910R1 | 7/8"UNF-14x76 | Track bolt |
| 7T2748 | 7/8"unf-14x85 B | Track bolt |
| 6V1723 CR4135 | 7/8"UNF-14x89 B | Track bolt |
| 6V1724 CR4132 | 7/8"UNF-14x95 B | Track bolt |
| 9W9058 CR4789 | 7/8"UNF-14x115 B | Track bolt |
| 8S0395 CR2709 | 7/8:UNF-14x121 B | Track bolt |
| 6V1725 CR4133 | 7/8"UNF-14x127 B | Track bolt |
| 2M5657 9M7445 | 1"UNF-14X75 B | Track bolt |
| 3T6308 CR4029 | 1"UNF-14X84 B | Track bolt |
| 6T2638 CR4670 | 1"UNF-14X90 B | Track bolt |
| 6V1726 CR4036 | 1"UNF-14X101 B | Track bolt |
| 6V1727 CR3858 | 1"UNF-14x110 B | Track bolt |
| 7T2283 CR4669 | 1"UNF-14x123 B | Track bolt |
| 8S1723 CR2669 | 1"UNF-14x141 B | Track bolt |
| 6V1728 CR3859 | 1"UNF-14x148 B | Track bolt |
| 7T1000 | 1-1/8"UNF-12X96 B | Track bolt |
| 5P3968 | 1 1/8"unf-12X107 B | Track bolt |
| 7T0999 | 1-1/8"UNF-12x134 B | Track bolt |
| 7T0998 | 1-1/8"UNF-12x164 B | Track bolt |
| 6T8853 | 1 3/8"UNF-12x110 | Track bolt |
| 6I8648 | 1-3/8"unf-12x121 | Track bolt |
| 6T8521 CR5640 | 1-3/8"unf-12x153 | Track bolt |
| 6T8520 CR5639 | 1-3/8"unf-12x184 | Track bolt |
| 101-32-11210 | M12X1.5X40 | Track bolt |
| 205-32-21210 | M14X1.5X45 | Track bolt |
| 203-32-21220 | M14X1.5X56 | Track bolt |
| 205-32-51120 | M16X1.5X50 | Track bolt |
| 79039443 | M18X1.5X55F | Track bolt |
| 79004259 | M18X1.5X60 | Track bolt |
| 9W3619 | M20X1.5X55D | Track bolt |
| 79035814 | M20X1.5X62F | Track bolt |
| 6Y0846 | M20X1.5X63 | Track bolt |
| 71401192 | M20X1.5X65F | Track bolt |
| 207-32-51210 | M22X1.5X56F | Track bolt |
| 71428357 | M22X1.5X62F | Track bolt |
| 6Y9024 | M22X1.5X67D | Track bolt |
| 76007851 | M22X1.5X70F | Track bolt |
| 208-32-51210 | M24X1.5X65F | Track bolt |
| 21M-32-11260 | M24X1.5X72 | Track bolt |
| 175-35-11210 | M24X1.5X78 | Track bolt |
| 195-32-11210 | M27X1.5X82 | Track bolt |
| 6Y7432 | M27X1.5X90 | Track bolt |
| 195-32-41210 | M27x2.0x93 | Track bolt |

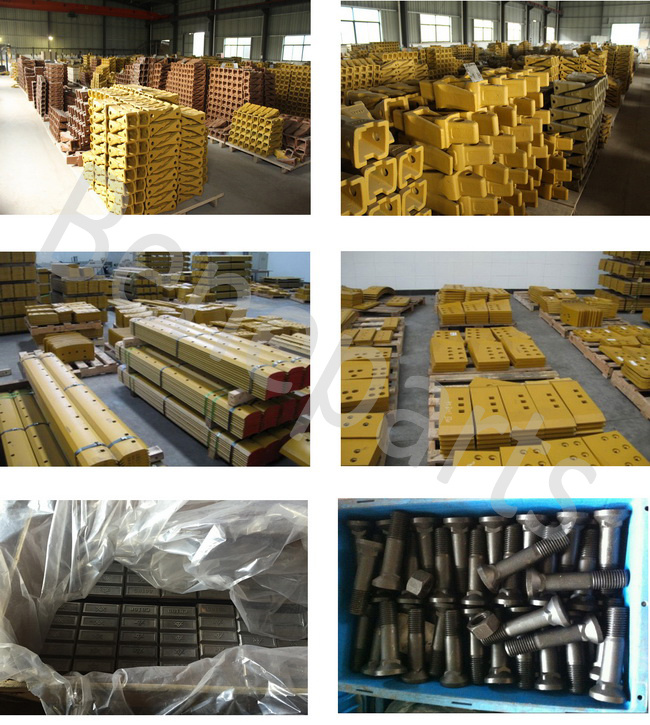

4. Our warehouse:

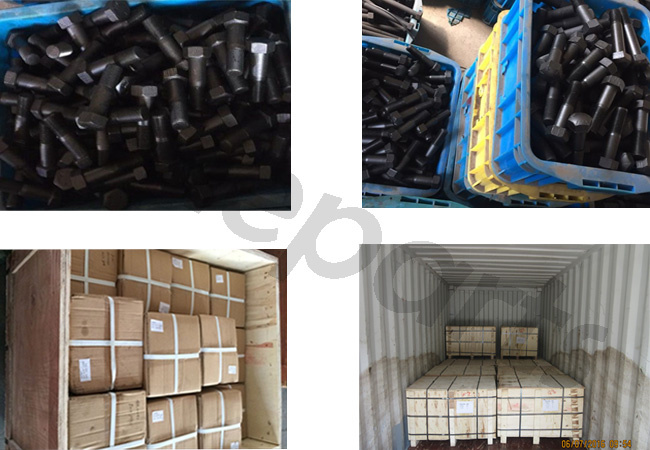

5. Our Package:
6.Company informationNingbo Beneparts Machinery co., Ltd as your reliable G.E.T parts supplier, offering full range of replacement parts suitable for all kinds of earthmoving machines which apply to mining, construction, agriculture etc. Like Excavator, Bulldozer, Loader, Backhoe, Scraper, Crusher and so on. The replacement parts that we supply including casting parts like bucket teeth, adapter, lip shroud, protector, ripper shank etc. and forged parts like forged bucket teeth, cutting edge, grader blades, segment, end bit etc. and also wear-resistant parts like chocky bars, wear buttons, chromium combined wear plate etc. and matched parts like pin, washer, bolts and nuts etc.. Our parts cover machine brands Caterpillar, Komatsu, Volvo Doosan, Daewoo, Hyundai, Case, JCB, Kobelco, Liebherr John Deere etc.
Beneparts has a very strong sales team and firmly cooperated manufacturer with high-tech and focus on quality with more than 28 years experience.
Our advantages are four fold, our:
1.strong technical team, and we have the ability to formulate materials to meetthe specific needs of our customer's projects.
2.Perfect quality monitoring system, and full range of advanced facilities, like Component analysis machine, Impact Machine, Tensile Strength machine etc.
3. Rich experience to do OEM/ODM business, we can develop items as per drawings and samples if you have specific requirement.
4. Efficient management, we can short delivery time and we have good after sale service which keep long term business cooperation with our customers.
Our commitment to you is always providing quick, convenient, effective customer service.
Look forward to meeting you!
Ningbo Beneparts Machinery is a young company armed with hard-won experience from years of success in the G. E. T. Industry and new-kid-on-the-block enthusiasm. We have a solid reputation as being a company that can deliver what you need to the specifications that you demand. We are proud of our ability to deliver your requirements when and where you need them, and most importantly, produced at the highest quality levels. Coupled with competitive prices we believe that Ningbo Beneparts Machinery has a winning formula to be a "supplier of choice. "
Our extensive services include, but are not limited to, the following:
· On hand inventory of over 6000 Ground Engaging Tools - 500 that were developed just last year
· The capability to develop any part according to your drawings or samples
· 3D designs to ensure accurate fitment or new tooling within 15 - 20 days
· Prompt delivery, usually within 30 days
· A one-year, full replacement warranty in the rare event of manufacturing defects or breakage
· Our guarantee that we will only use the best materials and chemical components
· Electric and/or gas furnaces equipped with precise electronic temperature controls for state of the art heat treatment
· Sand and lost wax processes with the capacity to produce parts ranging in size from 0.5 KG to 2000 KG
· The ability to validate tensile strength, yield strength, hardness values, and microstructures
· Stellar after sales service
· A world-wide network of clients and suppliers that ensures an excellent working relationship
AND...
· The dedication to produce and supply superior quality parts coupled with our energy and passion to be the best.
We are only a "click" away on the internet or by email. We will do our utmost to make even the most complicated projects happen for you. We will double or triple check all specifications and quality standards, pack, and deliver your finished parts to wherever you need them to be. GIVE US A TRY
Ningbo Beneparts Machinery.
At your service.
