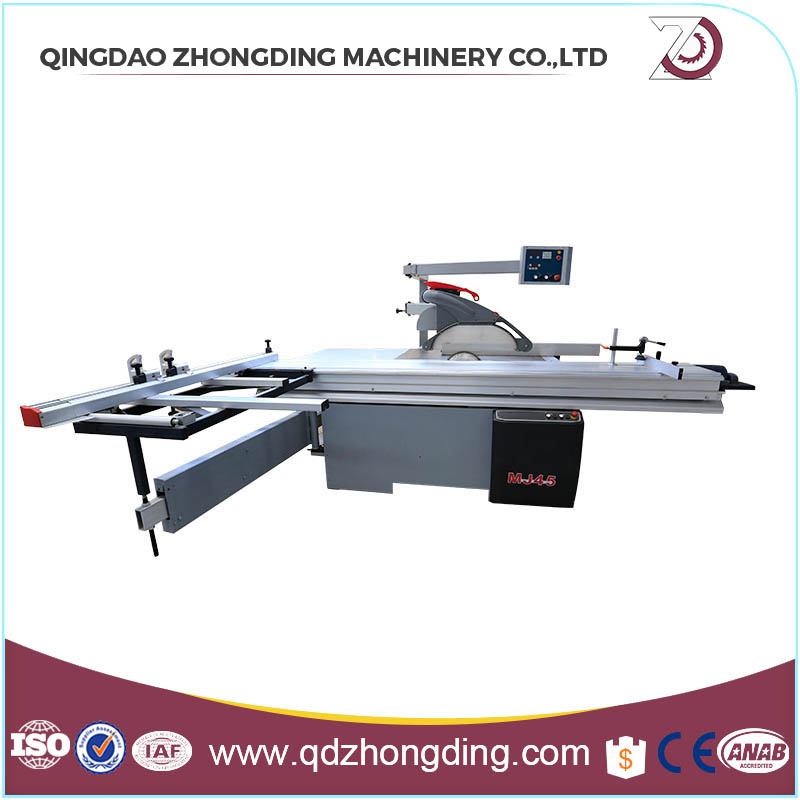

Mj45A Horizontal Sliding Precision Table Panel Saw

Mj45A Horizontal Sliding Precision Table Panel Saw
Price: US $ 2000-5000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: MJ45A
Length Of Sliding Table: 3200mm
Motor Power: 5.5 Kw
Cutting Width: 1000or1300mm
Main Spindle Speed: 3000/4000/5000r.p.m
Max Cutting Height: 125mm
Scoring Saw Spindle Diameter: 20mm
Overall Dimension: 3250*3150*900mm
Type: Table Panel Saw
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Semiautomatic
Precision: Precision
Certification: ISO

Product Description

PANEL SAW MJ45A
TypeMJ45A
 Electric main saw blade lifting and angle adjustment
 Control panel is equal level with line of sight
Length of sliding table3200 mm
 Electric adjustment saddle
Cutting width1000 or 1300 mm
3200mmHorizontal baffle plate extended to 3200 mm
Motor power5.5 kw(7.5HP)
(Main spindle speed)3000/4000/5000 r.p.m
Scoring saw spindle diameter20 mm
Scoring saw power1.1 kw
Overall dimesion3250*3150*900 mm
Feature:
  1. It is adapted to ergonomic requirements. The special operate is that: the control board of MJ45A sliding table saw can be adjusted to the equal height with line of the sight to make the operation comfortable. The saddle is electrically adjustable.
  2. Control panel: The various operation on the control panel is clear at a glance. You just need to press the button gently then it will adjust the height and the angle of saw blade easily. The numerical value of angle is visible on the display.

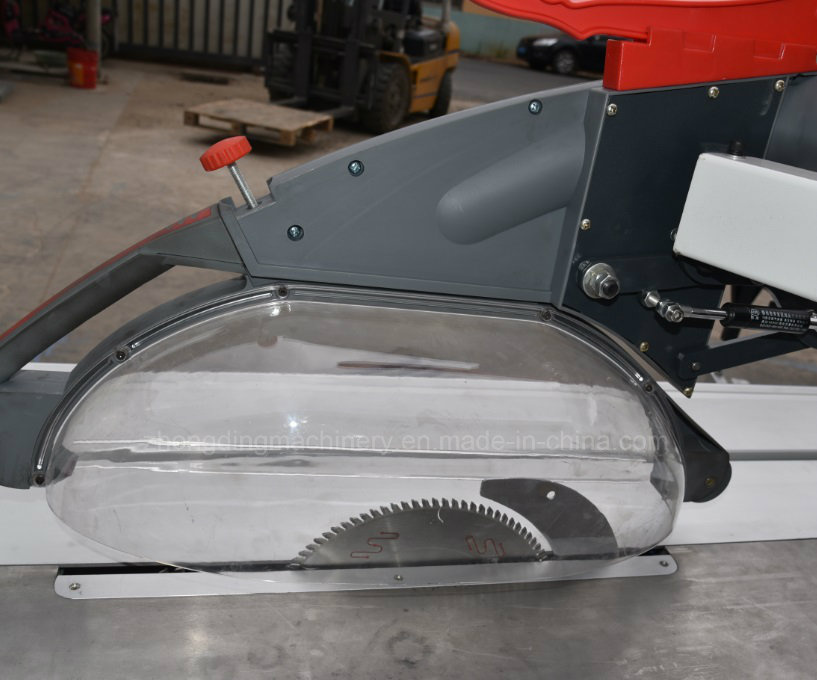

  3. Dust hood: It is convincing to use the big dust hood with fluid mechanics optimization structure. Dust hood apply to Max. Cutting height 125mm (without relationship to scoring saw blade) and can swing to the side totally.
  4. The electric saddle:  Five- positioning of high precision drive systems without regular  maintenance is like a built-in motor protected by aluminum profile.  There is emergency power-off function and then excluded squeezed danger.

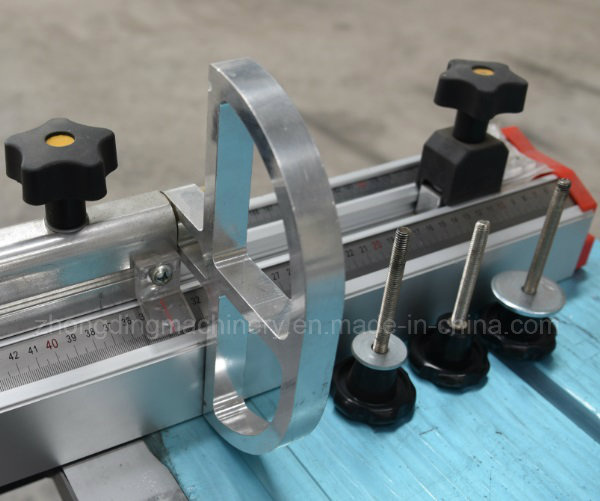

  5. Horizontal baffle plate: Precise vertical angle cutting by firm rung. All of adjustment value is available in the strip of rung. The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.
The saw blade lifting is electrical controlled with titling digital display to make the operation

Product details:













Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100

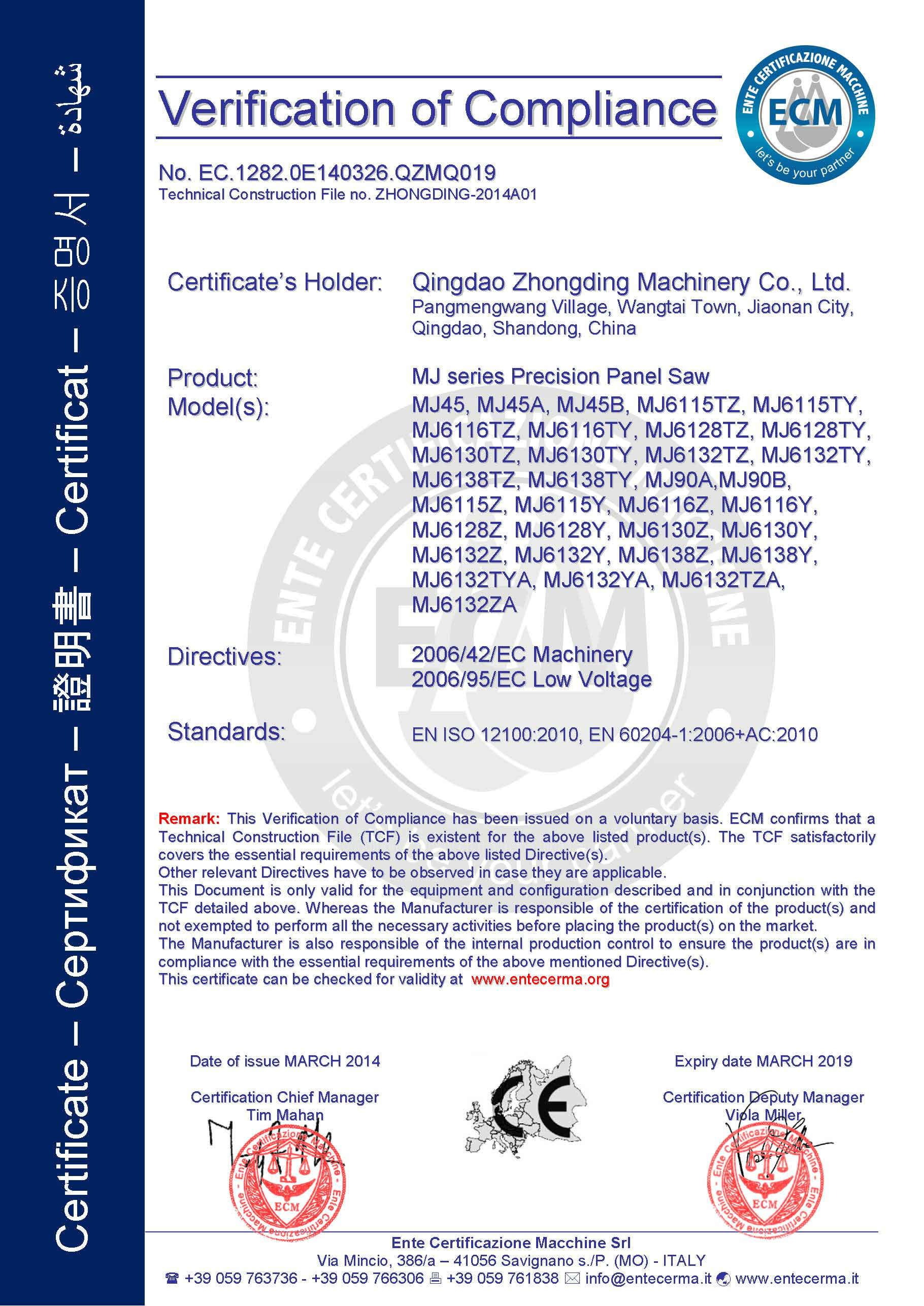

8) Certificate: CE&ISO 9000 Certificate


Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.



Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.

Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.

We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.

Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
