| Prod Model: |
MJ6116TZ |
| Voltage Condition: |
220V/380V/415V/440V etc ; Single Phase/Three Phase |
| Hertz: |
50Hz or 60Hz |
| Saw Blade Tilting: |
0-45 Degree |
| Optional Cutting Length: |
1600mm, 2200mm, 2800mm, 3000mm, 3200mm, 3800mm |
| Motor Power: |
4kw/0.75kw |
| Saw Blade Diameter: |
300mm/120mm |
| Sliding Table Size: |
1600/375(mm) |
| Optional Accessories: |
European Dust Collector/LED Readout/Lubrication |
| Warranty Period: |
12 Months |
| Weight: |
550kgs |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Certification: |
ISO |

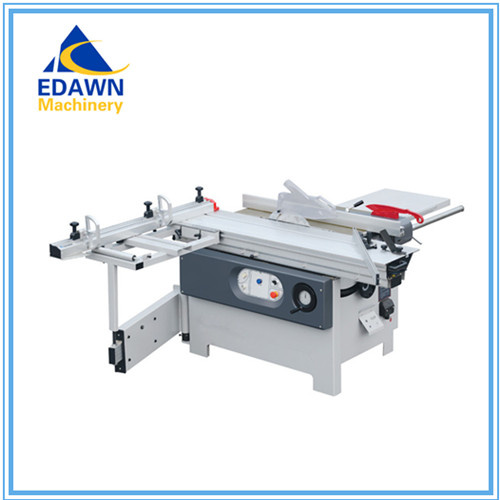

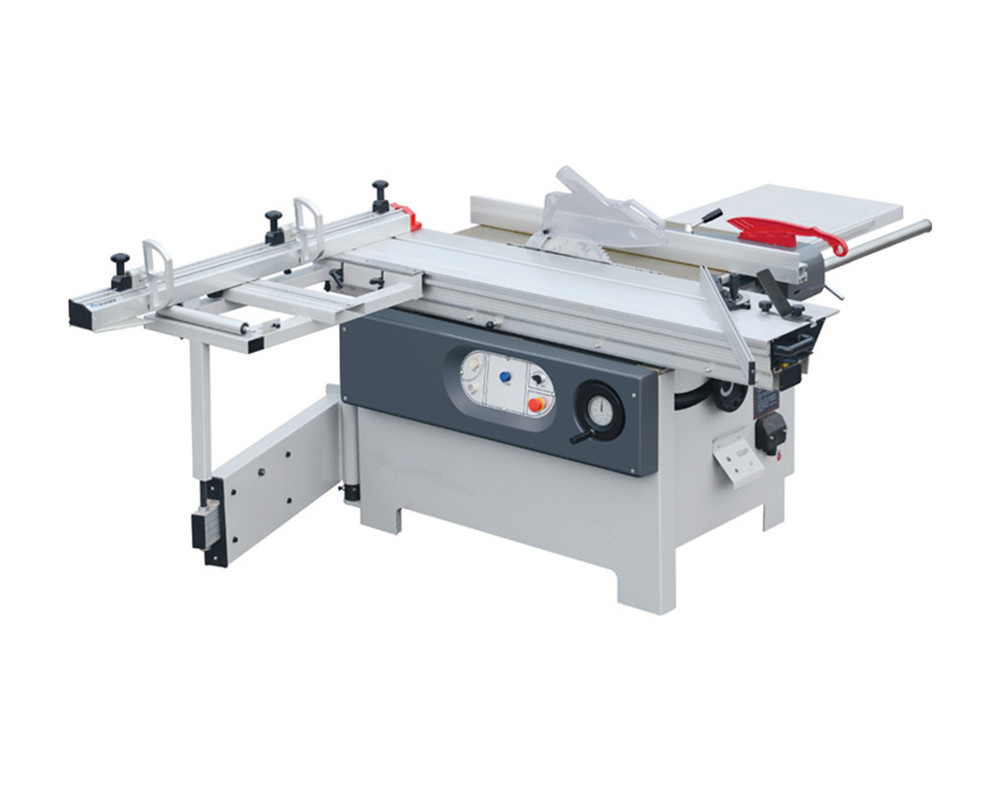

Product Description
Product DescriptionBasic version:| 1, Manual titling 45 degree/lifting |
| 2, Use of conventional structure |
| 3, With auxiliary working table |
| 4, Guide shaft spindle, the diameter is 40mm |
| 5, With standard protection hood |
| 6, With manual eccentric swage/press board |
| 7, With saw blade(one set) |
| 8, Voltage condition: 220V/380V/415V etc; single phase/three phase ; 50Hz or 60Hz |
| 9, Max . motor power is 3kw(220V/single phase/60Hz) |
Main technical parameter:| Model | MJ6116TZ |
| Dimensions sliding table | 1600/375mm |
| Cutting length | 1600mm |
| Cutting width | 1250 |
| Saw blade | 250-300mm |
| Cutting height | 80-120mm |
| Diameter of guide shaft spindle | 40mm |
| Max. working height | 55-90mm |
| Speed of main saw spindle | 4000/6000 rpm |
| Spindle diameter | 30mm |
| Tilling saw blade | 45-90 degree |
| Main motor | 4kw |
| Scriber specification | 120mm |
| Non-load speed | 8000rpm |
| Scoring spindle diameter | 20mm |
| Scoring motor power | 0.75kw |
| Weight | 550kg |
| Dimension | 1680/2150/900mm |
Optional Accessories:| 1, European dust collector |
| 2, Single bag dust collector |
| 3, Double bags dust collector |
| 4, FREUD saw blade |
| 5, LED readout |
| 6, Lubrication pump |
| 7, Magnetic fence |
| 8, Pneumatic eccentric swage |
| 9, Air compressor |
