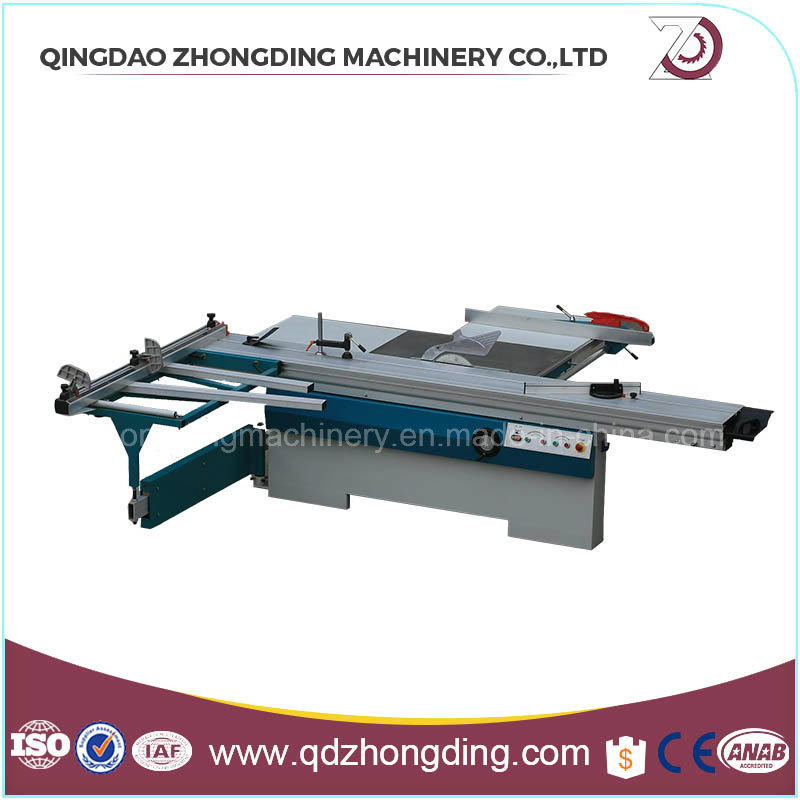

Mj6130 Horizontal Wood Cutting Machine Sliding Panel Table Saw
| Price: |
US $ 2000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6130 |
| Dimension Of Sliding Table: |
3000*375mm |
| Main Saw Motor Power: |
5.5 Kw |
| Tilting Saw Group: |
0-45° |
| Speed Of Main Saw Spindle: |
4000/6000r.p.m |
| Diameter Of Main Saw Blade: |
300mm |
| Scoring Saw Spindle Diameter: |
20mm |
| Max Cutting Height(90°): |
80mm |
| Diameter Of Scoring Saw Blade: |
120mm |
| Speed Of Scoring Saw Spindle: |
8000r.p.m |
| Scoring Saw Motor Power: |
1.1kw |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
PANEL SAW MJ6130| Type | MJ6130 |
| Dimension of sliding table | 3000x375 mm |
| Gross cut capacity | 3000 mm |
| Width of cut between saw blade and rip fence | 1250 mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 300 mm |
| Max cutting height (90°) | 80 mm |
| Speed of main saw spindle | 4000/6000 r.p.m |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30 mm |
| Diameter of scoring saw blade | 120 mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 20 mm |
| Weight | 750 KGS |
| Overall dimension | 3050x3150x900 mm |
Feature:- Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
- Moveable table guide track is chromium steel bar structure, exact and durable
- The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
- With oxidation treatment, the sliding table surface is beautiful and durable
- The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise.

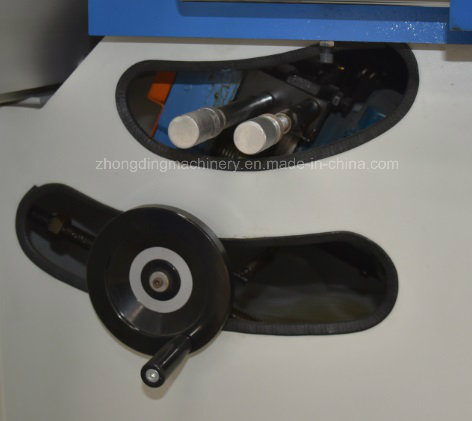

The saw blade lifting is electrical controlled with titling digital display to make the operation Product details:
Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100

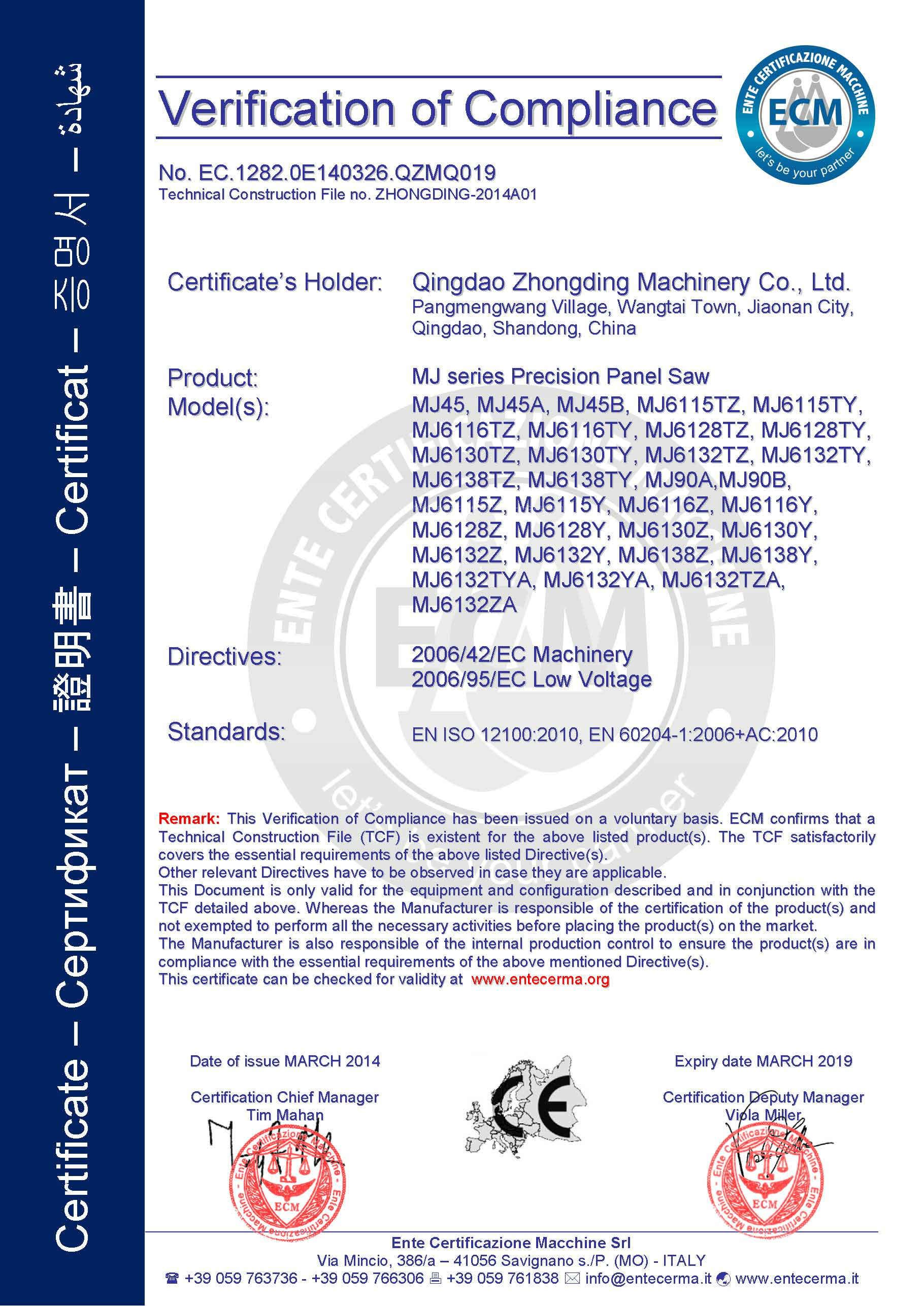

8) Certificate: CE&ISO 9000 CertificateQingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
