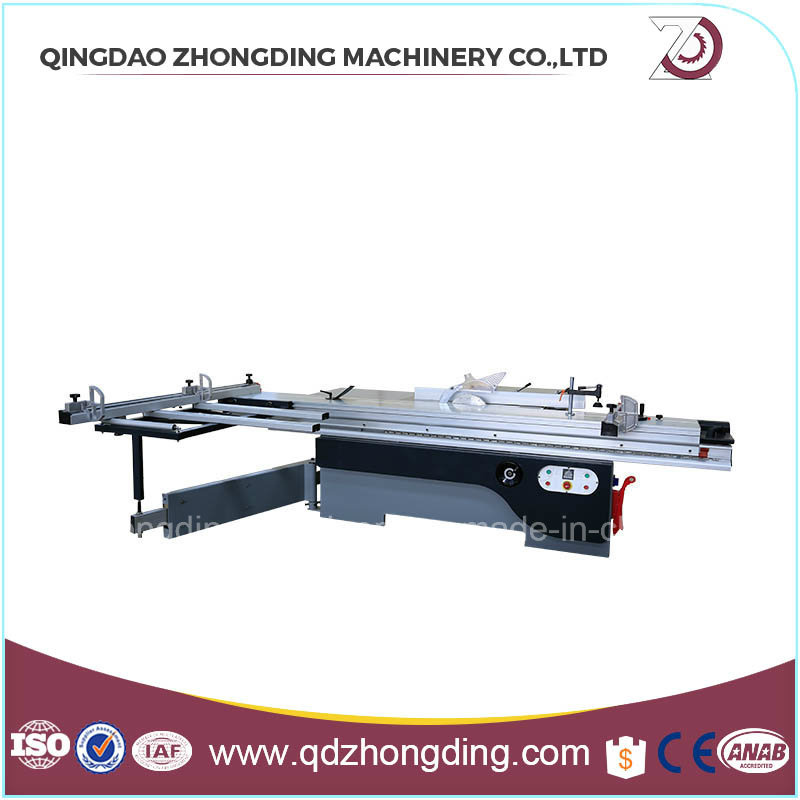

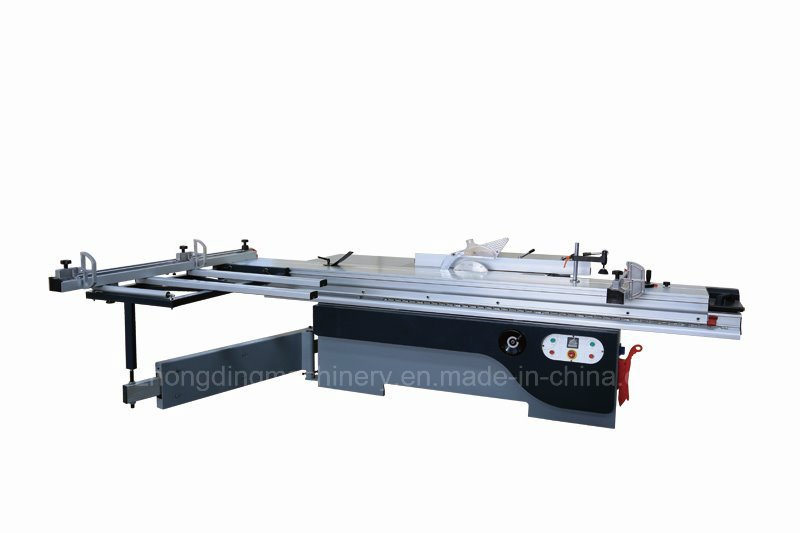

Mj6132ya Precision Woodworking Sliding Table Panel Saw
| Price: |
US $ 2000-5000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
MJ6132YA |
| Dimension Of Sliding Table: |
3200*375mm |
| Main Saw Motor Power: |
5.5 Kw |
| Tilting Saw Group: |
0-45° |
| Speed Of Main Saw Spindle: |
4000/6000r.p.m |
| Diameter Of Main Saw Blade: |
300mm |
| Scoring Saw Spindle Diameter: |
20mm |
| Max Cutting Height(90°): |
80mm |
| Diameter Of Scoring Saw Blade: |
120mm |
| Speed Of Scoring Saw Spindle: |
8000r.p.m |
| Scoring Saw Motor Power: |
1.1kw |
| Type: |
Table Panel Saw |
| Layout: |
Horizontal |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Semiautomatic |
| Precision: |
Precision |
| Certification: |
ISO |
Product Description
PANEL SAW MJ6132YA | Type | MJ6132YA |
| Dimension of sliding table | 3200x375 mm |
| Gross cut capacity | 3200 mm |
| Width of cut between saw blade and rip fence | 1250 mm |
| Tilting saw group | 0-45° |
| Diameter of main saw blade | 300 mm |
| Max cutting height (90°) | 80 mm |
| Speed of main saw spindle | 4000/6000 r.p.m |
| Main saw motor power | 5.5 kw |
| Main spindle diameter | 30 mm |
| Diameter of scoring saw blade | 120 mm |
| Speed of scoring saw spindle | 8000 r.p.m |
| Scoring saw motor power | 1.1 kw |
| Scoring saw spindle diameter | 20 mm |
| Weight | 780 KGS |
| Overall dimension | 3250x3150x900 mm |
Feature:- Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
- Moveable table guide track is chromium steel bar structure, exact and durable
- The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
- With oxidation treatment, the sliding table surface is beautiful and durable
- The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise.
The saw blade lifting is electrical controlled with titling digital display to make the operation Product details:
Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100

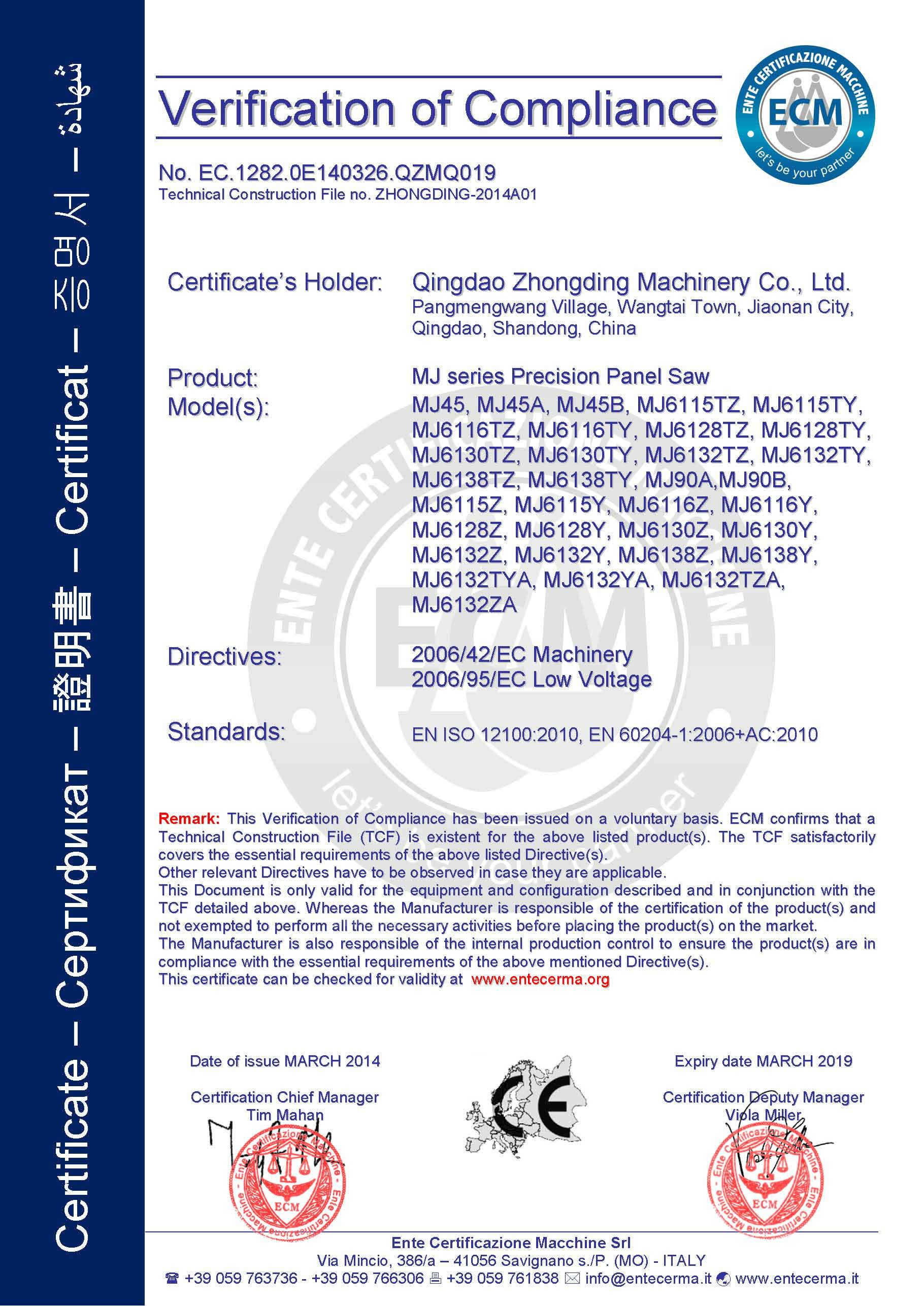

8) Certificate: CE&ISO 9000 CertificateQingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
