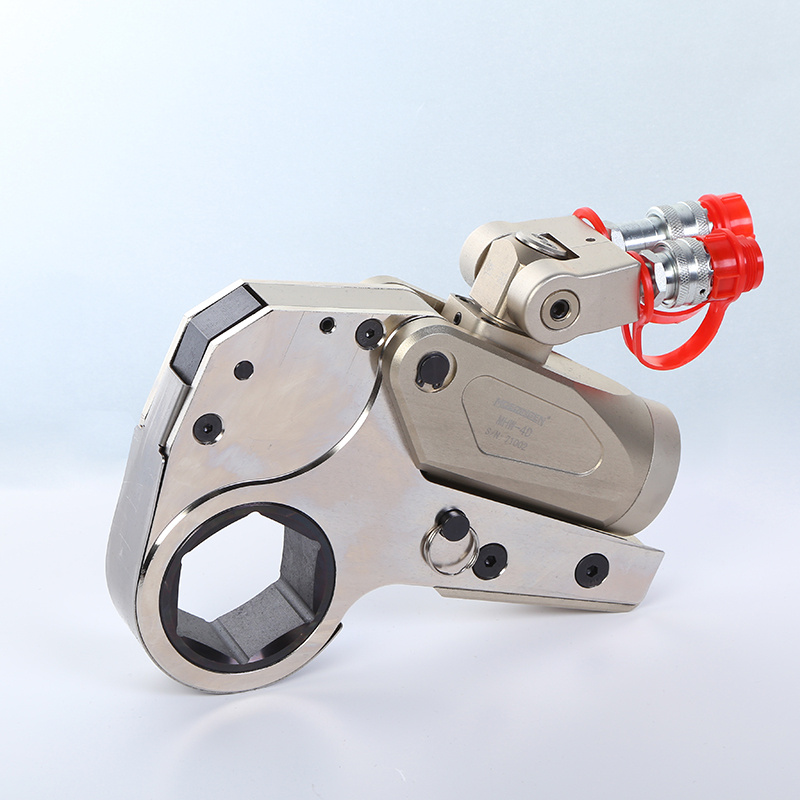

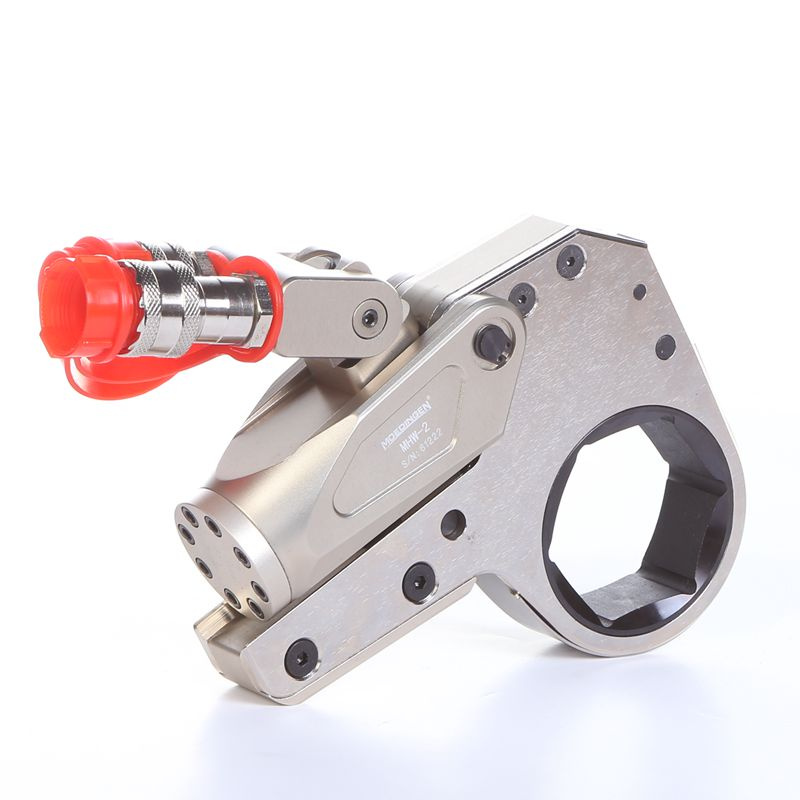

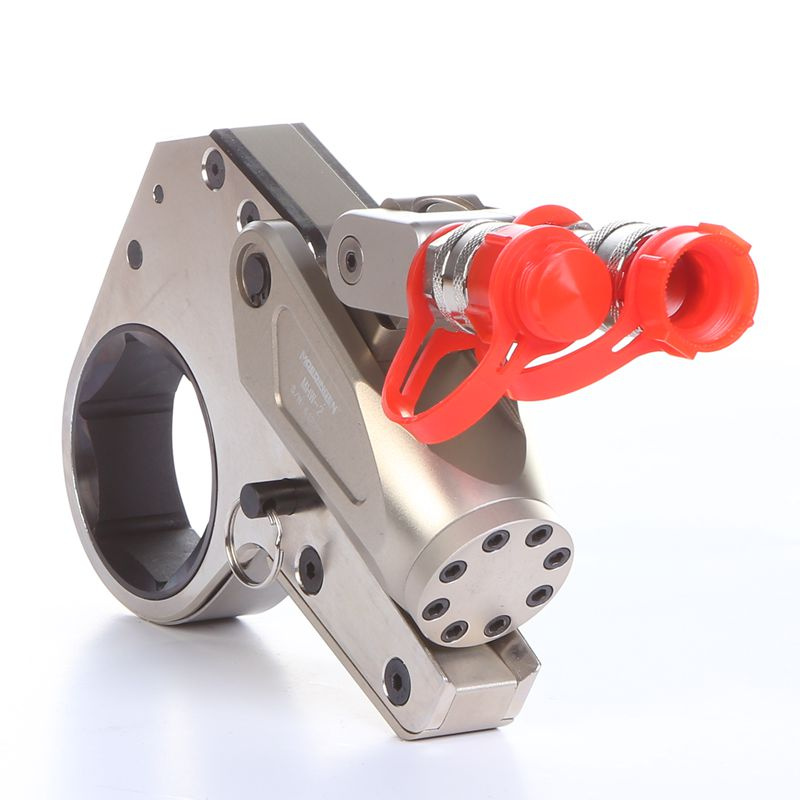

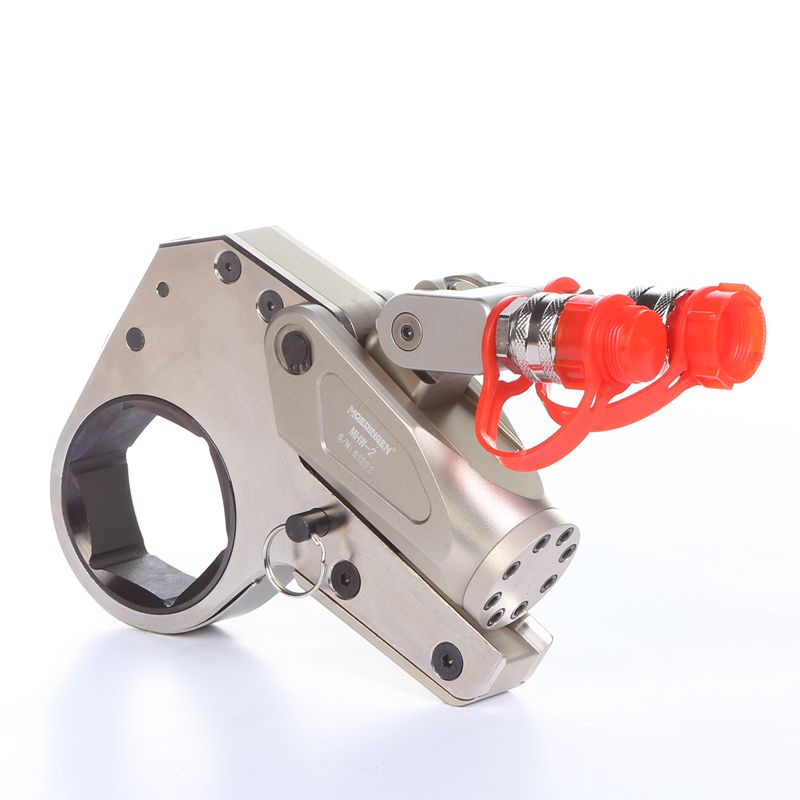

Moedingen Limited Clearance Hydraulic Tools 4 Low

Prod Model:	MHW-4
Material:	Alloy Steel
Screw Size:	34-65mm; 70-80mm
Max Working Pressure:	700 Bar
Torque Accuracy:	±3%
Repeatability:	±5%
Cylinder Weight:	2kg
Link Weight:	4.6kgs
Application For Wrench:	Natural Gas; Steel; Wind Industry

Product Description

Moedingen Limited Clearance Hydraulic Tools 4 Low

Product Features:

1. Al-Ti alloy integrated machine has high strength, high tenacity with light weight.
2. The 360º×180º rotating oil connection has no limitation in used space and is convenient to be operated.
3. The actuating shaft is released by torque and can fast switch between screwing up and dismantling.
4. The hydraulic piston and power head have a small shape, compact structure and small operation radius.
5. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
6. The reactive force is on one straight line, which can decrease the inner torque abrasion.
7. The constant torque output provides the high precision for wrench in the whole working process.
8. The maintenance is simple and does not need the special tools.
9. The precise ratchet wheel is used in the inside of the wrench, with the precision up to ±3%.

Low profile hexagon torque wrenches for petroleum industry tools

Product Features:

1. Al-Ti alloy integrated machine has high strength, high tenacity with light weight.
2. The 360º×180º rotating oil connection has no limitation in used space and is convenient to be operated.
3. The actuating shaft is released by torque and can fast switch between screwing up and dismantling.
4. The hydraulic piston and power head have a small shape, compact structure and small operation radius.
5. The nut rotation angle in single operation is large and the hydraulic piston has a quick return stroke. The work efficiency is high.
6. The reactive force is on one straight line, which can decrease the inner torque abrasion.
7. The constant torque output provides the high precision for wrench in the whole working process.
8. The maintenance is simple and does not need the special tools.
9. The precise ratchet wheel is used in the inside of the wrench, with the precision up to ±3%.


MHW Series Torque Conversion Chart
Moedel NO.			MHW-2		MHW-4		MHW-8		MHW-14	MHW-30
Screw Size			15-55	60	34-65	70-80	41-95	100-105	50-117	110-155	160-175
Mpa	bar	psi	N.m	N.m	N.m	N.m	N.m	N.m	N.m	N.m	N.m
7	70	1015	232	241	585	647	1094	1177	1852	4188	4459
8	80	1160	265	275	669	739	1250	1345	2117	4786	5096
9	90	1305	299	310	752	832	1407	1513	2381	5385	5733
10	100	1450	332	344	836	924	1563	1682	2646	5983	6370
11	110	1595	365	379	920	1017	1719	1850	2910	6581	7007
12	120	1740	398	413	1003	1109	1876	2018	3175	7180	7644
13	130	1885	432	448	1087	1202	2032	2186	3440	7778	8281
14	140	2030	465	482	1171	1294	2188	2354	3704	8376	8918
15	150	2175	498	517	1255	1387	2344	2523	3969	8975	9555
16	160	2320	531	551	1338	1479	2501	2691	4233	9573	10192
17	170	2465	565	586	1422	1572	2657	2859	4498	10171	10829
18	180	2610	598	620	1506	1664	2813	3027	4762	10769	11467
19	190	2755	631	655	1589	1757	2970	3195	5027	11368	12104
20	200	2900	665	689	1673	1849	3126	3364	5292	11966	12741
21	210	3045	698	724	1757	1942	3282	3532	5556	12564	13378
22	220	3190	731	758	1840	2043	3439	3700	5821	13163	14015
23	230	3335	764	793	1924	2127	3595	3868	6085	13761	14652
24	240	3480	798	827	2008	2219	3751	4037	6350	14359	15289
25	250	3625	831	862	2092	2312	3907	4205	6615	14958	15926
26	260	3770	864	896	2175	2404	4064	4373	6879	15556	16563
27	270	3915	897	931	2259	2497	4220	4541	7144	16154	17200
28	280	4060	931	965	2343	2589	4376	4709	7408	16753	17837
29	290	4205	964	1000	2426	2682	4533	4878	7673	17351	18474
30	300	4350	997	1034	2510	2774	4689	5046	7938	17949	19111
31	310	4495	1030	1069	2594	2867	4845	5214	8202	18548	19748
32	320	4640	1064	1103	2677	2959	5002	5382	8467	19146	20385
33	330	4785	1097	1138	2761	3052	5158	5550	8731	19744	21022
34	340	4930	1130	1172	2845	3144	5314	5719	8996	20343	21659
35	350	5075	1164	1207	2929	3237	5470	5887	9260	20941	22296
36	360	5220	1197	1241	3012	3329	5627	6055	9525	21539	22933
37	370	5365	1230	1276	3096	3422	5783	6223	9790	22138	23570
38	380	5510	1263	1310	3180	3514	5939	6391	10054	22736	24207
39	390	5655	1297	1345	3263	3607	6096	6560	10319	23334	24845
40	400	5800	1330	1379	3347	3699	6252	6728	10583	23932	25482
41	410	5945	1363	1414	3431	3792	6408	6896	10848	24531	26119
42	420	6090	1396	1448	3514	3884	6565	7064	11113	25129	26756
43	430	6235	1430	1483	3598	3977	6721	7232	11377	25727	27393
44	440	6380	1463	1517	3682	4069	6877	7401	11642	26326	28030
45	450	6525	1496	1552	3766	4162	7033	7569	11906	26924	28667
46	460	6670	1530	1586	3849	4254	7190	7737	12171	27522	29304
47	470	6815	1563	1621	3933	4347	9346	7905	12435	28121	29941
48	480	6960	1596	1655	4017	4439	7502	8073	12700	28719	30578
49	490	7105	1629	1690	4100	4532	7659	8242	12965	29317	31215
50	500	7250	1663	1724	4184	4624	7815	8410	13229	29916	31852
51	510	7395	1696	1759	4268	4717	7971	8578	13494	30514	32489
52	520	7540	1729	1793	4351	4809	8128	8746	13758	31112	33126
53	530	7685	1762	1828	4435	4902	8284	8914	14023	31711	33763
54	540	7830	1796	1862	4519	4994	8440	9083	14288	32309	34400
55	550	7975	1829	1897	4603	5087	8596	9251	14552	32907	35037
56	560	8120	1862	1931	4686	5179	8753	9419	14817	33506	35674
57	570	8265	1895	1966	4770	5272	8909	9587	15081	34104	36311
58	580	8410	1929	2000	4854	5364	9065	9756	15346	34702	36948
59	590	8555	1962	2035	4937	5457	9222	9924	15611	35301	37585
60	600	8700	1995	2069	5021	5549	9378	10092	15875	35899	38223
61	610	8845	2029	2104	5105	5642	9534	10260	16140	36497	38860
62	620	8990	2062	2138	5188	5734	9691	10428	16404	37095	39497
63	630	9135	2095	2173	5272	5827	9847	10597	16669	37694	40134
64	640	9280	2128	2207	5356	5919	10003	10765	16933	38292	40771
65	650	9425	2162	2242	5440	6012	10159	10933	17198	38890	41408
66	660	9570	2195	2276	5523	6104	10316	11101	17463	39489	42045
67	670	9715	2228	2311	5607	6197	10472	11269	17727	40087	42682
68	680	9860	2261	2345	5691	6289	10628	11438	17992	40685	43319
69	690	10005	2295	2380	5774	6382	10785	11606	18256	41284	43956
70	700	10150	2328	2414	5858	6474	10941	11774	18521	41882	44593
