| Prod Model: |
PT122M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Glasshardware (PT122m) |
| Shape: |
Retangle |
| MOQ: |
100PCS |
| Surface Fitting: |
SSS/Pss/Silver |
| Surface Finishing: |
Siliver |
Product Description
Product Description

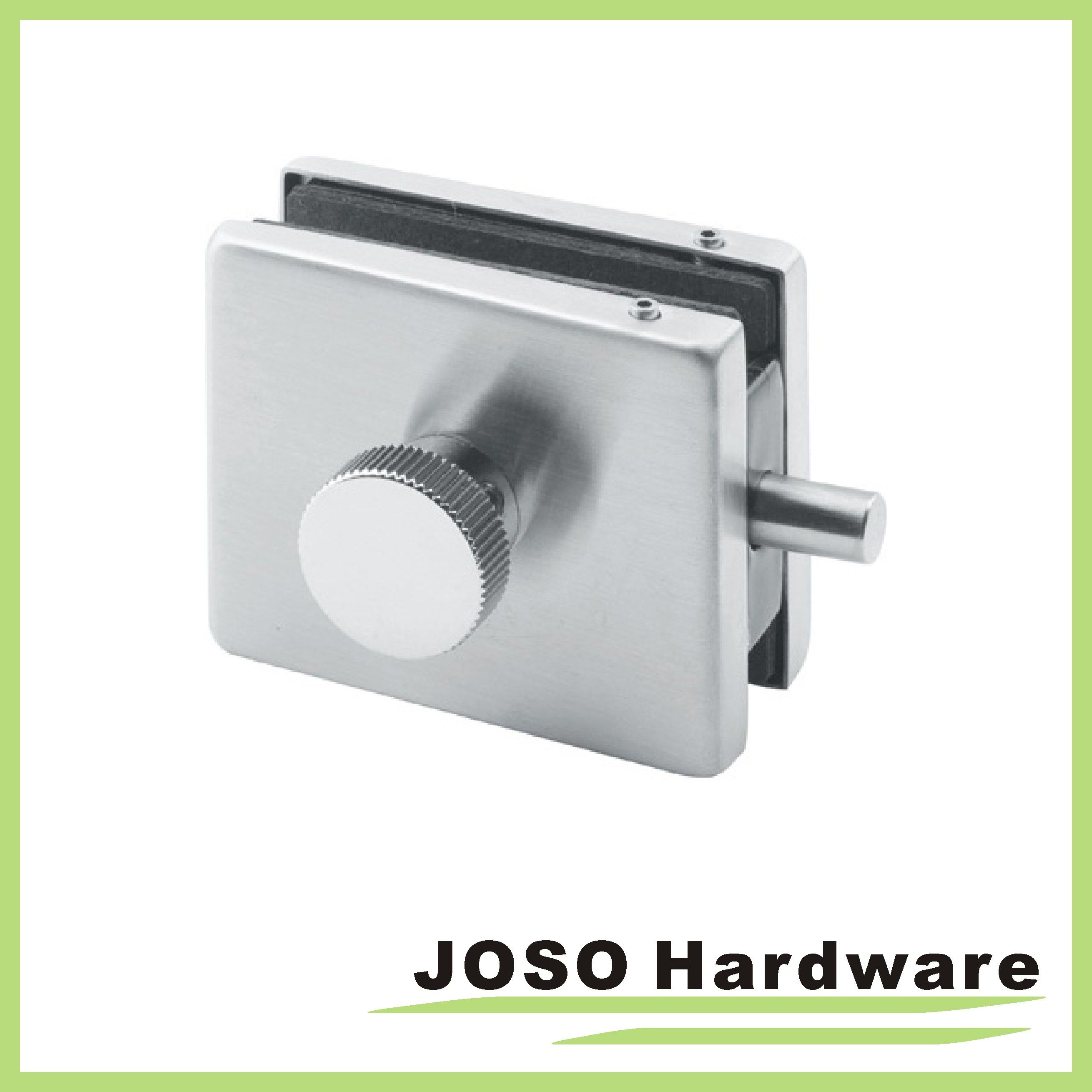

Item NO.: morden glass door big lock door patch glass hardware(PT122m)
Specifications
Handing | Suitable for left and right hand door (double acting). |
| Material | Cover | 304SUS | Polish(PSS) |
| Satin(SSS) |
| Aluminium | Silver |
| Body | Cast aluminium | Black |
| Includes | Patch fitting, allen key, floor strike, mounting hardware, Schlage 'C' cylinder, and three (3) keys |
| Installation | Clamp fixing, concealed with hexagonal socket screws |
| Notes | These fittings are not for use with Laminated Glass. |
Additional Product Information:
The following guidelines are to be used when making a door using this hardware:
*Maximum Height: 102" (2591 mm)
*Maximum Weight: 194 Lbs. (88 kg)
*Maximum Width: 42" (1092 mm)
*Suitable for common glass thicknesses ( 10-12 mm)
*If the door exceeds any of these limitations, full door rails should be used.
COMES WITH:
*Template and Instructions
Joso Patch Fittings
*With its broad range of options and configurations, Joso Universal Patch fittings are ideal for almost any design. Tempered glass assemblies are provided with fixed parts in a variety of arrangements - with corner fittings or fin fittings at different angles, and with double or single-action doors in single-leaf or double-leaf designs. Universal fittings are supplied standard with gaskets to suit 3/8"(10mm) and 1/2"(12mm) glass.
Joso Patch fittings benefits for the architect/designer
*Joso fittings give the architect or designer a wide variety of creative options for expression with tempered glass - either internally or externally.
Joso Patch fittings product features
Broad range of options and configurations |
| Based on a modular system |
| Suitable for common glass thicknesses |
| Matching range of locks |
| Reliability built in |
