| Prod Model: |
DFQ-200W |
| Application: |
Water Well, Blast Hole, Geothermal Hole, etc |
| Max Drilling Depth: |
200m |
| Fully Hydraulic: |
Yes |
| Drilling Caliber: |
105-203mm |
| Weight: |
5200 Kg |
| Power: |
50kw |
| Gas Consumption: |
10~24 M3/Min |
| Apply To Rock Hardness: |
F=6-12 |
| Qualification: |
BV, SGS |
| Work Pressure: |
1.05-2.0 MPa |
| Usage: |
Blast Hole, Geothermal Hole |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |
| Power Type: |
Diesel or Electric |
Product Description

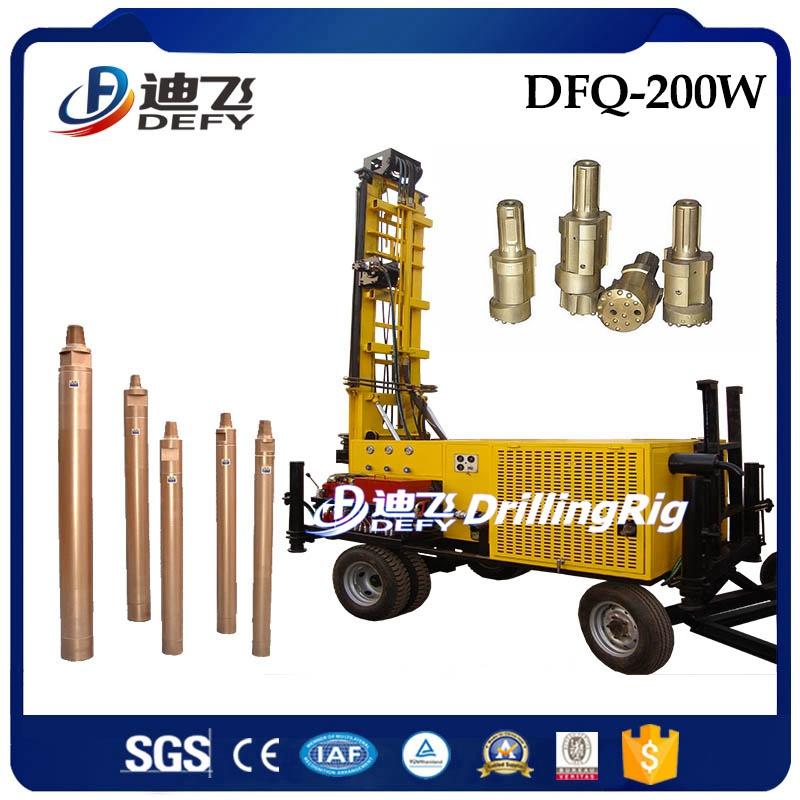

most hot sale in Namibia air pressure dth hammer drill
Product Introduction
DFQ-200W air pressure dth hammer drill equipped with diesel motor, which could provide powerful driving force to run the hydraulic system and other parts. It is suitable for water well, blast hole, borehole, geothermal hole, foundation hole and other drilling work. This machine can drill for 200m depth at the caliber of 105-203mm. The machine is trailer mounted, which makes the machine more convenient to transport. The 4 hydraulic strong support legs ensure the great stability and less labor needed in drilling work.
We also ungrade the machine according to our research and the users' feedback.
All these features ensure the high efficiency and good performance of drilling work. The higher efficiency, the more profit you can earn.
Features.
1.HIgh quality dth hammer drill bits equipped, long lifetime and more profit you can earn.
2.Trailer mounted, easily to move around or transportation.
3.Four strong hydraulic support legs provide high stability in drilling.
4.Integrated hydraulic control drilling tower, no need to install before drilling.
5.Other functional updates(Hoist, arc welding machine, or others customized)
Technical Parameter
| No. | Item | DFQ-200W |
| 1 | Drilling caliber | Φ105-203mm |
| 2 | Max. drilling depth | 200m |
| 3 | Work pressure | 1.05-2.0 MPa |
| 4 | Gas consumption | 10-24 m³/min |
| 5 | Impacter | DHD350/360 |
| 6 | Apply to rock hardness | f=6-12 |
| 7 | Power | 50KW |
| 8 | Rotary torque | 2200N.m |
| 9 | Weight | 5200 Kg |
| 10 | Dimension | 3500*1770*2300mm |
Warranty:
All accessories of our machinery is available at Factory-price all Year around. We always do our best to solve our customers' worries.
Contact Information:
As a professional drilling equipment manufacture, we provide all the solutions you need, the professional drill machine, drill parts or just professional suggestion, you can send us an email and we will respond and offer you Complete set of Drilling Machine Solutions as per your requirements.
