| Prod Model: |
xy-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Core Drill Rig |
Product Description

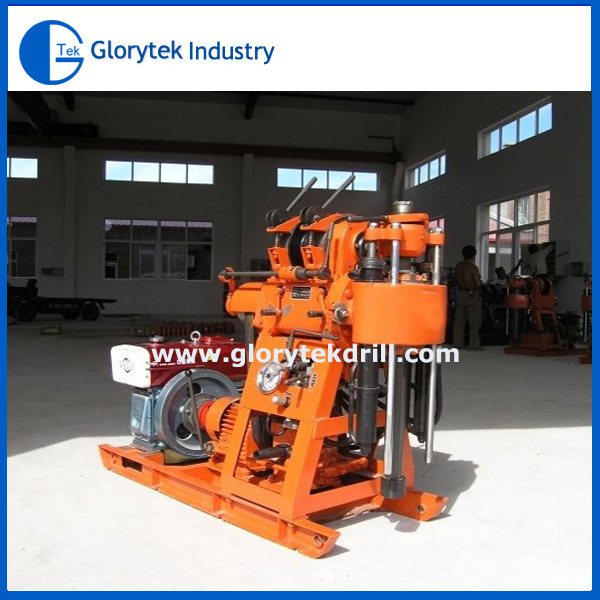

multi-function core drill rig, core drill machine
Advantage
1. High Efficiency
2. Easy operation
3. Safe and reliable
Applications
1. With hydraulic automatic feeding device, elevated drilling efficiency.
2. The holding mechanism with upper spherical jaws is used as substitute for chuck. The rod can be replaced without shutdown.
3. Centralized handles, easy operation, safe and reliable.
4. The drilling machine, pump and diesel engine are installed on a common base frame in order to have a compact structure and occupy small field area.
5 lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas..
Techincal Parameter
Drill | |
| Drilling depth | 100m |
| Drill rod dia. | 42mm |
| Initial hole dia. | 110mm |
| Final hole dia. | 75mm |
| Angle range | 90°-75° |
| Dimensions(L×W×H) | 1640×1030×1440 (mm) |
| Weight(without power unit) | 500kg |
| Swivel Head |
| Spindle speed(3-speed) | 142/285/570 r/min |
| Spindle stroke | 450mm |
| upward displacement speed of idling vertical spindle | 0.05m/s |
| Downward displacement speed of idling vertical spindle | 0.067m/s |
| Spindle pull-down max | 15KN |
| Spindle lifting capacity max | 25KN |
| Hoist |
| Max .lifting capacity(1-speed,single rope) | 10KN |
| Cable volume (number) of hoisting drum | 27m |
| Wire rope dia. | 9.3mm |
| Mud Pump |
| Model | Horizontal reciprocating single-acting piston pump |
| Displacement max | |
| Equipped with diesel engine | 95L/min |
| Equipped with motor | 77L/mm |
| Allowable working pressure max | 1.2Mpa |
| Continuous working pressure | 0.7Mpa |
| Suction pipe dia | 32mm |
| Discharge pipe dia | 25mm |
| | |
Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
2. According to the rock types, choosing the face type, button tooth type.
3. According to the different purpose,. choosing the different body type
Our Company
Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers.
