Grinding Scope:
Dia118-630mm
Operating Weight:
25kg
Power Source:
Electricity
Material:
Aluminum Alloy
Type:
Valve Ginder
Object:
Gate Valve, Valve Seat, Valve Core
Application:
Power Generation, Petroleum, Chemical, Metallurgy
Working Style:
Portable, Electrical Motor
Disc Diameter:
Dia 118-630mm
Product Description
Valve grinder from China ,Metals Kingdom Industry Limted

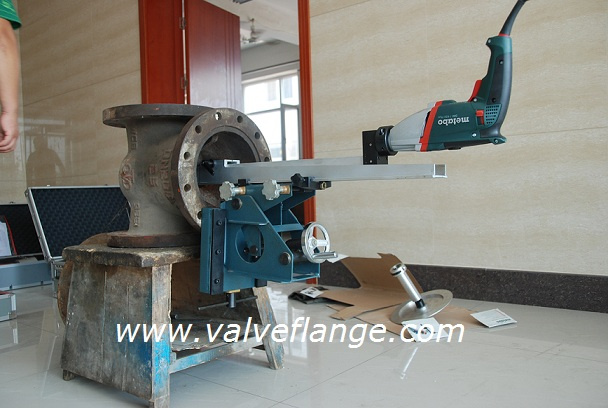

Multi-function Portable Valve Grinding Machine

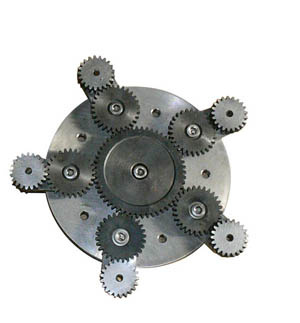

Application: Wide application which could grinding gate valve , Globe Valve and plane valve(valve seat and valve core) Adjustable Grinding disc take planetary transmission way, grinding claws keep rotation while the grinding disc turning, grinding surface as orthogonal reticular pattern, sealing surface grinding in good quality and high efficiency
Item
M-200
M-300
M-600
Grinding Range(mm)
Φ118-220
Φ118-320
Φ220-630
Voltage(V)
220
220
220
Power(W)
1100
1100
1100
Frequency (HZ)
50
50
50
Min distance of valve seats(mm)
45
45
70
Max Grinding Depth(mm)
650
650
950
Gross Weight(kg)
55
56+20
70+11

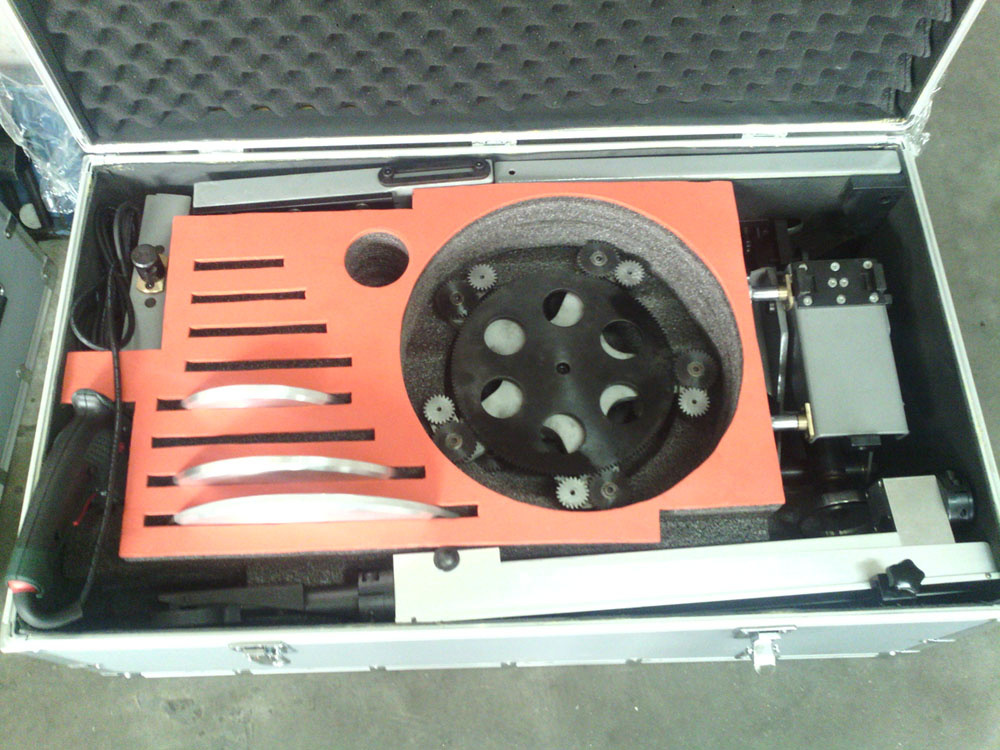

Portable Valve Grinding Machine Features: Split-type assembly makes installation easy and fast High-strength aluminum alloy grinding disc. This material with high strength, light weight and hard to deformation Standard configure: Germany Metabo Motor and world famous bearing Grinding Paper block, cheap and easy to replace Grinding speedy, good quality, grinding efficiency is 10-30 times by hand grinding Aluminum-plastic box packing, light, compact, and easy to carry
Sincere Union Imp & Exp Co., Ltd(Metals Kingdom Industry Limited) is located in Baoding New Technology Development Zone, We are a integrated Corporation. We have our own manufacturing sites with complete Quality Management system ISO9001: 2008, ISO14000, GMP, FAMIQS and etc.
Our main products include Valve Grinding tools /Valve Grinder/Valve Grinding machine, Valve Lapping Machine, Valve Closed Test Bench, Pipe Bevelling and Cutting Machine, Besides, We have been dealing with Chemical Products for more than 10years.
We produce Portable Valve Grinding Machine (M-100, M-200, M-300, M-600, M-1200) and Valve Test Bench, Flanges include Blind Flange, Slip-on Flange, Welding Neck Flange, Socket Welding Flange, Thread Flange and Plate Flange. Valve series have Gate Valve and Butterfly Valves. They are used in low and middle pressure fluid pipeline, boiler, petroleum and natural gas industry, drilling, chemical industry, electric industry, shipbuilding, fertilizer equipment and pipeline, structure, petrochemical, pharmaceutical industry.
Pls refer to our website: Www. Valveflange. COM
We can also supply chemical products include Pharmaceutical Raw materials API with GMP and ISO9001 Certification, Zinc Compounds, Nickel Compounds, Cobalt Compounds, Copper Compounds, Lithium Compounds and etc.
They are mainly used for pharmaceuticl, Cosmetic, Animal Feed, Food, Ceramics and enamels, Pigments, Rubber, Electronic, Electroplating, Catalysts, Paint and etc.
Pls refer to our website: Www. Metalskingdom. COM
Meanwhile, we import raw materials for our own factories, including Cast Iron, Zinc Ingot, Low purity Cobalt Hydroxide, Nickel Hydroxide, Cobalt Concentrate, Nickel Concentrate, and etc.
Sincere Union Corp insists on the principle of Quality, Sincere, Credit. We will try our best to be your sincere partner forever.
