| Prod Model: |
VH800 |
| Lens Type: |
Aspheric Collimator Glass Lens |
Product Description
SHANGHAI JIABEI INSTRUMENT COMPANY
(WWW.DANPON.COM)
Bright Green Beam Laser For Better Visibility - 3x brighter than standard red beam. PRODUCT DESCRIPTION Super bright THREE beams green laser levels VH800Features:1 Artistic outfit design,Small and convenient.Up to 40hours battery life ,great solution to laser tools needs
2 Use green laser to make the laser line two times lighter than the usual red one.and it is safer and more comfortable for your eyes.
3 Visible distance is longer than the red laser level.usually the red laser can be seen in 5m,and the green laser can be seen in 15m indoors.and it is also visible outdoors.50m with receiver.

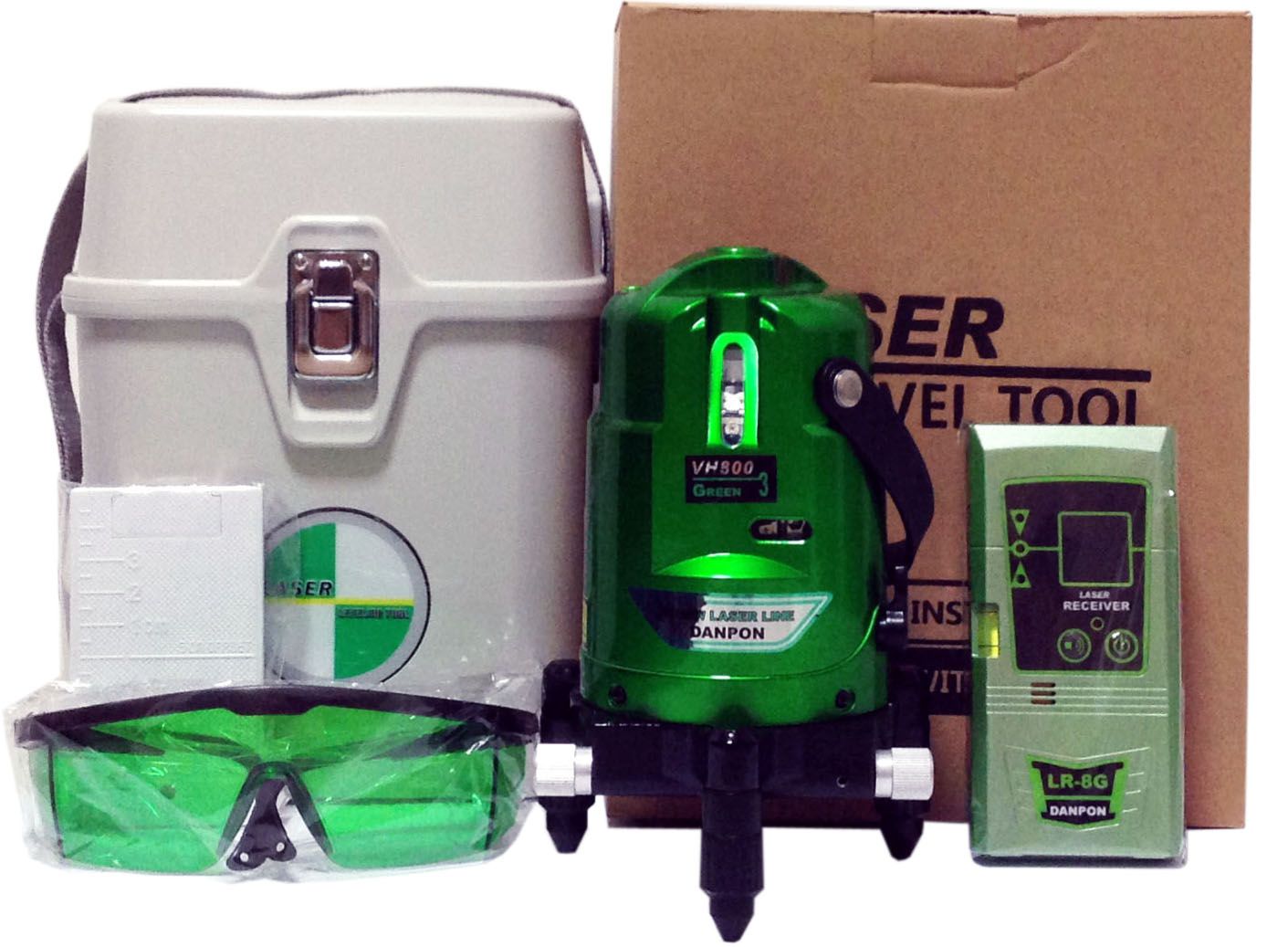

4 we have the complete accessories including receiver,tripod,green glasses .
5 working temperature -10ºC-+50ºC.Even it is very cold, the machine can be turned on instantly.
TECHNICAL SPECIFICATION
TYPE
VH 800
TECHNICAL SPECIFICATION
Lens type : Single glass lens
Output Power : <5mw
Wavelength : Line Beam:532nm Plumb dot:650nm
Accuracy : ±1.0mm/5M
Angle of projection : Vertical>120° Horizontal>100°
Self-leveling range : ±3°
Out of Range : Flashing
Brake mode : Magnet
Function : 1 Horizontal Beam, 2 Vertical Beam, Up dot and Down dot
Power Supply : 4AA Batteries
Duration : 12 hours for single line
Operating temperature : 5°C ~45° C
Weight : Around 1.0kg (excl. batteries)
Exterior Size : φ130x186mm
Base : Rotary aluminum alloy base, with adjustable knob for line
RANGE OF APPLICATION
1. Suspended ceiling construction.
2. Partition construction.
3. Installation of electricity, air-conditioner and water pipes.
4. Marble and floorboard paving.
5. OA-related office decoration and measuring-related work where leveling and plumbing is needed.ACCESSORY
1. Magnetic ceiling target
2. Manual
3. Glasses
4. Carry case
OPTIONS

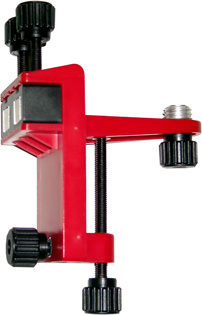

1. Wall bracket / mount
2. Tripod
3 Receiver
