Multi-Stage Cold Heading Machine Screw Riveting Forger

Name: Multi-Stage Cold Heading Machine Screw Riveting Forger
Brand: tool-buy.com
SKU: 839223395
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	US $ 6000-7500/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Dongguan Zhongjun Machinery Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	4840
Weight:	1500kg
Power:	5.5kg
Speed:	150-185cm
Color:	Green

Product Description

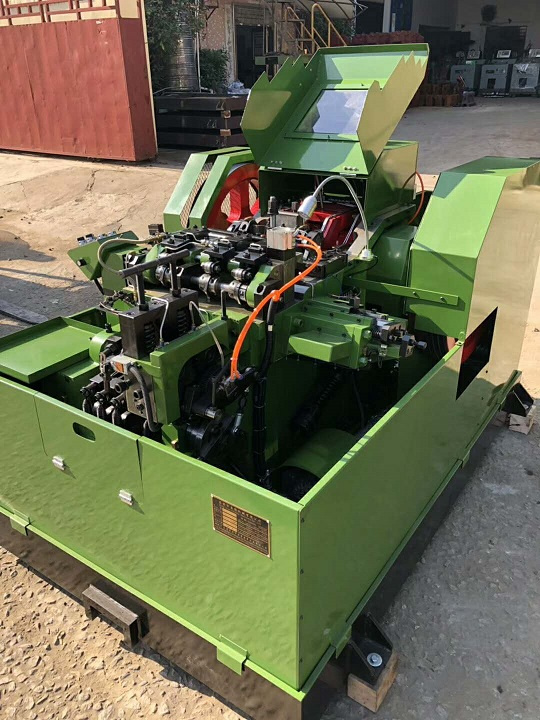

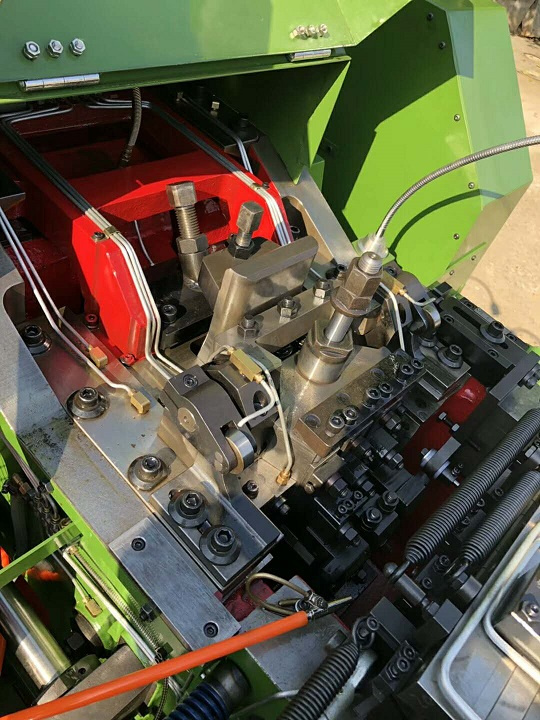

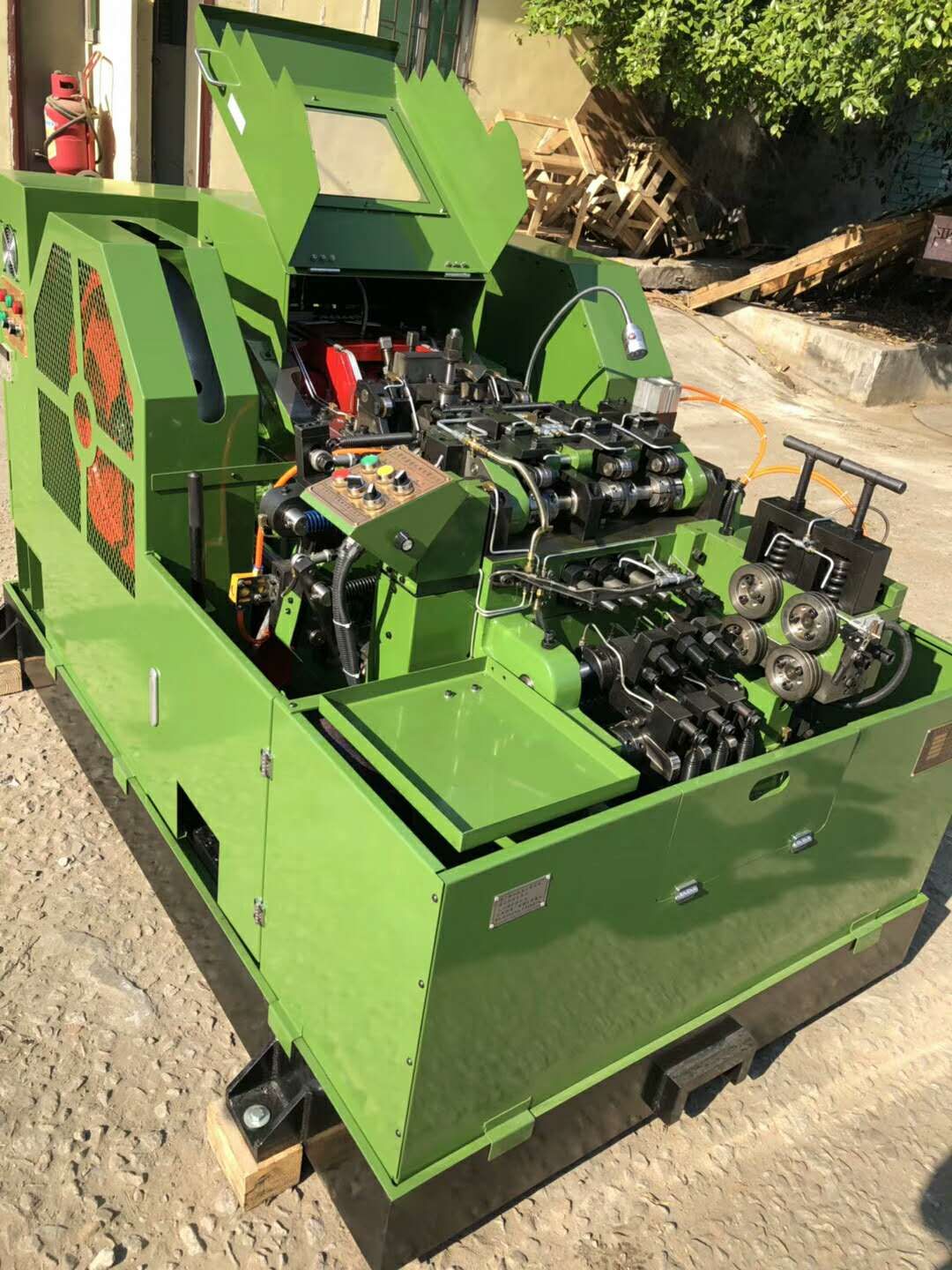

Multi-stage cold heading machine

Model description	Die quantity	blow quantity	Max cut-off diameter	Max cut-off length	Main die	punch	Cut-off die	Main motor	Pump motor	stress	size	Out put	NET WEIGHT
2415L	2	4	7	55	46*100	31*85	19	5HP	1/4HP	15TON	195110115	60-100	2300
3615L	3	6	7	55	46*100	31*85	19	5HP	1HP	15TON	230126140	50-80	3100
3625L	3	6	12	100	58*100	38*105	32	10HP	1HP	40TON	315175162	40-65	8000
3610	3	6	5	35	34.5*80	24*60	19	2HP	1/4HP	10Ton	165100100	60-100	2000
3615L	3	6	7	55	46*100	31*85	19	5HP	1HP	15Ton	230126140	50-80	3100
3625L	3	6	12	100	58*150	38*105	32	10HP	1HP	40Ton	315175162	40-65	8000
3630	3	6	16	150	80*200	50*120	40	20HP	1HP	65Ton	430200185	40-50	13000
3640	3	6	20	200	80*250	58*150	45	30HP	1HP	90Ton	451265200	30-50	18000
2410	2	4	5	35	34.5*70	24*60	19	2HP	1/4HP	10Ton	165100100	80-120	1200
2415S	2	4	5	35	46*85	37*70	19	3HP	1/4HP	15Ton	195110115	60-100	2200
2415L	2	4	7	55	46*100	31*85	19	5HP	1/4HP	15Ton	195110115	60-100	2300
2420	2	4	7	45	50*97	31*80	28	5HP	1/4HP	20Ton	260137140	50-70	3900
2425	2	4	10	75	58*127	38*100	32	7.5HP	1/4HP	25Ton	305154162	40-65	5250
2425L	2	4	12	100	58*150	38*105	32	10HP	1HP	25Ton	305154162	40-65	6500
2430	2	4	13	100	80*150	50*120	40	15HP	1HP	65Ton	400185185	40-50	10000
2440	2	4	15	150	80*220	58*150	45	25HP	1HP	80Ton	451210200	35-50	14200
5B4S	4	4	3	35	30*50	25*55	19*30	5HP		10Ton		150-250	2600
7B4S	4	4	5	40	46*100	31*80	19*35	10HP		20Ton		150-250	4500
10B4S	4	4	8	60	50*100	40*80	28*46	15HP		40Ton		150-200	8000

ZhongJunMachine is a professional factory specializing in fully automatic Fastener machine, such as screw making machine( cold heading machine, thread rolling machine, self-drilling screw forming machines, washer assembly machines ), nut tapping machine, counting-packing machines, vibrating feeders, screw sorting machines and other automatic equipments.

After years of researching and developing, the products become more mature. We strictly control material purchasing and production management, continuous innovating, treat customer's demand as the most important thing. Strict and sophisticated craftsmanship, stable and reliable quality, high-quality after-sales services and reasonable prices are widely praised by the users. We use systematic service model, we could supply high- quality design and finished products according to customers' screw specification or sample, reduce your overall cost, improve the production efficiency, create enormous benefits, truly reach "you specify, We solve". Welcome all to visit Our company.
