| Prod Model: |
YSDZ0501 |
| Features: |
Long Working Hours |
| Charger Input Voltage: |
AC220V/50Hz |
| Unit Rise In Temperature: |
< 25° |
| Frequency: |
> 15000rpm |
| Speed (Drill): |
>600rpm |
| Torque (Quick Chuck): |
>7500g/C |
| Speed (Acetabulum Burnishing Drill): |
>130rpm |
| Torque (Reamer): |
>33000g/C |
| Torque (Hollow Drill): |
> 11200g/C |
| Weight: |
3.1kg |
| Kind: |
Orthopedics |
| Certification: |
Bone Drill |
| Type: |
Orthopedic Drill & Saw |
| Group: |
All |
Product Description

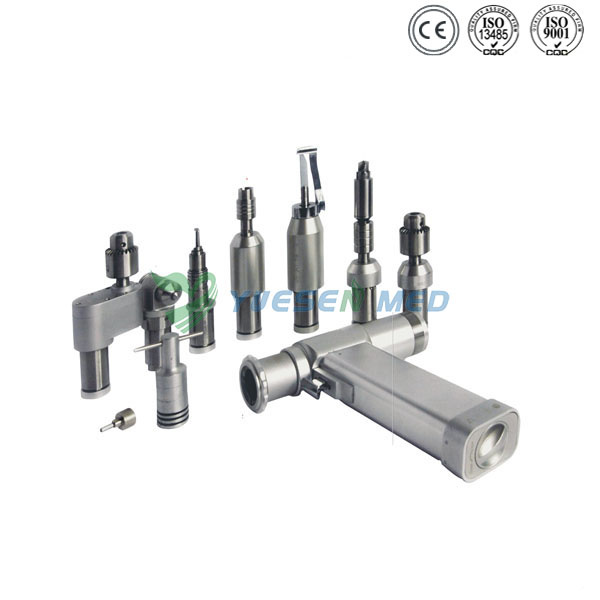

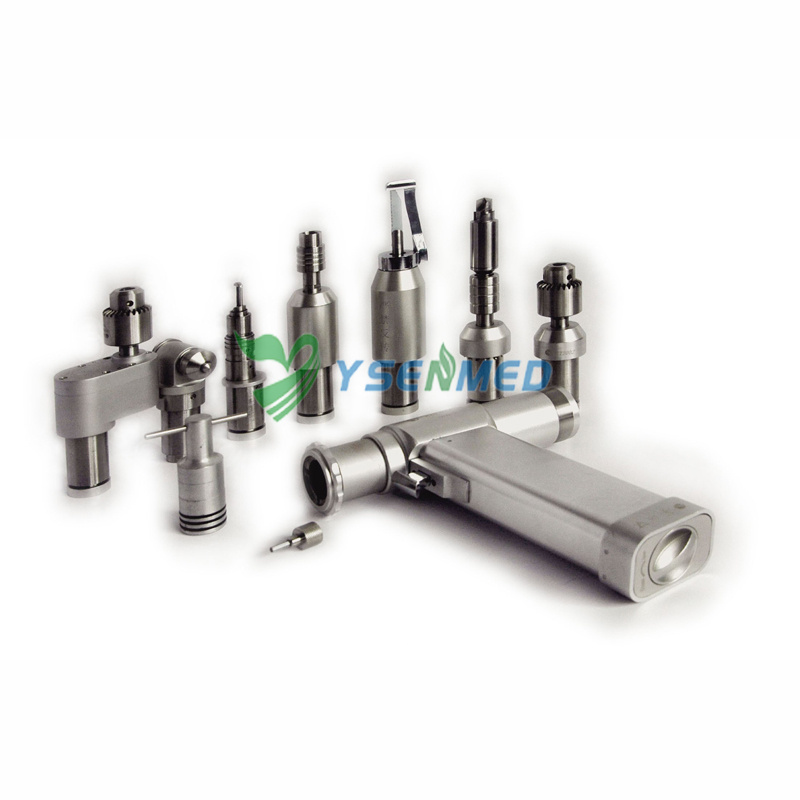

Medical multifunctional electrical orthopedic bone drill Ysdz0501 Bone Drill
Model: Ysdz0501
Technical Data: Charger input voltage AC220V/50HZ
Unit rise in temperature < 25°
Frequency > 15000rpm
Speed (drill) >600rpm
Speed (acetabulum burnishing drill) >130rpm
Torque (quick chuck) >7500G/C
Torque (reamer) >33000G/C
Torque (HOLLOW DRILL) > 11200G/C

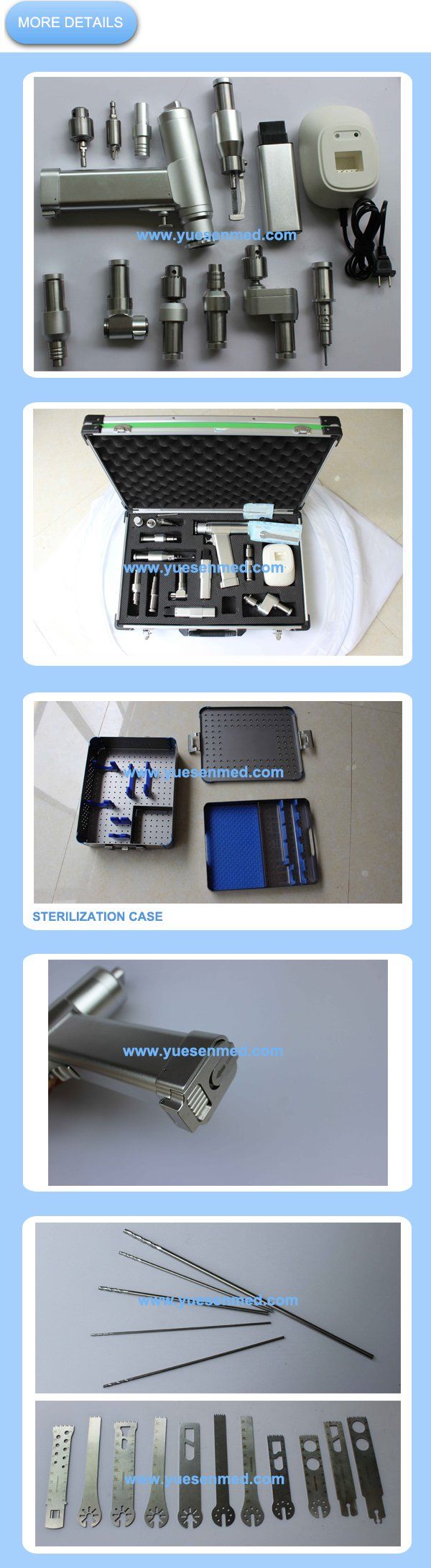

Weight: 3100g Compositions: | No. | Items | Quantity |
| 1 | Main unit | 1 |
| 2 | Sternum saw | 1 |
| 3 | Swing saw | 1 |
| 4 | Bone drill | 1 |
| 5 | Canulate drill | 1 |
| 6 | Craniotomy drill (auto-pause) | 1 |
| 7 | Mill | 1 |
| 8 | Acetabulum burnishing drill | 1 |
| 9 | Charger | 1 |
| 10 | Battery | 2 |
| 11 | Aluminum carrying box | 1 |
Notes: Clients can choose parts according your own needs.
Technical features:
1. Main frame is made of stainless steel, durable, long working hours, the accessories
can be selected freely for different operation.
2. Quick chuck: Imported chuck ensures outstanding performance during operation.
3. Sternum saw: Both 360° rotating head and blade guard can protect soft tissue
around sternum.
4. Craniotomy mill: 40000r.p.m rate ensures fast, efficient and safe process in craniotomy.
5. Oscillating saw: 360°rotating head can be applied to any surgical area. Wrench-free
device allows easy, fast and safe loading and unloading blades.
6. Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to various mills.
7. Wire and pin chuck: A canula with diameter 4.0mm applies to various intramedullary
pin or kirschner pin fixing operation easily and conveniently.
8. Cranial drill: Auto-pause after perforation ensures safety in neurosurgery.
9. Highest quality
10. Perfect ergonomic design
11. Applicable to different kinds of surgery options.
we also have Multifunctional veterinary surgical drill,it is applicable to different kinds of surgery options.
Please let us know your specfic request. We would like to recommend you the most suitable model based on your information. Please let us know your specific request. We would like to recommend you the most suitable model based on your information.
