| Prod Model: |
RJ-MP-NM-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black/Silver |
| Weight: |
8kg |
| Frequency: |
50Hz |
| Application: |
Orthopedic |
| Feature: |
Reusable |
| Type: |
Drill&Saw |
| Material: |
Stainless Steel |
Product Description
multifunctional power drill saw tool with canulate drill, sternum saw & oscillating saw adapter RJ-MP-NM-100
1)High qualtity can drive 7 attachments
2)Perfect ergonomic design
3)Versatile and cost-effective
1, No-load speed of seven attachments:
1)Quick Chuck: 0-1300r/min
2)Oscillating saw: 0-16000r/min
3)Sternum saw: 0-15000r/min
4)Reamer: 0-300r/min
5)Wire and pin chuck: 0-600r/min
6)Cranial drill: 900r/min
7)Cranial mill: 40000r/min

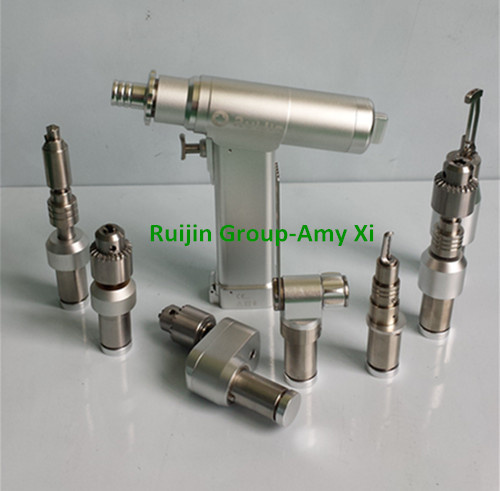

2, Standard Configuration:
1)One Handpiece
2)One Sternum saw
3)One swing saw
4)One bone drill
5)One canulated drill
6)One Craniotomy drill (auto-pause)
7)One mill
8)One acetabulum burnishing drill
9)One charger
10)Two batteries
11)One aluminium alloy box
3, Technical merits:
1)Mainframe is made of Stainless Steel, durable and long working time, the accessories can be selected freely by different operation.
2)Quick chuck: Imported chuck ensures outstanding performance during operation.
3)Sternum saw: Both 360 degree; Rotating head and blade guard can protect Soft tissue around sternum.
4)Craniotomy mill: 40000r. P. M rates assures fast, efficient and safe process in craniotomy.
5)Oscillating saw: 360 degree; Rotating head can be applied to any surgical Sites. Wrenchless collect allows for easy, fast and safe loading and unloading blades
6)Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to all brands mill universal
7)Wire and pin chuck: With a canula diameter 4.0mm applide to various intramedullary pin or kirschner pin fixing opration easily and conveniently.
8)Cranial drill: Auto-pause offer perforation ensures safety in neurosurgery.

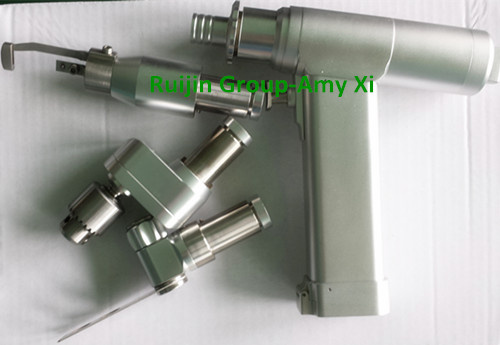

4, Mainframe:
Multifunctional drill with a comprehensive range of quick change attachments assembled in one full functional handpiece, affort surgeon a convenient.
1)Handpiece can drive a variety quick connects.
2)Attachments can be assembled and disassembled easily.
3)360 degree; Rotating.
4)The mian components are made of high-strength stainless steel.
5)135 centigrade autoclavable.
6)Ni-MH battery without memory, environment friendly.
5, Packing details:
1)One set packed in the aluminum alloy box and then put in a carton.
2)Size of aluminum alloy box: 38cmx28cmx13cm
3)Size of carton box: 41cmx32cmx15cm
6, Payment term:
1)MOQ: 1 Set
2)Payment term: T/T in advance or Western Union
3)Packing details: Aluminium alloy box and then put in a carton
4)Delivery time: Immediately after received the payment
7, Remarks:
Many thanks for your kind attention on our medical items. Any request or question, please do not hesitate to contact me. I am waiting to do my best to start our business.
Products display:

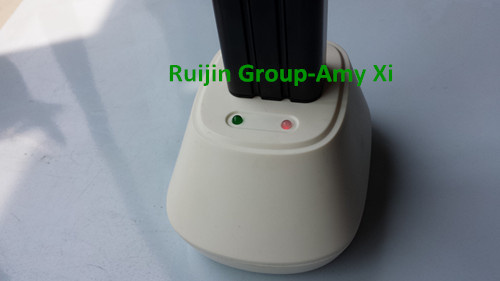

charger

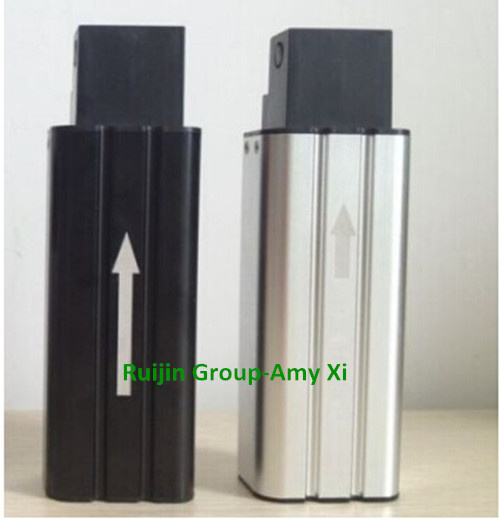

battery
| Hand Piece | Working Voltage | 14.4V |
| | Output Power | ≥ 20W |
| | Unit Rise In Temperature | ≤ 25° C |
| Charger | Input Voltage | AC 220V, 50Hz |
| | Output Power | 14.4V, 900mA |
| | Input Power | 30VA |
| Battery | Voltage | 14.4V |
| | Charging Time | About Three Hours |
| | Battery Couldn' t be autoclavable |
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
