| Prod Model: |
Telescopic Hydraulic Cylinder |
| Hydraulic System: |
Multi Stage |
| Acting Style: |
Single/Double Acting |
| Application: |
Car Lift |
| Working Pressure: |
16---25MPa |
| Working Temperature: |
-30~+80 Degree Centigrade |
| Certificate: |
ISO/Ts16949, ABS, API, SGS |
| Rod: |
75 |
| Material: |
Steel |
| Structure: |
Piston Cylinder |
| Power: |
Hydraulic |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |
| Usage: |
Lifting,Paushing and Falling |
Product Description
Parker and hyva Type telescopic cylinder for dump truck and trailer body
1. Company Information
Found 1995,w are one of the biggest hydraulic cylinder manufacturer in China, specialized in design, R & D and manufacturing of hydraulic machinery products etc, with its annual production capaciy of 200000 sets.My company with 600 employees in it ,covers an area of 180000 square meters.There are 700 sets of mnufacturing equipment .
Product Description

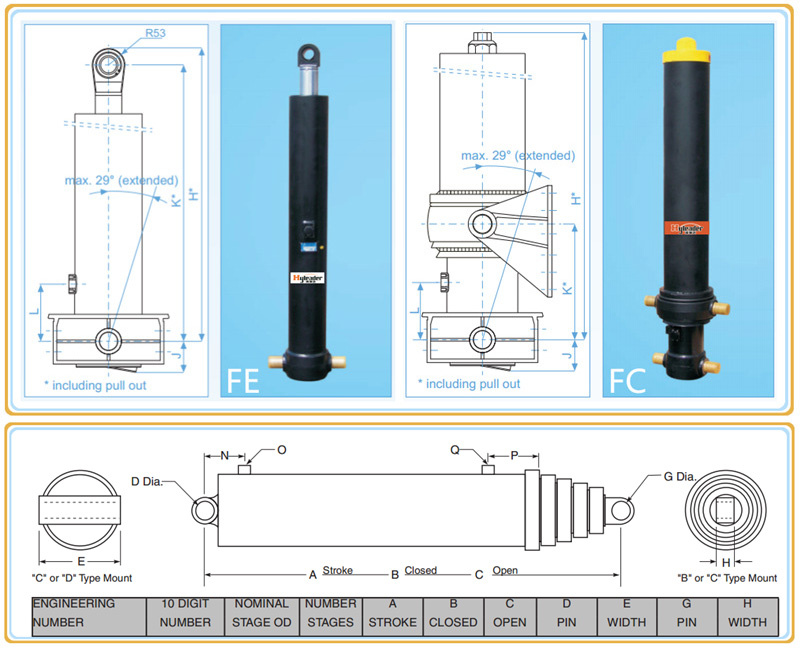

2. hydraulic telescopic cylinder for dump truck drawing and parameter
Hyva FE type
| ITEM | MODLE NO. | # of Stages | Largest Moving Stage Diameter(mm) | stroke(mm) | mounting distance(mm) |
| 1 | WTHY FE-3-110-3205 | 3 | 110 | 3205 | 1449 |
| 2 | WTHY FE-3-110-3460 | 3 | 110 | 3460 | 1609 |
| 3 | WTHY FE-3-129-3460 | 3 | 129 | 3460 | 1449 |
| 4 | WTHY FE-3-129-3880 | 3 | 129 | 3880 | 1609 |
| 5 | WTHY FE-3-149-2900 | 3 | 149 | 2900 | 1320 |
| 6 | WTHY FE-3-149-3200 | 3 | 149 | 3200 | 1420 |
| 7 | WTHY FE-3-149-3500 | 3 | 149 | 3500 | 1520 |
| 8 | WTHY FE-3-149-3880 | 3 | 149 | 3880 | 1644 |
| 9 | WTHY FE-4-149-4280 | 4 | 149 | 4280 | 1450 |
| 10 | WTHY FE-4-149-4940 | 4 | 149 | 4940 | 1529 |
| 11 | WTHY FE-4-149-4620 | 4 | 149 | 4620 | 1484 |
| 12 | WTHY FE-4-169-4280 | 4 | 169 | 4280 | 1394 |
| 13 | WTHY FE-4-169-4450 | 4 | 169 | 4450 | 1437 |
| 14 | WTHY FE-4-169-4620 | 4 | 169 | 4620 | 1479 |
| 15 | WTHY FE-4-169-4940 | 4 | 169 | 4940 | 1529 |
| 16 | WTHY FE-4-169-5000 | 4 | 169 | 5000 | 1574 |
| 17 | WTHY FE-4-169-5180 | 4 | 169 | 5180 | 1604 |
| 18 | WTHY FE-5-169-5355 | 5 | 169 | 5355 | 1394 |
| 19 | WTHY FE-5-169-5780 | 5 | 169 | 5780 | 1559 |
| 20 | WTHY FE-5-169-6180 | 5 | 169 | 6180 | 1527 |
| 21 | WTHY FE-5-169-6480 | 5 | 169 | 6480 | 1604 |
| 22 | WTHY FE-5-169-6830 | 5 | 169 | 6830 | 1674 |
| 23 | WTHY FE-5-169-7130 | 5 | 169 | 7130 | 1769 |
| 24 | WTHY FE-5-191-6180 | 5 | 191 | 6180 | 1527 |
| 25 | WTHY FE-5-191-9030 | 5 | 191 | 9030 | 2177 |
| 26 | WTHY FE-6-191-7420 | 6 | 191 | 7420 | 1677 |
| 27 | WTHY FE-5-214-6830 | 5 | 214 | 6830 | 1662 |
| 28 | WTHY FE-5-214-7130 | 5 | 214 | 7130 | 1722 |
Parker and Custom hoists kind
| ITEM | MODEL NO. | Largest Moving Stage Diameter | # of Stages | STROKE | CLOSED LENGTH | OPEN LENGTH |
| 1 | WTPK 3TG F5*72 | 5" | 3 | 72"(1829mm) | 37.19" (945mm) | 109.19" (2773mm) |
| 2 | WTPK 3TG F5*84 | 5'' | 3 | 84" (2134mm) | 41.19" (1046mm) | 125.19" (3180mm) |
| 3 | WTPK 3TG F5*107 | 5" | 3 | 107.56" (2732mm) | 48.38" (1229mm) | 155.94" (3961mm) |
| 4 | WTPK 3TG F5*126 | 5" | 3 | 126.63" (3216mm) | 54.56" (1386mm) | 181.19" (4602mm) |
| 5 | WTPK 3TG F6*86 | 6" | 3 | 86.75" (2203mm) | 40.88" (1038mm) | 127.63" (3241mm) |
| 6 | WTPK 3TG F6*104 | 6" | 3 | 103.94" (2640mm) | 47" (1194mm) | 150.94" (3834mm) |
| 7 | WTPK 3TG F6*107 | 6" | 3 | 107.56" (2732mm) | 48.38" (1289mm) | 155.94" (3961mm) |
| 8 | WTPK 3TG F6*111 | 6'' | 3 | 111" (2819mm) | 49.94" (1268mm) | 160.94" (4087mm) |
| 9 | WTPK 3TG F6*120 | 6'' | 3 | 120'' (3048mm) | 53.5" (1359mm) | 173.5" (4407mm) |
| 10 | WTPK 3TG F6*123 | 6'' | 3 | 123" (3124mm) | 54.94" (1395mm) | 177.94" (4519mm) |
| 11 | WTPK 3TG F6*126 | 6'' | 3 | 126.31"(3208mm) | 54.56" (1386mm) | 180.87" (4594mm) |
| 12 | WTPK 3TG F6*140 | 6'' | 3 | 140.25" (3562mm) | 59.81" (1519mm) | 200.06" (5081mm) |
| 13 | WTPK 4TG F6*135 | 6'' | 4 | 135" (3429mm) | 47.19" (1199mm) | 182.19" (4628mm) |
| 14 | WTPK 4TG F6*156 | 6'' | 4 | 156" (3962mm) | 53.62" (1362mm) | 209.62" (5324mm) |
| 15 | WTPK 3TG F7*110 | 7" | 3 | 110.63" (2810mm) | 50.06" (1271mm) | 160.69" (4081mm) |
| 16 | WTPK 3TG F7*120 | 7" | 3 | 120" (3048mm) | 53.12" (1349mm) | 173.12" (4397mm) |
| 17 | WTPK 3TG F7*124 | 7" | 3 | 124.88" (3172mm) | 54.81" (1392mm) | 179.69" (4564mm) |
| 18 | WTPK 3TG F7*129 | 7" | 3 | 129" (3277mm) | 56.5" (1435mm) | 185.5" (4712mm) |
| 19 | WTPK 3TG F7*140 | 7" | 3 | 140.44" (3567mm) | 60" (1524mm) | 200.44" (5091mm) |
| 20 | WTPK 3TG F7*150 | 7" | 3 | 150" (3810mm) | 63.50" (1613mm) | 213.50" (5423mm) |
| 21 | WTPK 4TG F7*120 | 7" | 4 | 120" (3048mm) | 44.12" (1120mm) | 164.12" (4168mm) |
| 22 | WTPK 4TG F7*135 | 7" | 4 | 135" (3429mm) | 48.43" (1230mm) | 183.44" (4659mm) |
| 23 | WTPK 4TG F7*140 | 7" | 4 | 140" (3556mm) | 49.75" (1263mm) | 189.75" (4819mm) |
| 24 | WTPK 4TG F7*156 | 7" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| 25 | WTPK 4TG F7*161 | 7" | 4 | 161.75" (4108mm) | 55.31" (1405) | 217.06" (5513mm) |
| 26 | WTPK 4TG F7*167 | 7" | 4 | 167" (4242mm) | 56.38" (1432mm) | 223.38" (5674mm) |
| 27 | WTPK 4TG F7*180 | 7" | 4 | 180" (4572mm) | 61.12" (1552mm) | 241.12" (6124mm) |
| 28 | WTPK 4TG F8*148 | 8" | 4 | 147.75" (3753mm) | 51.50" (1308mm) | 199.25" (5061mm) |
| 29 | WTPK 4TG F8*156 | 8" | 4 | 156" (3962mm) | 53.75" (1365mm) | 209.75" (5327mm) |
| 30 | WTPK 4TG F8*161 | 8" | 4 | 160" (4064mm) | 55.75" (1416mm) | 215.75" (5480mm) |
| 31 | WTPK 4TG F8*170 | 8" | 4 | 170" (4318mm) | 57.25" (1454mm) | 227.25" (5481mm) |
| 32 | WTPK 4TG F8*180 | 8" | 4 | 180" (4572mm) | 59.75" (1518mm) | 239.75" (6090mm) |
| 33 | WTPK 5TG F8*170 | 8" | 5 | 170" (4318mm) | 49.88" (1267mm) | 219.88" (5585mm) |
| 34 | WTPK 5TG F8*190 | 8" | 5 | 189" (4800mm) | 54.62" (1387mm) | 243.62" (6188mm) |
| 35 | WTPK 5TG F8*220 | 8" | 5 | 220" (5588mm) | 60" (1524mm) | 280" (7112mm) |
| 36 | WTPK 5TG F8*235 | 8" | 5 | 234" (5944mm) | 64.62" (1641mm) | 298.62" (7585mm) |
| 37 | WTPK 5TG F8*250 | 8" | 5 | 249" (6325mm) | 68.62" (1743mm) | 317.62" (8068mm) |
| 38 | WTPK 5TG F8*265 | 8" | 5 | 265" (6731mm) | 71" (1803mm) | 336" (8534mm) |
| 39 | WTPK 5TG F8*285 | 8" | 5 | 285" (7239mm) | 78.5" (1994mm) | 363.5" (9233mm) |
| 40 | WTPK 5TG F9*220 | 9" | 5 | 218" (5537mm) | 62.44" (1586mm) | 280.44" (7123mm) |
| 41 | WTPK 5TG F9*235 | 9" | 5 | 233" (5918mm) | 65.44" (1662mm) | 298.44" (7580mm) |
| 42 | WTPK 5TG F9*250 | 9" | 5 | 248" (6299mm) | 68.44" (1738mm) | 316.44" (8037mm) |
| 43 | WTPK 5TG F9*265 | 9" | 5 | 265" (6731mm) | 72.62" (1844mm) | 337.62" (8575mm) |
| 44 | WTPK 5TG F9*280 | 9" | 5 | 280" (7112mm) | 72.62" (1997mm) | 358.62" (9109mm) |
| 45 | WTPK 5TG F9*300 | 9" | 5 | 300" (7620mm) | 79" (2007mm) | 379" (9627mm) |
| 46 | WTPK 5TG F9*320 | 9" | 5 | 320" (8128mm) | 83" (2108mm) | 403" (9628mm) |
| 47 | WTPK 5TG F9*340 | 9" | 5 | 340" (8636mm) | 87" (2210mm) | 427" (10846mm) |

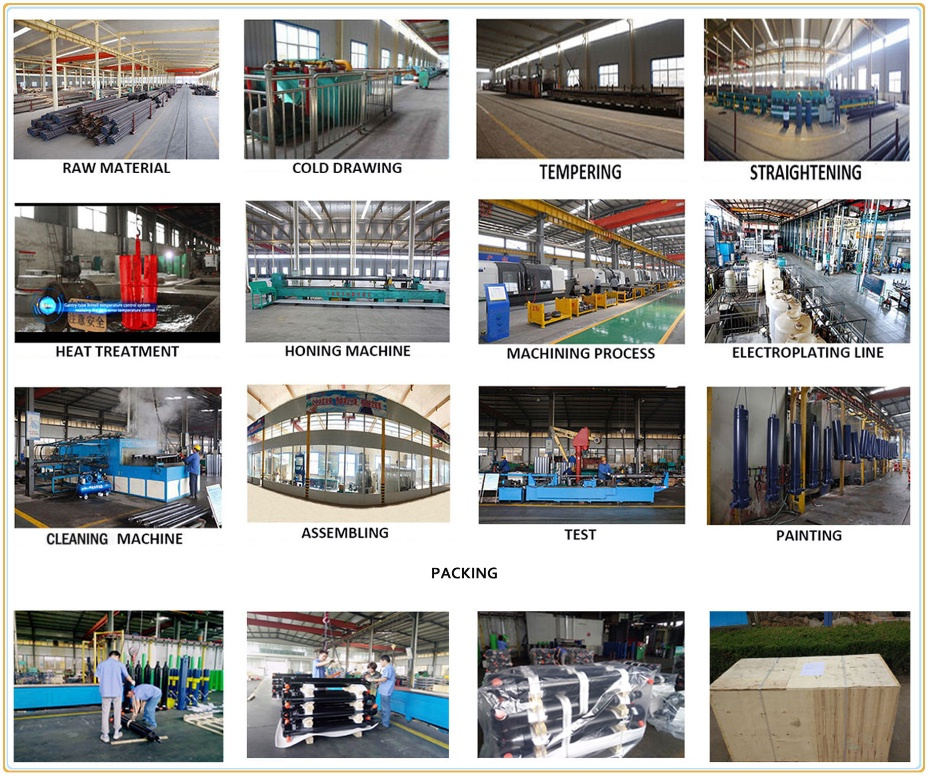

3. hydraulic telescopic cylinder for dump truck produce line
