Multistage Telescopic Hydraulic Cylinder for Trailer/Dump Truck
| Price: |
US $ 200-800/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
Customized |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Xingtian |
| Model: |
Telescopic Hydraulic Cylinder |
| Color: |
Any Color You Can Choose |
| Size: |
Can Be Customized as Per Your Requirements |
| Seal Kit: |
Nok, Hallite, Parker etc |
| Warranty: |
One Year |
| Place Of Origion: |
Shandong, China(Mainland) |
| Power: |
Hydraulic |
| Standard: |
Nonstandard |
| Pressure Direction: |
Single-acting Cylinder |
| Material: |
27 Simn, 45# Steel |
| Structure: |
Telescopic Cylinder |
Product Description
1.Product Description: We are supplier of FOTON,HYNDAI, SINOTRUCK and Shanxi Automobile Group Co., Ltd, the most famous truck manufacturing and refitting company in China.It is a proof of our quality. | HS Code | 8412210000 |
| Application | Dump truck, Tipper, Trailer |
| Material of cylinder tube | alloy steel |
| Seal | Hallite, SKF, NOK, Guarnitec, Parker |
| Coating | all tubes are chrome plated |
| Temperature | -30ºC-80ºC |
| Working pressure | 10MPa-32MPa |
| Stroke | 3000mm-11000mm |
| Color | red black blue gray |
| Mounting Type | Earring-trunnion, double trunnion, double earring (eye end) |
| Plunger | 20#, 45# steel with high frequency quenching |
| Certification | ISO9001:2008,TS16949,SGS |
| Package | shrink film, pallet, plywood case and carton |
| Warranty | One year after shipping arrival |
| Main export market | US, Canada, South Korea, Russia, Australia, Indonesia, Malaysia, Fiji Island, Kenya, Philippines, Bolivia, the United Arab Unites,Singapore |
| Payment terms | T/T, L/C, West Union |
| Delivery time | 30 days after down payment |

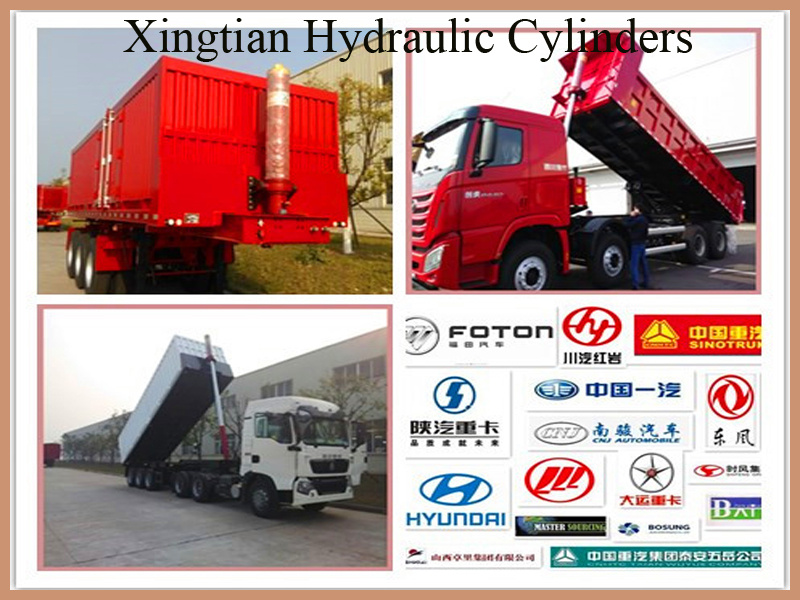

2.Application&Our Customers:
3.Hydraulic Cylinders :
4.Our Common Front End Hydraulic Cylinder List: | STYLE | Model NO. | Stages | Stroke | 1st stage diameter |
| FC/FE CYLINDER | 110-3-3880 | 3 | 3880 | 110 |
| 110-4-3800 | 4 | 3800 | 110 |
| 110-4-4300 | 4 | 4300 | 110 |
| 129-3-2970 | 3 | 2970 | 129 |
| 129-3-3600 | 3 | 3600 | 129 |
| 129-3-3985 | 3 | 3985 | 129 |
| 150-3-2670 | 3 | 2670 | 150 |
| 150-3-2970 | 3 | 2970 | 150 |
| 150-3-3550 | 3 | 3550 | 150 |
| 150-4-4280 | 4 | 4280 | 150 |
| 172-4-4280 | 4 | 4280 | 172 |
| 172-4-4620 | 4 | 4620 | 172 |
| 172-4-5460 | 4 | 5460 | 172 |
| 196-5-6000 | 5 | 6000 | 196 |
| 196-5-6180 | 5 | 6180 | 196 |
| 196-5-6500 | 5 | 6500 | 196 |
| 221-5-9030 | 5 | 9030 | 221 |
5.Packing&Shipping:
6.Quality Control:1. External Inspection: Purchased Item Inspection, Outsourcing Item Inspection2. Process Inspection: First Inspection, Random Inspection, Handover Inspection3. Final Quality Inspection: External Dimensions Inspection, 100% Hydraulic Test4. Type InspectionEvery piece of hydraulic cylinder are tested and will send out only after they are pasted the each test.
Our company has abundant technical force and perfect testing means. By making wide technical and business cooperation with many related enterprises, universities, colleges and institutes both at home and abroad, and employing senior engineers and software engineers, we have greatly strengthened and improved our designing, processing, and testing abilities.7.Guarantee&After-sale Service:1. 24 hours technical support through email2. Goods will be delivered safely on time3. One year guarantee after destination port arrival4. Life long time follow up service8.If you are interested in our products,please kindly provide us the following information or design drawing with your inquiry for our teams' reference: 1)Product dataa. Bore size:b. Stroke length:c. Rod Diameter:d. Mounting Type:e. Mounting length:f. Paint color requirement. 2)Application Data:a. Type of machine (loader, steer loader, excavator, etc):b. Type of function (hoist, swing. steering, etc)c. Type of structure (piston, telescopic)d. Single acting or double actinge. Operating PressureFAQ:Q1. What are the same aspects of your cylinder with Hyva cylinder?1. Same inside structure.2. Same outside dimension and same mounting sizes. It can be interchangeable with Hyva'sQ2. Compared with Hyva cylinder, what are your cylinder advantages?1.Tubes are chrome plated.2.Tubes are quenched and tempered.3.Tube inner hole goes through deep-hole boring machine processing. Surface roughness is 0.4Ra and circular degree is 0.025.4.Good quality yet lower price.Contact Information:
Shandong Xingtian Machinery Co., Ltd was founded in 1996 located in Shandong, China. With more than 240 staffs and CNC machining center, gringding and polishing equipment, spray line, electro plating line, etc. We are a leading enterprise in China focus on hydralic cylinder production, and is the main suppliers for the famous automobil mnufacturing enterprises, such as FAW., Hongda, Nanjun, Lifan, etc. We passed ISO 9001 and TS16949, and export our products to Italy, Australia, U. S. A, Korea, etc. We sincerely hope to progress with mutual benefit and common development with our all customers! They are used for dump truck, trailer, agriculture machine, construction, mining,
Forestry, loader, waste management, Now we supply the goods to FOTON,
HOWO, FAW, Shanxi AUTO, Sichuan Hyndai, Dayun, JAC etc,
The annual production capacity of cold drawn pipe is more than 2000 tons.
Devotes to product cylinder pipe and rod and so on.
The company insisted that"quality is life, dvelopment and innovation" unceasingly provides satisfaction service for the customers. We improves the product quality unceasingly, satisfies the user's needs, the strength enterprise siz, in the enhancement growth potential works hard. In stresses the scene, outside to grasp the market, has won the domestic and foreign more and more user's trust and the support.
The mutual bebefit altogether wins, the honest code of honor, the absolute sincerity cooperation, communal development. Is popular the field machinery's foundation of vertical busniess, is popular the strength fountainhead which the field company develops unceasingly.
