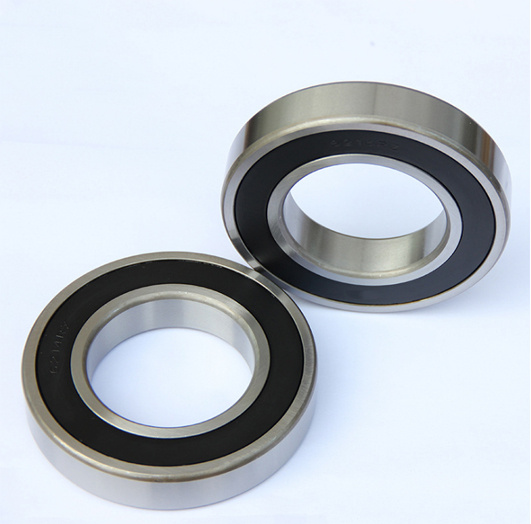

Mute Auto Deep Groove Ball Bearing with High-Precision 6004 2RZ

Prod Model:	6004 2RZ
Precission:	ABEC1(P0), ABEC3(P6) ,ABEC5(P5)
Vibration Velocity:	V1 , V2 , V3
Vibration Acceleration:	Z1 , Z2 , Z3
Oil And Grease:	Mobile, Klueber ,Kyodo, Sinopec
OEM:	Accepted
Grease Lubrication:	15000
Oil Lubrication:	19000

Product Description

The Detail of Deep Groove Ball Bearing 6004
Deep groove ball bearings mainly bear radial load as well as take moderate axial load. With less coefficient of friction, high limiting speed, large size range and variations of structure, deep groove ball bearings are suitable for precision instruments, low noise motors, automobiles, motorcycles, air-conditioners, washers, cleaners and other common machineries as a widely used type of bearings in machinery industry.

Model Number	6004

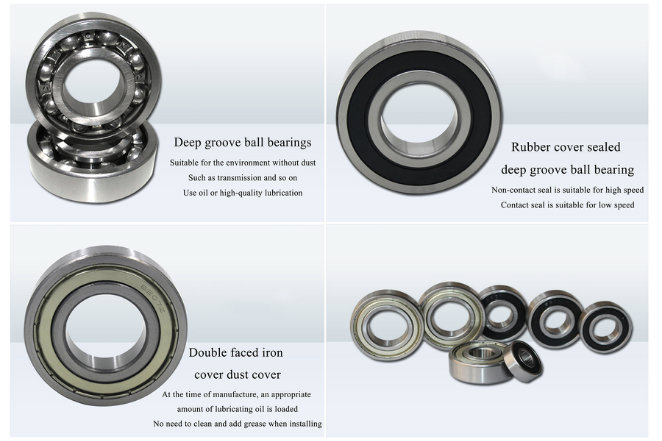

Seals Type	Open, ZZ, 2RS,2RZ
Precision Rating	ABEC1(P0), ABEC3(P6) ,ABEC5(P5)
inner ring	20mm
Vibration velocity	V1 , V2 , V3
Vibration acceleration	Z1 , Z2 , Z3
Number of Row	Single Row
Metal	Bearing steel, Chrome steel, Stainless steel...
Oil and Grease	Mobile, Klueber ,Kyodo, Sinopec or As you requirement


   Deep Groove Ball Bearings  of  6000 series

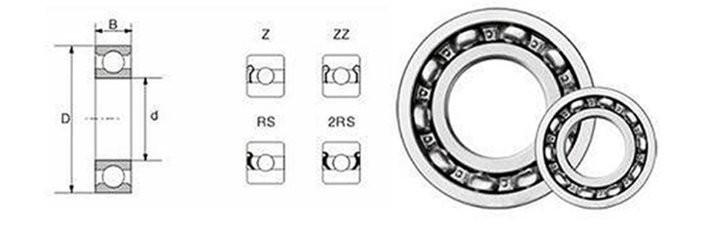

Bearing Type	Dimensions(mm)			Rated dynamic load(Kn)	Rated static load(Kn)	Limiting speed(r/min)		Weight(Kg)
	d	D	B	Cr	Cor	Grease lubrication	Oil lubrication
603	3	9	3	0.49	0.22	40000	48000	0.0009
604	4	12	4	0.75	0.34	36000	44000	0.0021
605	5	14	5	1.02	0.49	32000	40000	0.0035
606	6	17	6	1.13	0.56	30000	38000	0.006
607	7	19	6	2.01	1.05	28000	36000	0.008
608	8	22	7	2.53	1.36	26000	34000	0.015
609	9	24	7	2.57	1.36	24000	32000	0.016
6000	10	26	8	3.52	1.95	22000	30000	0.019
6001	12	28	8	3.93	2.23	19000	26000	0.021
6002	15	32	9	4.3	2.51	18000	24000	0.03
6003	17	35	10	4.62	2.79	17000	22000	0.04
6004	20	42	12	7.22	4.46	15000	19000	0.068
6005	25	47	12	7.74	4.96	14000	18000	0.079
6006	30	55	13	10.18	6.91	12000	15000	0.113
6007	35	62	14	12.47	8.66	10000	14000	0.149
6008	40	68	15	17	11.8	6000	11000	0.185
6009	45	75	16	21	14.8	5600	10000	0.23
6010	50	80	16	22	16.2	5000	9000	0.258
6011	55	90	18	30.2	21.8	4500	8000	0.362
6012	60	95	18	31.5	24.2	4000	7000	0.385

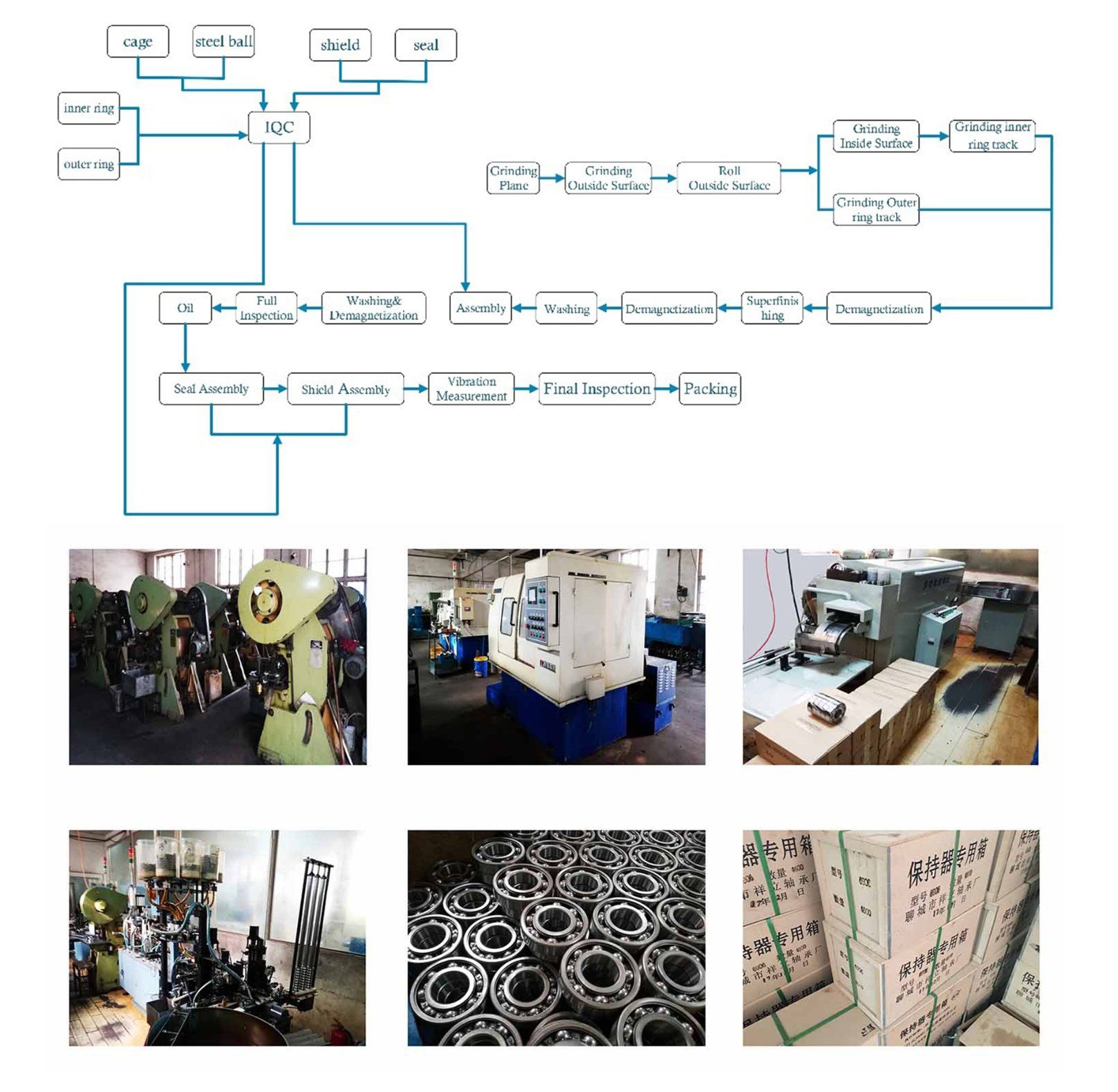

Liaocheng Xiangli(CXL) Bearing Factory, founded in May 2005, is a professional deep groove ball bearing manufacturer. With high standards products, our company is based on the high level market. The automated production line including the automatic CNC high precision grinding machine and super finish machine was adopted; The detection systems consist of roundness measuring instrument(Y9025G), optical microscopy(YZ-1), vibration inspection instrument (SO910) etc. In the company, great attention is paid to basic management, stable quality, continuously improving pre-sale services, sale and after-sale services, and enhancing the market competitiveness of our products.
We adhere to the standards of P5ZV4 and even higher requirements, mainly engaged in various types of deep groove ball bearing, bearing cage and other bearing part.
CXL principally provides deep groove ball bearings for open formula, single or double shield, seal ring and outer ring with snap groove and snap ring from 20mm to 100mm on inner diameter. Our superiority and strength are manufacturing mute motor bearings.
1. The quality assurance:
Product quality is the lifeline of an enterprise. In order to possessing the leading technology, our company implements the quality control system and establishes a technical and strict inspection team. As per the regulation of three-dimensional management and multiple checks, each product was inspected by the producer, inspector, inspection department and quality department elaborately, especially to the important inspection items and precision inspection item.
2. The convenient & fast transportation to Qingdao port:
Our factory is located in Shandong Province, easily transport to the port by car
3. 24- hour customers' series online:
High quality, good credit and excellent service are the tenet of our factory. Customers' satisfaction is our lifeline, as well as our highest honor. We will do our best to meet your requirements, and will do better in the future.
