| Prod Model: |
V150-180 |
| Color: |
Black,Brown or You Need |
| Size: |
Customized |
| Working Temperature: |
-30~ +200 |
| Working Pressure: |
≤50MPa or ≤60MPa |
| Working Medium: |
Hydraulic Oil |
| OEM/ODM: |
Available |
| Company Type: |
Manufacturer |
| Factory Visit: |
Avaiable |
| Service: |
OEM or in Stock |
| Trial Order: |
Accept |
| Standard: |
Customized |
Product Description

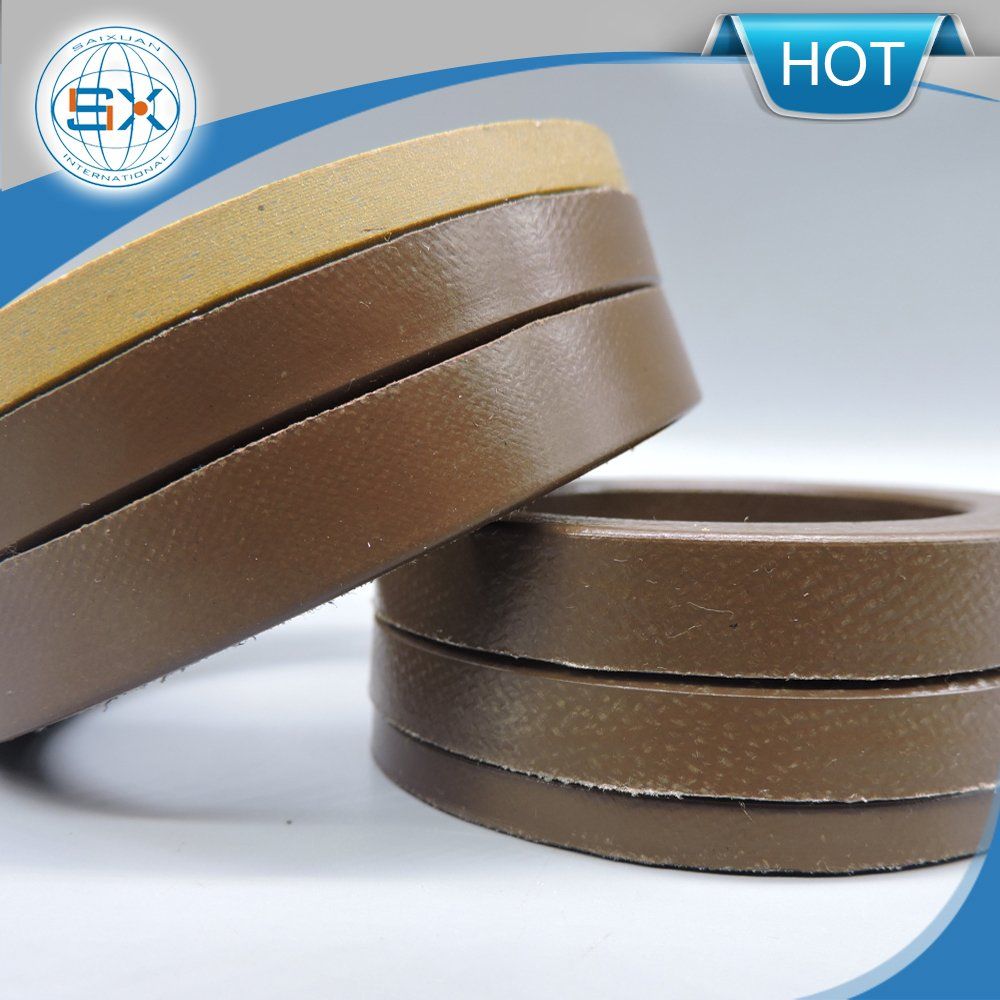

| Detail | Compact V packing seals |

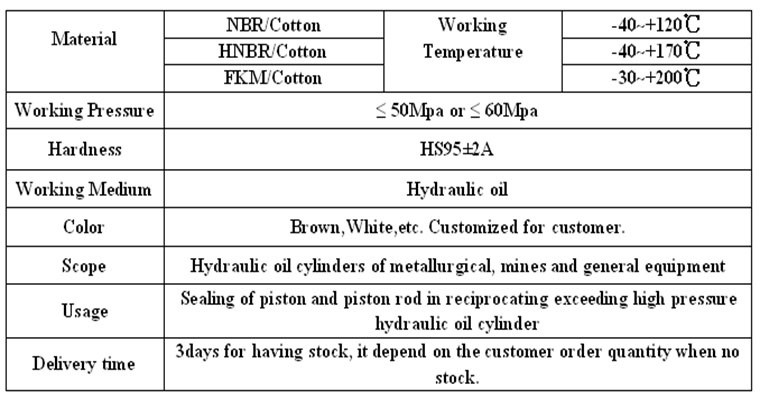

| Material | NBR/Cotton | Working
Temperature | -40ºC~ +120ºC |
| HNBR/Cotton | -40ºC~ +170ºC |
| FKM/Cotton | -30ºC~ +200ºC |
| Working Pressure | ≤50Mpa or ≤60Mpa |
| Hardness | HS 95±2A |
| Working Medium | Hydraulic oil |
| Color | Black or other colors you need |
| Usage | Sealing of piston and piston rod in reciprocating exceeding high pressure hydraulic oil cylinder |
| Scope | Hydraulic oil cylinders of metallurgical, mines and general equipment |
| Delivery time | 3 days for having stock, it depend on the customer order quantity when no stock. |

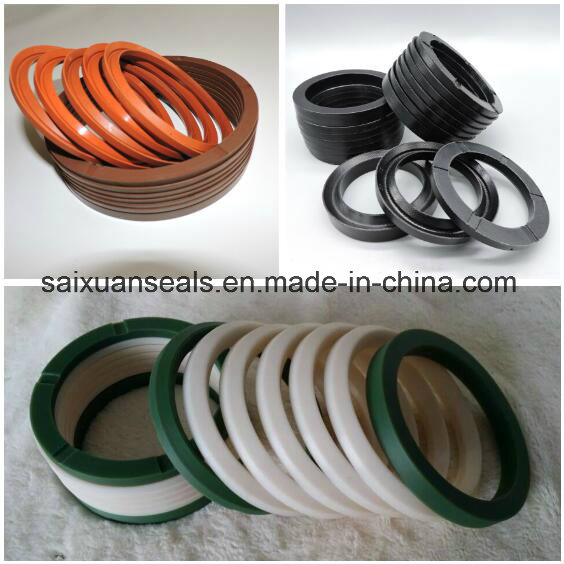

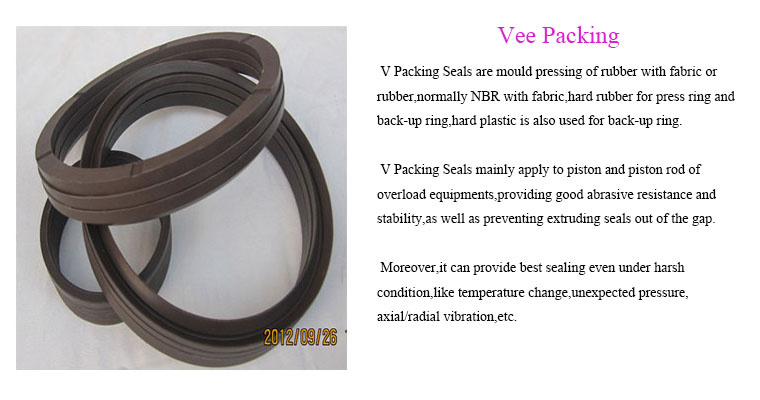

Multiple-lip (chevron) Seals or
Vee Packings that consist of a group of endless rings and are usually used for sealing rods, pistons, plungers in hydraulic cylinders and hydraulic presses. V-Packings are used for low or high pressure applications with Single or Double acting cylinder.
V-Packings are also used in various Oilfield Downhole equipment such as various Valves etc. V-Packings are extremely suitable for usage in medium to heavy duty applications. Vee Packings accept low and high pressure while operating in the most extreme conditions and also if there exists any misalignment between the sealing gaps.
The hinge-line action of Vee-Packings that enables immediate reaction even to minor pressure changes is very distinctive and exclusive to a Vee-Packing design. Each individual lip of a Vee-Packing set reacts independently to pressure thus effecting aseal automatically. In case of multiple lip configurations, pressure is automatically distributed thus effecting a seal along the shaft. Vee-Packings also premit automatic reaction to shocks from high pressure and overloads.

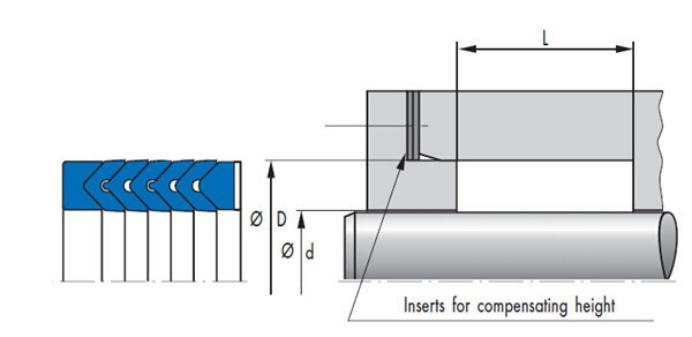

The Vee-Packing is a combination of Base Seal, the Vee-Ring at the center and the Pressure ring. The Vee-Ring is the main seal that can retain high and low pressures while the base seal supports the center ring from getting extruded during high pressure applications. The Pressure Ring helps in retaining the Vee Packing profile and distributing pressure equally.Section and Install :
Product Application:Chemistry
Pharmaceuticals
Measuring and control systems
General mechanical engineering
Foodstuffs industry
Iron and steel industry
Automotive
Filling Machinery
Mining machinery
Industrial, mechanical, special purpose
Hebei Saixuan Import&Export Trading Co., Ltd is a company for seals in research and development, manufacturing and trading. Since its establishment in 1998, our company with advanced technology, superior quality and high quality service has become the designated rubber parts supplier for a number of world-renowned enterprises.
Product operating characteristics include vibration attenuation, resistance to high and low pressure, oil, acids and alkali, chemicals and high and low temperature, electrical conductivity, insulation, halogen free flame retardant, UV resistance, and resistance to the refrigerant and vapor and so on. Now the material specifications taken by the company are NR (natural rubber), SBR (styrene butadiene rubber), BR (butadiene rubber), IIR (butyl rubber), HNBR (hydrogenated nitrile), NBR (nitrile rubber), CR (neoprene), EPDM (ethylene propylene diene monomer), FPM (Viton), VMQ (silicone), AEM (acrylate) and CSM (chlorosulphonated polyethylene). Products range relates to household appliances, electronics, telecommunications, automobiles, lighting, medical care, valves, sanitary wares, machinery, electricity and other high-tech fields.
As a professional manufacturer of high-quality rubber products, we always adhere to the corporate concept of "people-oriented, technology-based and credit and reputation first". Welcome to consulting our company's products, and look forward to creating win-win cooperation with you.
