Nc Steel Hydraulic Shear Machine, Nc Heavy Duty Hydraulic Shearing Machine, Nc Guillotine Cutter Machine Hydraulic Shear

Name: Nc Steel Hydraulic Shear Machine, Nc Heavy Duty Hydraulic Shearing Machine, Nc Guillotine Cutter Machine Hydraulic Shear
Brand: tool-buy.com
SKU: 761444255
Availability: InStock
Rating: 4.6 (21 reviews)

Price:	US $ 10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Shanghai Bohai Machinery Manufacturing Co., Ltd.

Showroom Product Company Profile

Prod Model:	QC11K 12 x 3200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Customized
Cutting Angle:	Variable 0.5-1.5 Degree
Application:	Machinery & Hardware
Type For Cutting Machine:	Hydraulic Cutting Machine
Type For Fold-Bending Machine:	Hydraulic Fold-Bend Machine
Type:	Shearing Machine

Product Description

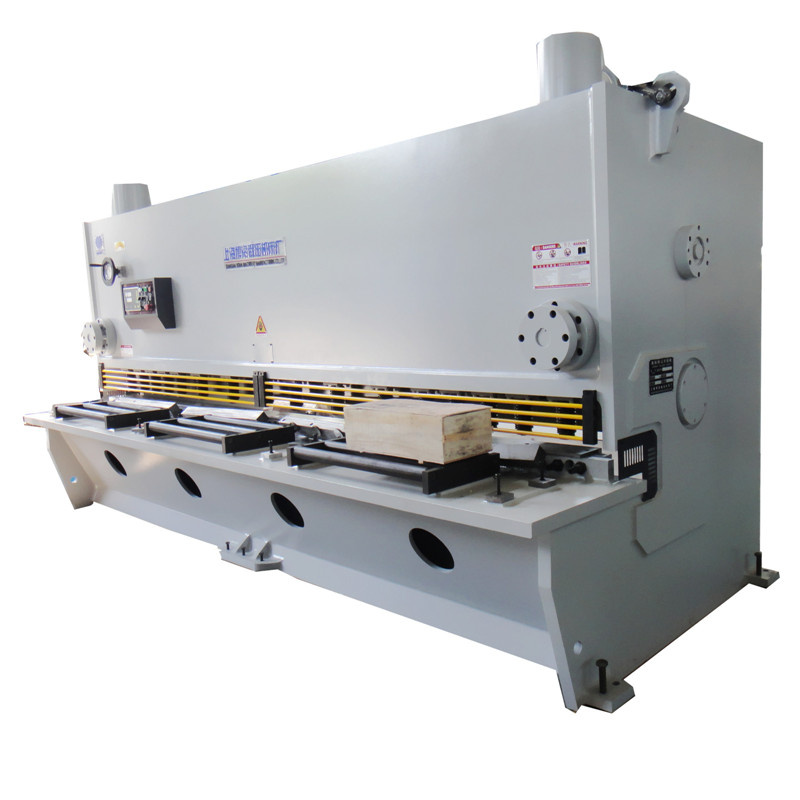

Hydraulic Guillotine Shear
Characteristics:

1. Totally European design, streamlined looking, Frame: consists of right and left wall boards, working table, oil tank, slot steel and etc.

2. The stress of the welded parts can be eliminated by vibration.

3. The machine enjoys high accuracy and high strength and can be transported easily.

4. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

6. The machine by the European Union CE certification and ISO quality system certification

7. Adopt integrated hydraulic control system, more reliable and easy for maintenance.

8. The cutting times of this machining tool is displayed and counted by MD11-1 NC

9. Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.

10. Shearing angle is variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.

Components:

Operation System: MD11-1 (Hongkong)
Oil pump(Gear Pump): Chengjie(Shanghai)
Blade:Jinshang (Shanghai) Material: 6crw2si /9crsi
Hydraulic Valves: Rexroth (Germany)/Omega(U.S.A.)/ (Janhu,China)
Electric parts: Siemens Germany/Shanghai CHINT
Main Seal:VALQUA(Japan)/NOK(Japan)

All components also can supply according to client's requirement.

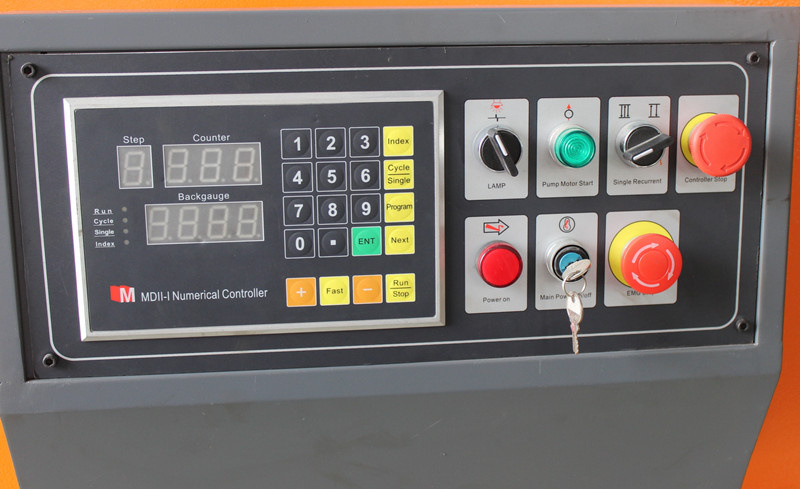

X-Axis Backague Control MD11-1 or E10(Standard):
l        Programmable 10 jobs.
l        Stroke counter function.
l        Retract function.
l        Power off Memorization
l        X-axis Software Limitation
l        Inch/MM.

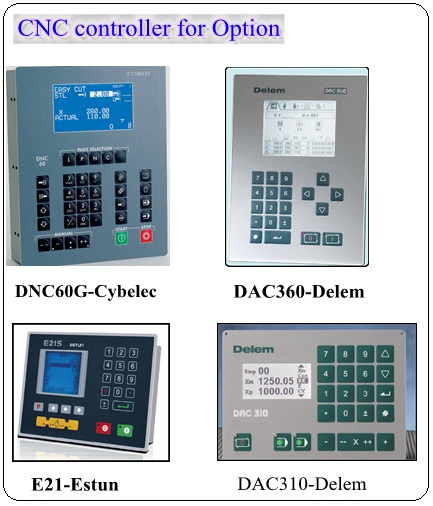

DAC360 CNC Controller - DELEM, NETHERLANDS(Option)

- X Axis Backgauge Accuracy ±0.1mm
Servo Motor Drive
Complete with:
- HIWIN Ball Screw
- HIWIN Linear Way
The DAC-360 control provides a complete solution for shearing machines. It includes the control of backgauge, cutting angle, stroke length and gap, based on state of the art electronics.
DAC-360 Featuring:
1)      Bright LCD screen
2)      Backgauge control
3)      Retract function
4)      Cutting angle control
5)      Cutting gap control
6)      Stroke length limitation
7)      Force control
8)      Manual movement of axes

Technical Data:

QC11Y Guillotine Shear Technical Data
Model	cutting thickness (450N/mm²)	Cutting Length	Cutting angle	No. of stroke per Minute	Motor power	Backgauge stroke	Dimension (L×W×H)
QC11Y	mm	mm	°	Min^-1	(kw)	mm	mm
6 X 2500	6	2500	0.5~1.5	20~45	7.5	750	3000 x 2075 x 1920
6 X 3200	6	3200	0.5~1.6	16~45	7.5	750	3630 x 2075 x 1970
6 x 4000	6	4000	0.5~1.7	14~45	7.5	750	4430 x 2075 x 2000
6 x 5000	6	5000	0.5~1.8	11~40	7.5	750	5430 x 2075 x 2520
6 x 6000	6	6000	0.5~1.9	9~36	7.5	750	6530 x 2075 x 2210
8 x 2500	8	2500	0.5~1.10	20~45	7.5	750	3040 x 2075 x 2600
8 x 3200	8	3200	0.5~1.11	16~45	7.5	750	3740 x 20756 x 1920
12 x 2500	12	2500	0.5-2	12-35	15	1000	3110 x 2575 x 2210
12 x 3200	12	3200	0.5-2	7-35	15	1000	3810 x 2575 x 2420
12 x 4000	12	4000	0.5-2	8-35	15	1000	4610 x 2575 x 2530
16 x 2500	16	2500	0.5-2.5	16-40	22	1000	3130 x 2655 x 2200
16 x 4000	16	4000	0.5-2.5	12-40	30	1000	4630 x 2655 x 2570
20 x 2500	20	2500	0.5-2.5	16-40	30	1000	3160 x 2855 x 2300
20 x 4000	20	4000	0.5-2.5	12-40	30	1000	4660 x 2855 x 2720
25 x 3200	25	3200	0.5-3.5	8~20	37	1000	3810 x 2900 x 3300
Note: all above mentioned data are subject to change without notification

Shanghai Bohai Machinery Manufacturing Co., Ltd., which was founded in 1989, is designated as a National High-tech enterprise.

It is one of the best and edest CNC plate processing manufacturer in China, it is also awarded the title of "China Top Brand", and Its products have been popular sold in China and Oversea for many years. It also passed ISO9001 Quality System Certificate and CE Certificate.

The headquarter of the Company is sited in Qianqiao Economic zone, Fengxian District, Shanghai City.

Now, the Company is staffed with 100 employees, among them there are 6 senior engineers, 5 technicians.

The Company boasts to have its own R&D facilities, the strongest R&D capabilities in China.

The people at Bohai have a long solid history of producing the most advanced machine tools in the business. They bring years of experience to the operation, and can make sure that the machine leaving the factory lives up to the highest expectations.

As the parent company, The company has 2 subsidiary companies under its control, namly, Shanghai Wanjiao Machine Tools Manufacture Co., Ltd, Maanshan Huayu Machine Tools Co., Ltd.

The Group Company is dedicated to the research and development, production and sales of plate processing machine including shearing, bending, rolling, etc., which are widely used in airspace, automobiles, metal works and various other fields, and have been exported to dozens of countries and regions in Europe, America and Southeast Asia.

Please enjoy our website and feel free to look over our great machines. We hope you will join the satisfied customers who own BOHAI machine, because we know you are our future.
