| Prod Model: |
RJ29 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Properties: |
Neurosurgery Instruments |
| Color: |
Black |
| Torque: |
7500gcm |
| No-Load Speed: |
0-900r/Min |
| Voltage: |
14.4V |
| Power: |
72W |
| Noise: |
63dB |
| Drill Type: |
Autoclavable Drill |
| Charging Time: |
About 3 Hours |
| Port: |
Shanghai |
| Feature: |
Reusable |
| Type: |
Cranial Drill |
| Material: |
Stainless Steel |
Product Description

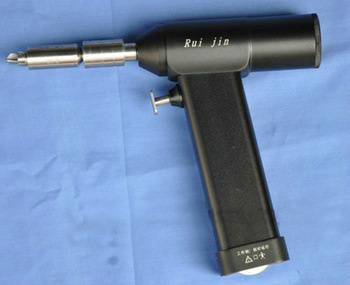

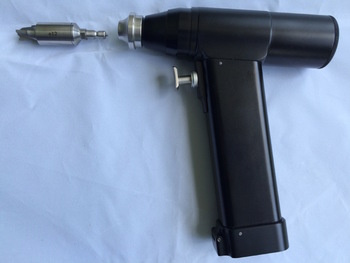

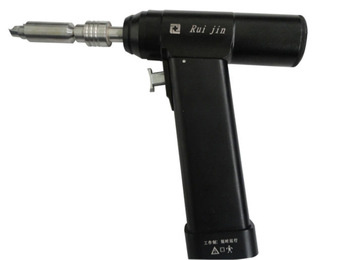

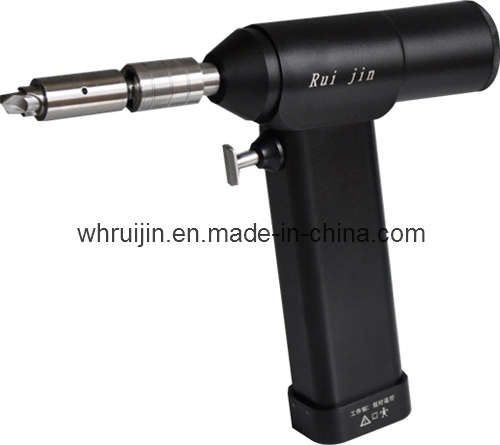

Medical electric surgical autoclavable cranial drill
1) Autoclavable type
2) Professional drill and saw manufacturer
3) Versatile and more reliable
4) Practiable and cost-effective
1, Technical Data:
1) Hand Piece
Working Voltage: 14.4V
Output Power: More than 20W
Unit Rise In Temperature: Less than 25 centi-degree
2) Charger
Input Voltage: AC 220V, 50Hz
Output Power: 14.4V, 900mA
Input Power: 30VA
3) Battery
Voltage: 14.4V
Charging Time: About Three Hours(Battery Couldn't be autoclavable)
4) Noise: Less than 63dB(A)
5) Input Voltage: AC 220V, 50Hz
6) Material: Stainless steel
7) Drill type: Autoclavable type
8) No-load speed: 900r/min
9) Torque: 7500gcm
10) Input power: 72W

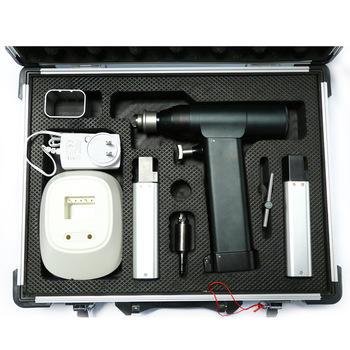

2, Standard configuration:
Autoclavable craniotomy drill(improved type)
1) One mainframe
2) One charger
3) One battery
4) One sterilizing channel
5) One craniotomy drill
6) One aluminum alloy box
3, Technical Merits
1) This product can be sterilized up to 135 centigrade
2) Fast mounting and dismounting
3) Automatic-stopping function assure the security of operation
4) Enhanced ergonomic design
5) Can be stopped by itself after drill through, and confirm the safety of the operation.
6) Excellet quality, portable, low noise, variable speed control, carbonless motor available for increased power, allows for easy selection of power during operation.
7) Scientific balance technics, reduces vibration and enhances handpiece control, afford surgeon a comfortable operation.
4, Packing details:
1) One set packed in the aluminum alloy box and then put in a carton
2) Size of aluminum alloy box: 38cmx28cmx13cm
3) Size of carton box: 41cmx32cmx15cm
5, Remarks:
Thanks a lot for your kind attention on our medical products, please feel free to contact me if you have any further question.
| Hand Piece | Working Voltage | 7.2V |
| | Output Power | ≥20W |
| | Unit rise in temperature | ≤25°C |
| Charger | Input Power | AC 220V,50Hz |
| | Output Power | 7.2V,900mA |
| | Input Power | 30VA |
| Battery | Voltage | 14.4V |
| | Charging time | About 3 hours |
