Name: Neodymium High Sensitivity Dual 12 Inch Line Attay System Speaker
Brand: tool-buy.com
SKU: 816912895
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 1000-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Guangzhou Zsound Proaudio Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	LA212
Frequency Response:	50Hz~16kHz(+-3dB)40Hz~18kHz(-10dB)
Color:	Black
Nminal Coverage:	90°(H)7.5°(V) Adjustable
Sensitivity(1W/1m):	Hf:113dB Spllf:100dB Spl
Power Rating:	Hf/Mf/Lf/:160W/350W/800W
Nominal Impedance:	Hf/Mf/Lf/:16/16/12ohm
Maximum Spl:	Hf:135/141dB Mf:130dB/136 Lf:129/135dB
Drivers:	Lf 2 X 12" ; Mf 1 X 10"; Lf 2 X 3"
Dimensions:	3671000550mm
Net Weight:	65kg
Noise:	<95dB
Hi-Fi:	Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Commercial
Certification:	RoHS
THD:	<0.005%
Monitor:	N/a

Product Description

Professional Stage Line Array System Dual 12'' Line Array Speaker

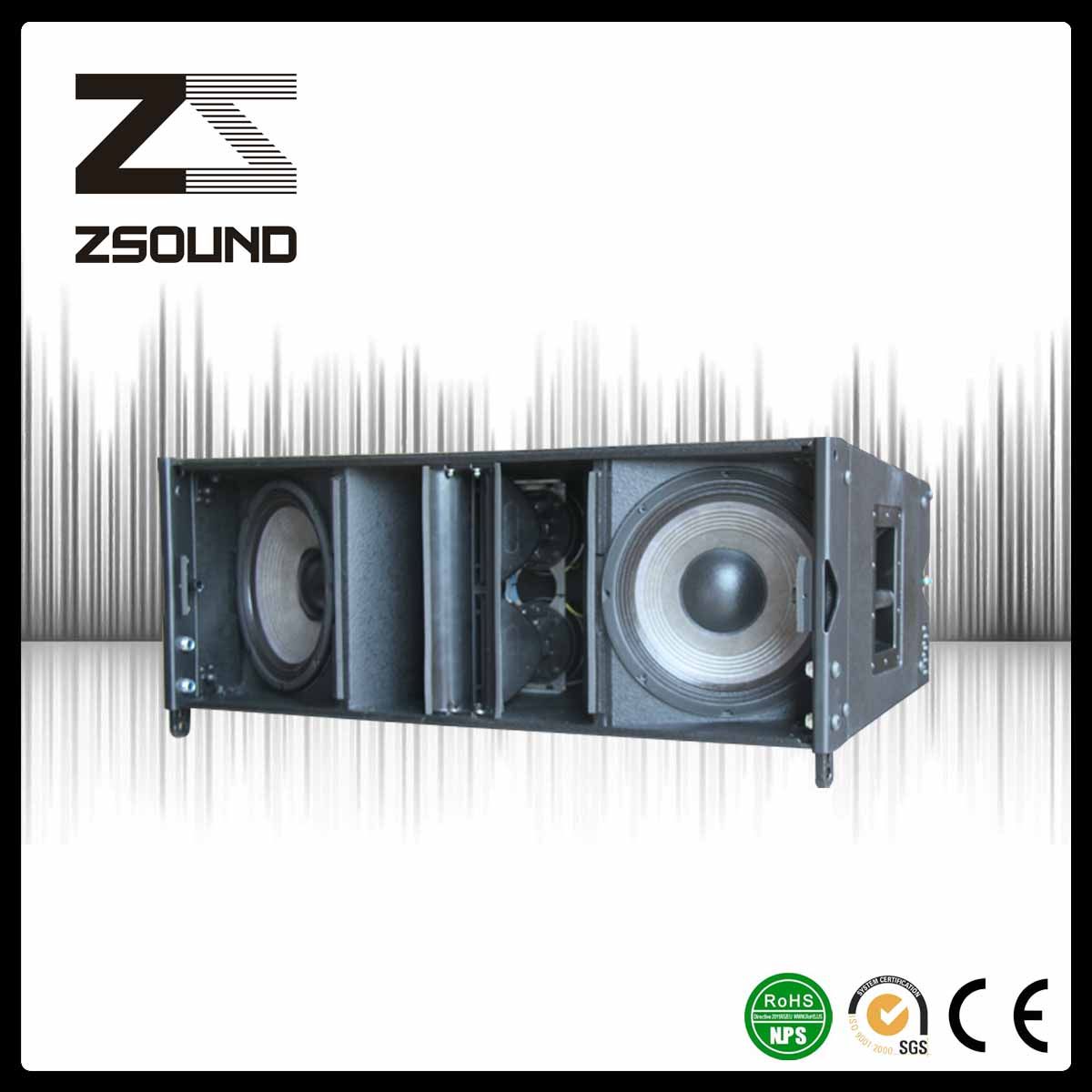

LA212 line array is a large-scale 3-way, tri-amped system, which provides frequency ranges from 50Hz to 16KHz. The system consists of 2X75 mm(voice coil) neodymium compression drivers, one 10″ neodymium MF driver and 2X12″ neodymium LF drivers to achieve an impressive headroom.

The Mid and Low frequency adopts a couple of 12″cone LF driver. Each unit's power handling is 400W and two units connect in series. One 10″ MF driver with high sensitivity is mounted at the rear of the HF driver to make up a coaxial configuration. A MF phase plug is mounted on the surface of the MF driver, which has excellently improved the directivity and increased sensitivity. The HF section utilizes 2x75mm(voice coil) neodymium complex film drivers coupled with a 90 °exponential constant horn via plane-wave transducer to make an coherent wave front. The HF section with 113 dB sensitivity can make the loudspeaker generate 140 dB peak SPL output.

LA212 is a trapezoidal speaker with the seamless gap between each cabinet.
The adjustable angle of the cabinet is 0-7.5°, 1° per step, the rigging hardwares are made of high strength steel. It is safe enough to hang 16 enclosures together, as the safety factor will reach up to 7:1.

The enclosure is constructed by multi-plywood, with panel in size 18mm, and other parts in size 15mm. It is finished with gray textured water paint. Two recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying. The rear panel connector plate carries 2 Neutrik Speakon NL8MP connectors for loop in and loop out connections. Besides, the enclosure is well protected by the gray mesh grill with acoustically reticulated foam.

TECHNICAL SPECIFICATION
FREQUENCY RESPONSE:	50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB)
NOMINAL COVERAGE (-6dB):	90°(H)7.5°(V) adjustable
SENSITIVITY(@1w/1m):	HF:113dB SPL MF:105 dB SPL LF:100 dB SPL
POWER RATING (AES):	HF/MF/LF:160W/350W/800W
NOMINAL IMPEDANCE:	HF/MF/LF:16/16/12 Ohm
MAXIMUM SPL:	HF135/141 dB MF:130/136 LF;129/135 dB
DRIVERS:	LF 2 x 12" (75mm Voice coil) neodymium woofer; MF 1 x 10"(65mm voice coil)neodymium mid-range; LF 2 x 3" neodymium compression driver

PHYSICAL DATA
DIMENSIONS(H x W x D):	367 x 1000 x 550mm
WEIGHT:	63kg
CONNECTORS:	2 x WP7 connectors
SPEAKER CABLES:	1-2+…LF 3-4+…MF 5-6+…HF
MATERIALS:	18mm,24mm birch plywood
FINISH:	Black water paint
GRILLE:	Black epoxy mesh grille with acoustically reticulated cloth
RIGGING	0,1 ,2,3,4,5,7.5 degree adjustable

Applications:

Touring performance

Stadium

Theatre

Feature:

Large-scale,thri-amp,three-way line array system

MF&HF parts is coaxial structure to optimise acoustic image

Neodymium high-sensitivity driver, maximum headroom

LA212 system advantage

1) All of speaker driver is used import and neodymuim drivers which is deal with and tested by 200 degree high temperature treatment.

2) The plywood, All the plywood was import from Russia. Just go ahead used in outdoor.

3) Our hander cup is the same as LA, D&B. All of our spare parts are used penn elco

4) the pin, our pin was use stainless steel , and must be pass 7:1 safe factor weight test. As you are a professiona people, you must know how important about the pin. If te pin is not good. It is danger when you rigging the line array speaker in the air."

5) Our design, the length about our speaker is 1000mm and 63KG. This is few factory can do that small size with maximum heatroom, We also use mort than ten years to choosie the best speaker drive for our line array speaker system. And our MF&HF parts is coaxial structure to optimise acoustic image. We can repair it when the speaker was in problem.

6) LA212 is recommanded to match LA215S (double 15" flying sub), S118H, S218H(,SS2 single and double 18" horn loaded subs) powerful subwoofers.

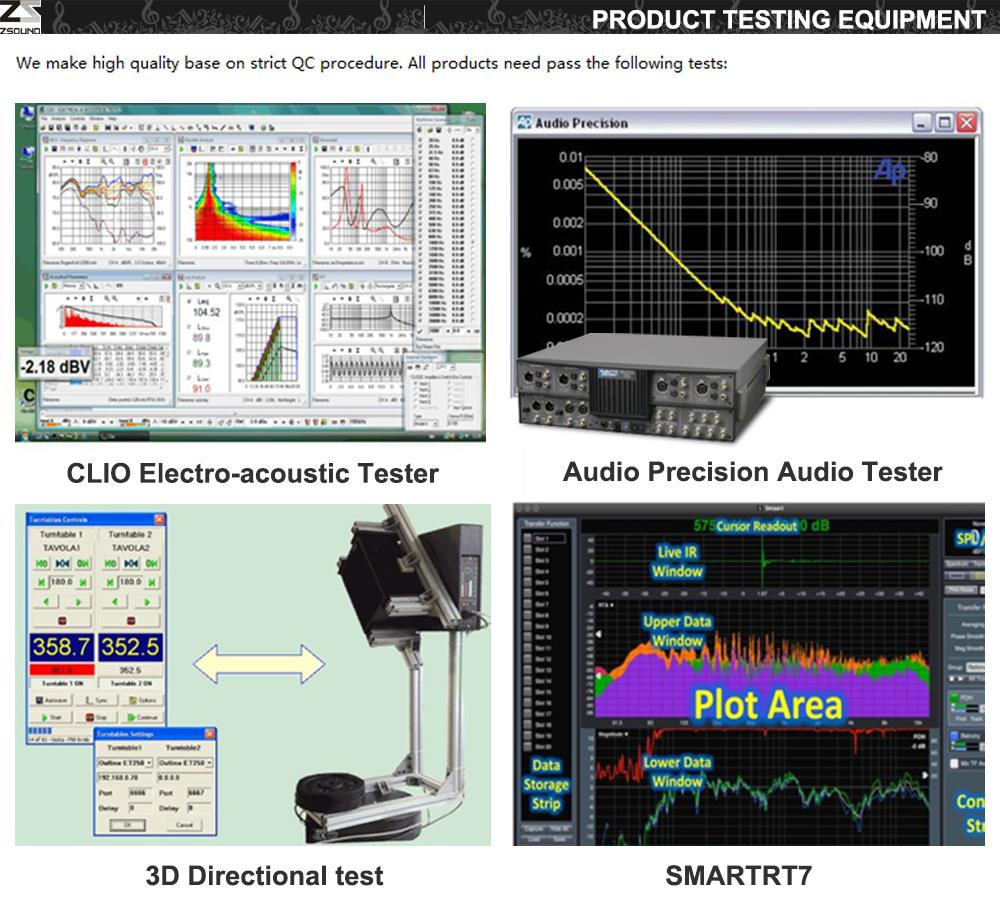

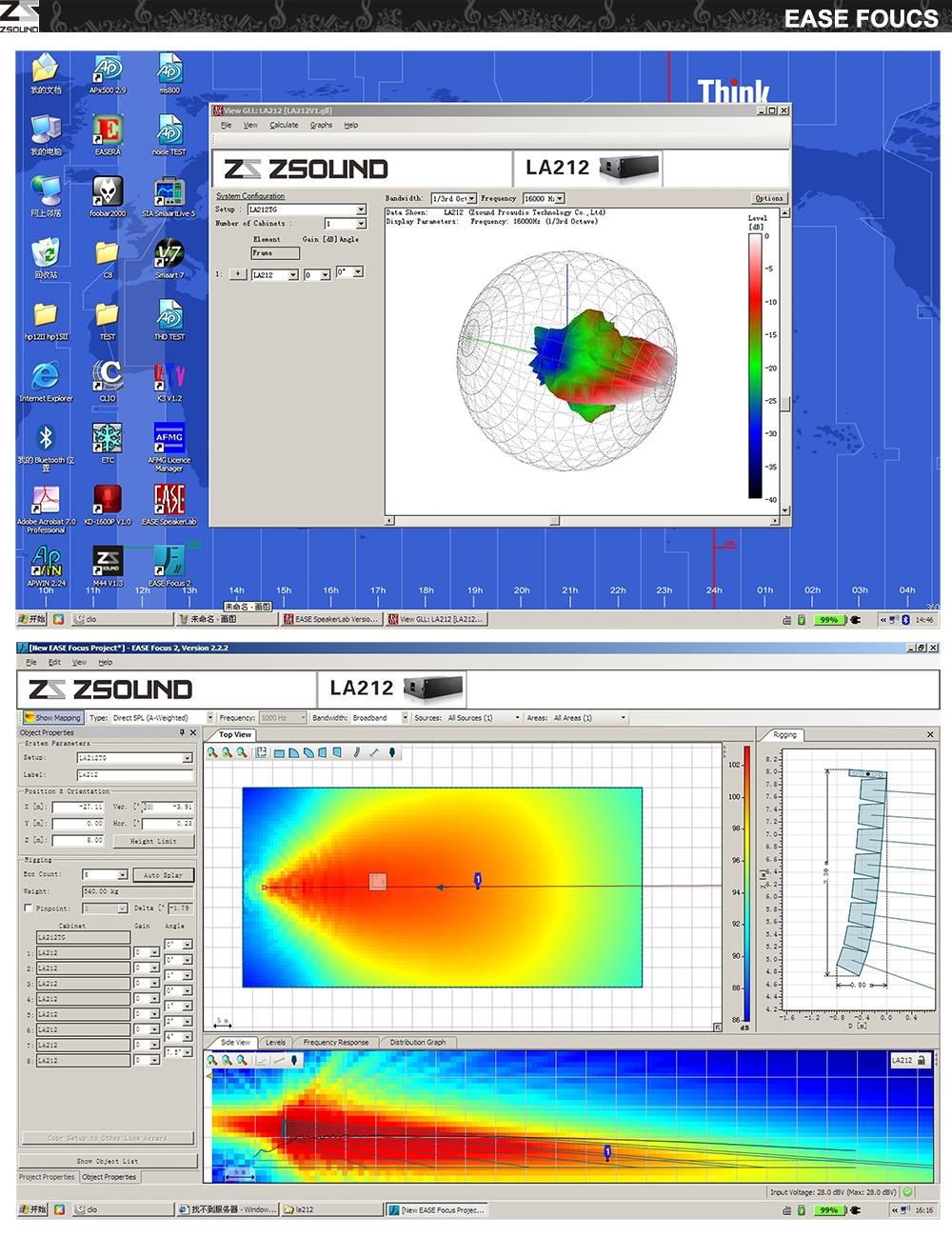

7) All the technoloy data is real. We use SMAART7, 3D directionality test, and CLIO electroacoustic measuring system, audio precision test,And all the data is open. We also have our own EASEFOCUS data and GLL picture.

FAQ:

Q1: How long is the warranty for the speakers?

A1: 1year warranty.

Q2: How about the delivery time?

A2: 3-7days for stock.

10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.

Q3: What kind of payments does ZSOUND support?

A3: T/T, Western Union, Cash are accpeted.

Q4: What's the MOQ?

A4: MOQ is 1pcs

Q5: Can you produce according to customers' design?

A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .

Q6:Can you tell me your main customers?

A6: That's our customers privacy, we should protect their information. At the same time, please rest assured that your information is also safe here.

Our Advantages:

1) Global leading professional Manufacturer of professional speaker and amplifier.

2) Product quality: Superior speaker and amplifier, top technology and quality.

3) Certificate: CE,RoHS,GS,SGS,ISO9001

4) Monthly Production Capacity: 2000pcs

5) Fast delivery: Get your order when you need it.

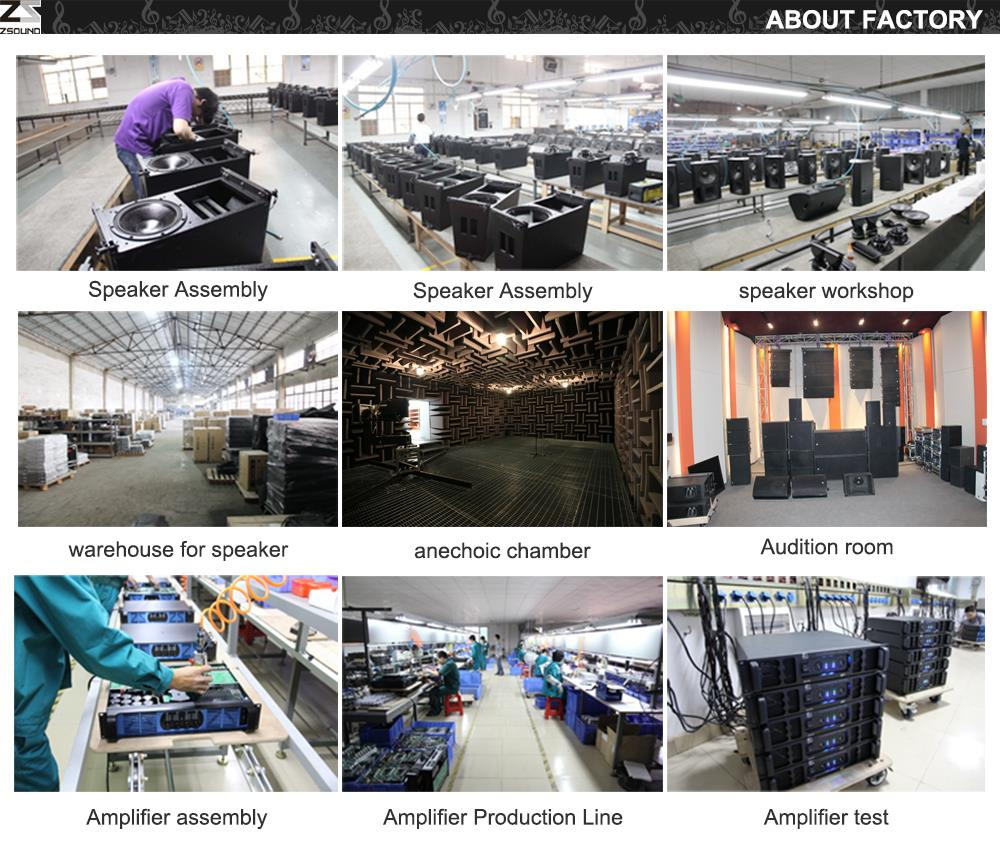

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers

7) Convenient Transportation: 1 hour to Baiyun Airport

8) 24 hours on line service.
