| Prod Model: |
KY-4000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
Ky-4000 |
| Wire Diameter: |
2-4mm |
| Width: |
4m |
| Hole Size: |
40-80mm |
| Control System: |
PLC Automatic Controller |
| Product: |
Chain Link Fence Knitting Machine |
| Application: |
Fence Mesh |
| Hole Shape: |
Diamond |
| Weave Technique: |
Plain Weave |
| Surface Treatment: |
Galvanized |
Product Description

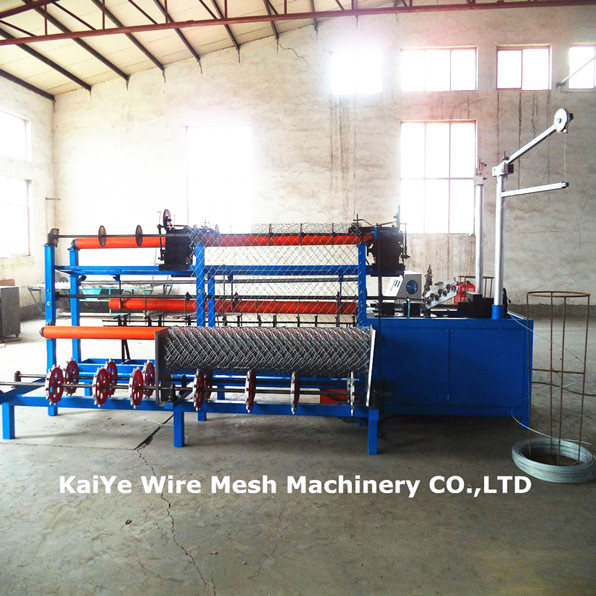

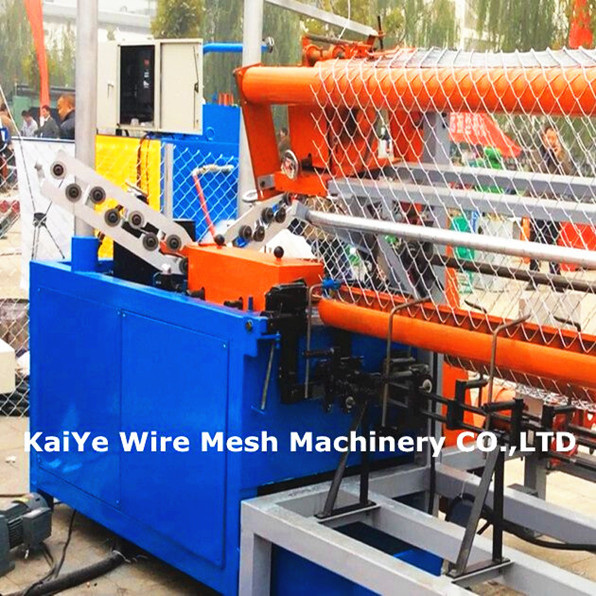

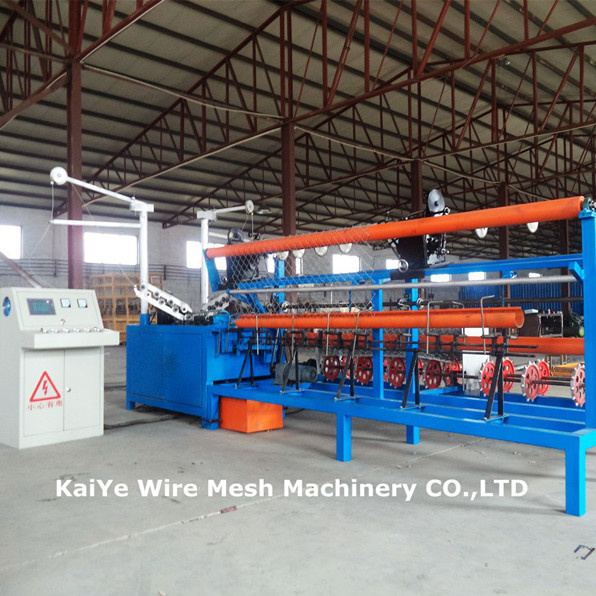

Automatic Chain Link Fence Machine
Working Principle
1. The wire is taken in from the pay-off stand and passed through the dies where the diamond size takes place.Different gap sized.
2. After passing from the die, the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process.
3. Once the stitching is complete, the woven is manually glided down to enable the next switch to take place.
4. The chain link is automatically wound to form rolls when the desired length is setted.

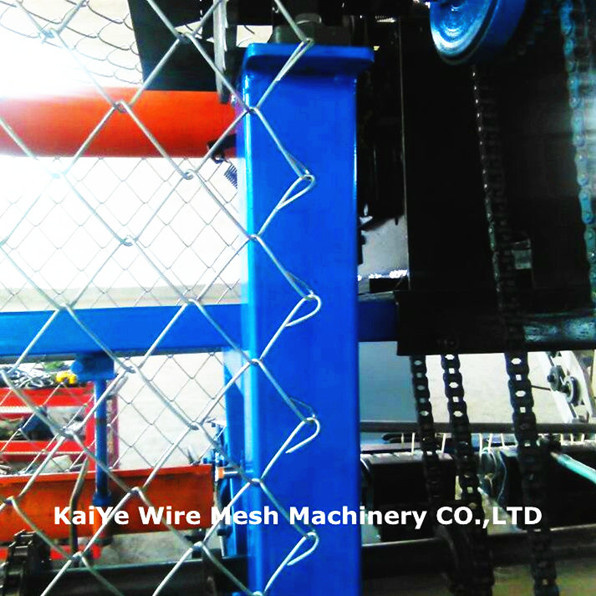

5. One side or both side of the end of net hole is twisted or with burr in edge.
6. Use rolling side machine to make it into rolls.
Advantage1. The machine is controlled by PLC automatic controller, so only one person is needed to operate it.2. One wire feeding which can reduce the breakdowns.3. Wide width weaving scope: 2.0-4.0mm.4. The high productivity for this machine can be 100m²/h.5. The width scope can be 600-4000mm, and we can customize it for you.6. The mesh size can be 40x40-80x80mm, and can be changed according to the mould.
Packing and shipping:
1. Debugged in two parts for packaging machinery, plastic mold package with good conduct tray packaging. Including accessories, kit, pump, control cabinet (accessories and other details can contact me for more information).
2. We have our own freight forwarding companies and packaging company, you can also specify a freight forwarding company in accordance with the customer for shipping by our customs.
| Type | KY-4000 |
| Origin | Hebei,China |
| Control system | Machine is controlled by PLC automatic controller, so only one person is needed to operate it. |
| Manufacturing process | Crochet Made |
| Characteristic | high efficiency,save electricity,low noise,safety ,good after-sales |
| Size | Wire diameter:2.0-4.0mm
Hole size:40-80mm
Width:4m
Speed:80-120m²/h
Power:7.5KW
Weight:4.2T |
| Suitable wire to the machine: | the tensile scope of the wire 300-500N/m²
|
| Packing | In nude,capacity to reduce freight cost savings,or wooden pallent |
| Payment | 30% in advance, 70% B/L copy within 7days by T/T |
| Delivery | Within 20-30 days after receipt advance payment |
| MOQ | 1 Sets |
| Special Note | Special type can be made according to your requirement |
Our Company
Anping County KaiYe Wire Mesh Machinery CO.,LTD Factory has been established in 1999. Backed by 15 years experience and vast knowledge, we are engaged in offering high quality Wire Mesh Machine to fulfill the needs of our customers.Why Us?
1. Rich Domain Experience.
2. Professional Engineers.
3. More than 120 Workers.
4. With the occupying area of 6800 square meters.
5. Wide Business Network.
6. High Quality and Good After-sale Service.
7. Near Tianjin Port
The Warranty
1 With one year guarantee and the good after-sale service.
2 Engineers can go to your company for the installation.
3 As per your special requirement, we can discuss it.Payment Terms
1. 30% T/T in advance, 70% payable against the copy of the B/L.
2. L/C is also acceptable.
3. As per your special requirement, we can discuss it.
Your questions, enquiried and comments are important to us.
Kindly contact us via any of the channels available or just drop us an enquiry.
KaiYe Wire Mesh Machinery Co., Ltd. (Original China Anping Jia Sheng Welding equipment Factory) was founded in 1998, which is a professional manufacturer in wire mesh machine field of China with sophisticated technology. We have ISO9001: 2008, and SGS certification. Our customers are from all over the world, such as the United States, Brazil, Mexico, Malaysia, Australia, India, Russia, Iran, Kazakhstan etc.
In order to speed up the development and promote export, enhance overall competitiveness, our company set up a wholly owned subsidiary --ShiJiaZhuang Golden Harvest industry &trade Co., Ltd. By the efforts of all staff, our company has now developed into a research and development, design, manufacturing, sales for the integration of large-scale professional welding equipment manufacturing enterprises.
Our wire mesh machinery technology is advanced, Aesthetically pleasing, stable performance, low noise, easy operation, save energy and high efficiency.
In order to supply better service for our customers, We insist on the following principles.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee, and once the equipment damage during this period of time, we supply free of charge and will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
5. We can making machines according to customer's requirements.
