| Prod Model: |
FE series |
| Type: |
Combination Wrench |
| Material: |
Carbon Steel |
| Standard: |
German Type |
| Surface Treatment: |
Phosphorization |
| Feature: |
Anti-Magnetic |
| Brand: |
Fareast |
Product Description
Shanghai Fareast Technology Co.,Limited can supply Pneumatic Torque Wrench, Electric Torque Wrench, Hydraulic Torque Wrench
1)hydraulic torque tools are widely used in mines, power plants,wind power, hydropower, thermal power, nuclear power, metallurgy, aerospace, shipbuilding,petroleum, chemical, railway, machinery manufacturing and other industries all over the world.

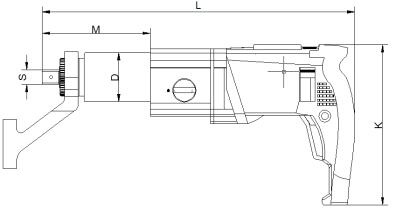

2: Drawing
3) Model Listings
| Model | Min torque(N.m) | Max torque(N.m) | Drive S(mm) | D(mm) | L(mm) | K(mm) | M(mm) | Weight(Kg) | Idle speed
(rpm) |
| FEJHEW-08S | 100 | 800 | 3/4" | 65 | 420 | 205 | 145 | 5 | 30 |
| FEJHEW-16S | 200 | 1600 | 1" | 74 | 460 | 205 | 195 | 6.5 | 12.2 |
| FEJHEW-28S | 400 | 2800 | 1" | 78.5 | 480 | 205 | 215 | 8.2 | 6.3 |
| FEJHEW-40S | 700 | 4200 | 11/2" | 88 | 500 | 205 | 235 | 9.5 | 5.1 |
| FEJHEW-60S | 1000 | 6000 | 11/2" | 113 | 529 | 205 | 264 | 14.9 | 2.6 |
| FEJHEW-80S | 1200 | 8000 | 11/2" | 120 | 539 | 205 | 274 | 16.8 | 1.8 |
| FEJHEW-100S | 2000 | 10000 | 11/2" | 128 | 555 | 205 | 290 | 18.3 | 1.5 |
| FEJHEW-120S | 3000 | 12000 | 11/2" | 128 | 555 | 205 | 290 | 18.5 | 1.5 |
| Model | Min torque(N.m) | Max torque(N.m) | Drive S(mm) | D(mm) | L(mm) | H(mm) | weight(Kg) | Idle speed (rpm) |
| FEJHEW-08A | 100 | 800 | 3/4" | 65 | 320 | 249 | 6.6 | 30 |
| FEJHEW-16A | 200 | 1600 | 1" | 74 | 320 | 297 | 8.1 | 12.2 |
| FEJHEW-28A | 400 | 2800 | 1" | 78.5 | 320 | 317 | 9.8 | 6.3 |
| FEJHEW-40A | 700 | 4200 | 11/2" | 88 | 320 | 337 | 11.4 | 5.1 |
| FEJHEW-60A | 1000 | 6000 | 11/2" | 113 | 320 | 366 | 16.5 | 2.3 |
| FEJHEW-80A | 1200 | 8000 | 11/2" | 120 | 320 | 376 | 18.4 | 1.8 |
| FEJHEW-100A | 2000 | 10000 | 11/2" | 128 | 320 | 395 | 20 | 1.5 |
| FEJHEW-120A | 3000 | 12000 | 11/2" | 128 | 320 | 395 | 20.1 | 1.5 |
4) Contact us for more Pneumatic torque wrench,Electric torque wrench,hydraulic torque wrench models
Shanghai Fareast Technology Co., Limited located in Shanghai City, China, eastablished in 2002, our mainly business is diesel engine, diesel engine generator, locomotive engine, fire pump set and some other business
Our diesel engine power from 14KW to 1800KW, diesel generator power from 8KW to 2000KW
Shanghai Fareast technology Co., Limited has widely cooperated with international and domestic famous diesel engine and spare parts manufacturer, such as Cummins, Deutz, Isuzu, Perkins, Lovol, Shanghai, Wudong, Yangdong, Quanchai, Laidong, ABB so on. Spare parts such as: ABB, Plelstick, Wartsila, EMD, MTU, KKK, Garret, Holset
With the convenience operation, advanced technology, ow noise, low vibration, easy starting, creditable capability advantage. Our products can be widely used in factories, mines, banks, hospital, supermarket, telecommunication, oil filed, construction filed, marine engine and so on. Our high quality engine, generator sets and fire pump sets have been exported to more than 30 countries and regions, some of our clients become our agency in local market.
Our company tenets is: Good quality is the key to survive! Good credit standing is the key to develop!
