Prod Model: |
JH25 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Capacity Range: |
110ton to 315ton |
Power: |
380V/50Hz/3phase |
Delivery Time: |
30 Days |
Stroke Speed: |
30-50spm |
Certificate: |
CE |
Warranty: |
One Year |
Throat Depth: |
350-490mm |
Distance Between Uprights: |
1470-2170mm |
Bolster Surface Height: |
900-1100mm |
Motor Power: |
11-37kw |
Type: |
General Punching Machine |
Controlling Mode: |
Artificial |
Automatic Grade: |
Semiautomatic |
Power Source: |
Mechanical Drive |
Precision: |
High Precision |
Product Description

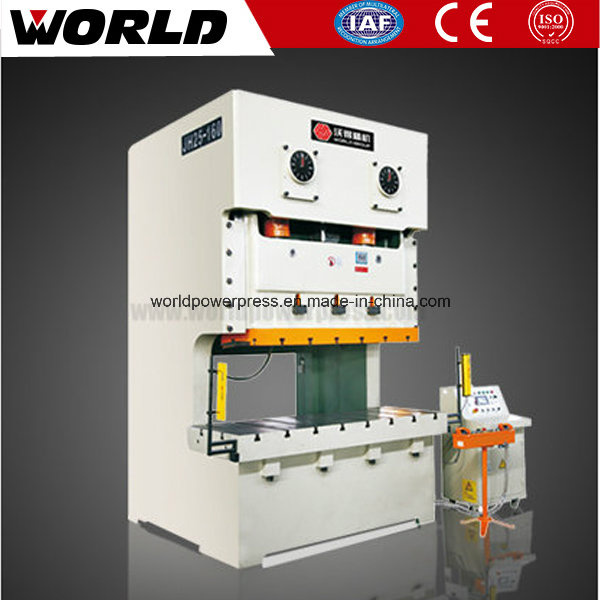

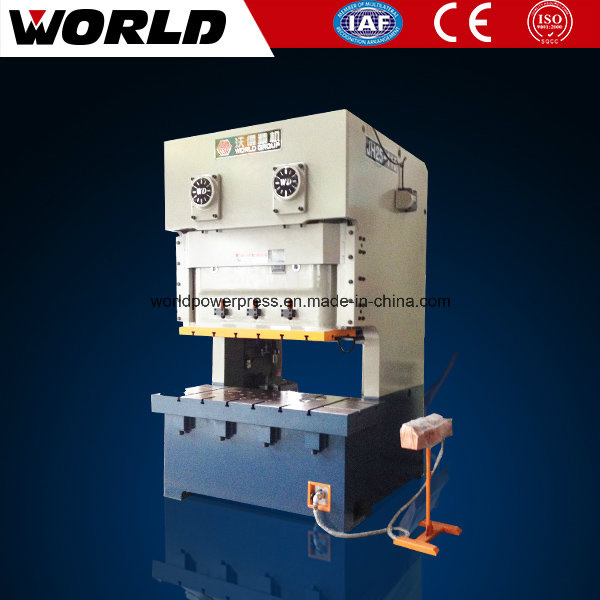

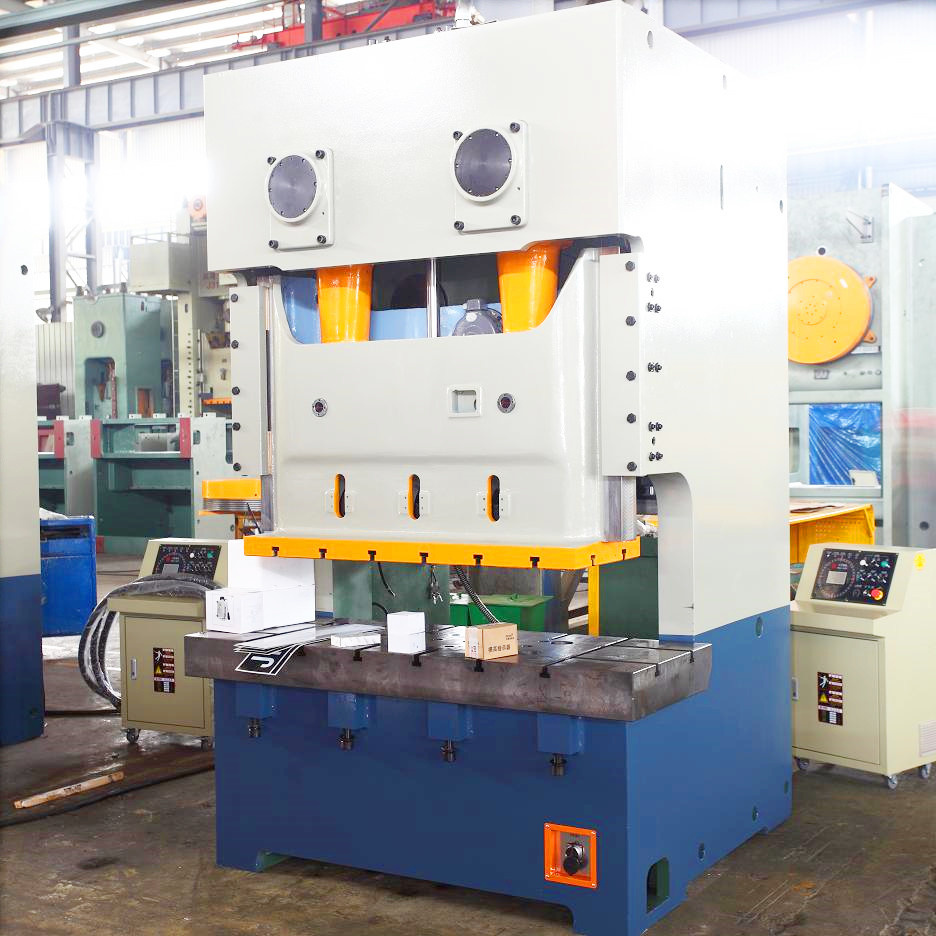

power press
Features:
1. Steel welded body, heat treatment, high rigidity, accuracy and stability;
2. Double crank, high frequency quenching, grinding treatment;
3. Hex retangular guideway;
4. Wet clutch, hydraulic overload protector;
5. Auto lubrication, electric die adjustment.
Details:
1. C frame steel welded body, heat treatment to release stress, rigid and strong.
2. Big table size with two power points, better for progressive die or big sheet blanking process.
3. Wet type oil bath combined clutch and brake, more compact, lower noise with longer service life.
4. Total 6 surfaces guide ways of slide, with bronze plate, higher precision. Slide is equipped with a motor to adjust the slide with digital displayer.
5. Famous brand PLC control, both electric and mechanical cam controller with encoder, simenz or schneider electric parts, all are good quality and easy to get the parts all the world.
6. The press is equipped with a touch screen. The crankshaft angle is showed on the panel and you can set the lubrication frequency by the touch screen. And you can check the press working and maintenance status with the screen.
7. Hydraulic overload protected system to protect the die and the press. It is east to reset to normal status with the touch screen.
8. Auto grease lubrication system and manual thin oil lubrication system are both equipped.
Options: Quality certificate:
- light curtain for safety - ISO 9001
- inverter for adjustable stroke speed - CE
- variable speed motor for adjustable stroke speed - SGS inspection if needed
- cushion
- hydraulic die quick change device
Warranty and service:
- one year warranty for whole press.
- all spare parts are available as we produce most of the parts in our factory.
- it is easy to get the electric parts as all are international famous brands.
- we can provide technical support via email, phone or video.
- we can send out engineers for service, installation or training with reasonable additional cost.
- English operation and maintenance manual is provided with the press.
- All safety warning tags and control panels are in English.
Our products range:
- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
- hydraulic shearing machine
- hydraulic press brake and cnc press brake
Specifications of JH25 double crank press:
ITEM | UNIT | JH25-110 | JH25-160 | JH25-200 | JH25-250 | JH25-315 |
Nominal Capacity | KN | 1100 | 1600 | 2000 | 2500 | 3150 |
Slide Stroke | mm | 180 | 200 | 250 | 280 | 300 |
Slide Strokes | Fixed | Times/min | 65 | 55 | 45 | 35 | 35 |
Variable(optional) | Times/min | 35-65 | 30-55 | 25-45 | 25-35 | 25-35 |
Max. Die Height | mm | 400 | 450 | 500 | 550 | 550 |
Die Height Adjustment | mm | 90 | 100 | 110 | 120 | 120 |
Throat Depth | mm | 350 | 390 | 430 | 470 | 490 |
Distance Between Uprights | mm | 1470 | 1600 | 1920 | 2190 | 2170 |
Bolster Size | Forward-Rear | mm | 680 | 760 | 840 | 920 | 940 |
Left-Right | mm | 1880 | 2040 | 2420 | 2700 | 2800 |
Thickness | mm | 155 | 165 | 170 | 180 | 190 |
Slide Bottom Size | Forward-Rear | mm | 520 | 580 | 650 | 700 | 700 |
Left-Right | mm | 1400 | 1500 | 1850 | 2100 | 2100 |
Bolster Surface Height | mm | 900 | 900 | 1000 | 1100 | 1100 |
Overall Dimensions | Forward-Rear | mm | 1820 | 2080 | 2370 | 2690 | 2730 |
Left-Right | mm | 1920 | 2100 | 2450 | 2730 | 2800 |
Height | mm | 3100 | 3280 | 3730 | 4110 | 4110 |
Motor Power | KW | 11 | 18.5 | 22 | 30 | 37 |
Weight(approximate) | kg | 14000 | 20000 | 28000 | 36000 | 39000 |
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.
We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.
We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.
Installation Support
We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
