New Condition Diamond CNC Auto Metal Cutting Machine Universal Optimum Lathe Ck6432A
| Price: |
US $ 7000-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
CK6432A |
| Max. Diameter: |
360mm |
| Max. Length: |
450/700mm |
| Material: |
Cast Iron Bed |
| Spindle Bore: |
60mm |
| Control System: |
GSK,Siemens,Fanuc |
| Color: |
Blue,Black or Other Colors |
| Power: |
380V or Others |
| Warranty: |
One Year |
| Protective Cover: |
Semi-Rugged or Armour-Protected |
| Process Type: |
Metal Turning |
| Type: |
Horizontal Lathe |
| Processing Accessory: |
Chuck CNC Lathe |
| Power Source: |
Electric |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Setting Mode: |
Table |
| Precision: |
High Precision |
| Tool Holder: |
4/6/8 Tool Holder CNC Lathe |
Product Description
Product Description

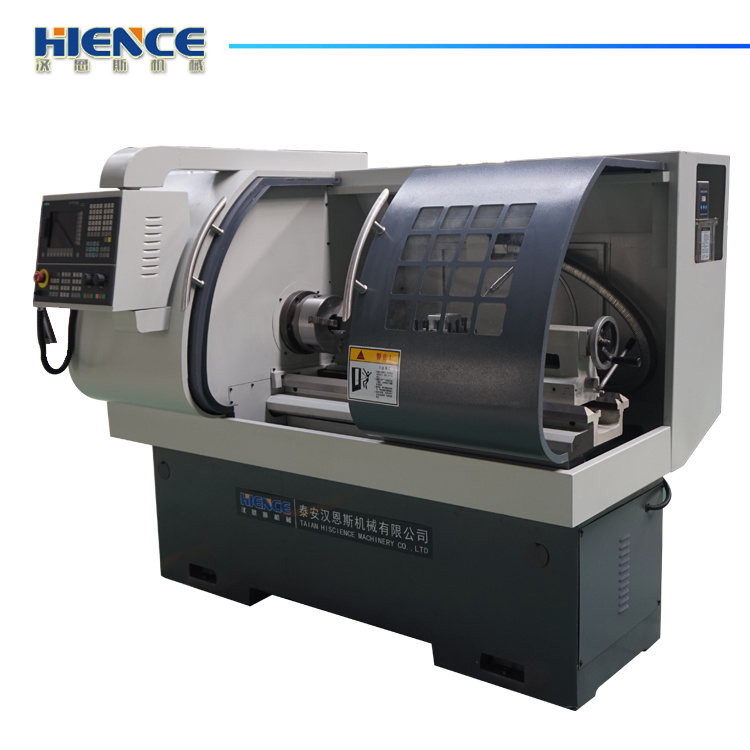

New condition diamond cnc auto metal cutting machine universal optimum lathe CK6432A
A.Standard configuration and specification
1.Cnc system :GSK928(China 's first brand)English interface
2.4-position tools
3.Automatic lubrication pump
4.Manual 3-jaw chuck Φ200mm
5.Manual tailstock
6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)
7.Water cooling system
8.work lights
9.Tailstock Center
10. Meter / Inch Box
11.Tool Box with Tools
12. Operation & Service ManualCommunity Gear
ITEMS | Specifications |
Max. swim over bed | Φ360mm |
Max. swim over carriage | Φ150mm |
Max. length of work piece | 450/700mm |
Range of spindle speed | 150-2500rpm |
Spindle bore | Φ60mm |
Taper of spindle bore | MT6 |
Stations of tool carrier | 8 tool post |
Max size of cutter arbor | 16mm×16mm |
Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm |
Moving speed of post | (Z) long 8 m/min, (X) cross 4 m/min |
Taper of tailstock quill | MT4 |
Max. range of tailstock quill | 100mm |
Motor power | 4KW |
Packing size(length ×width ×height) | 1850 mm×1100mm×1550mm |
Net weight | 1500kg |

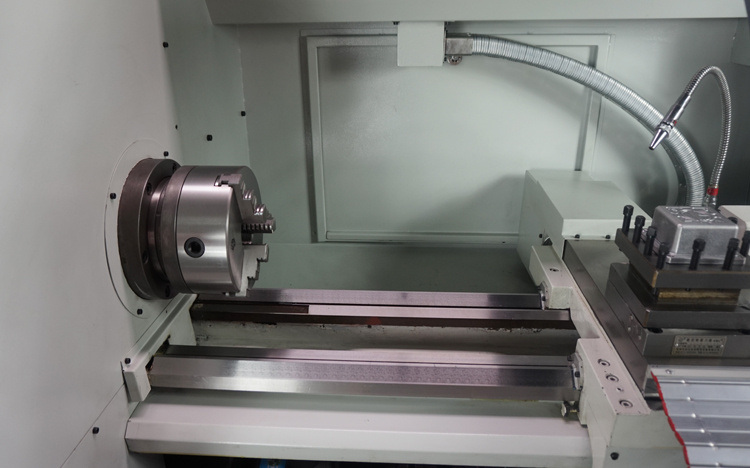

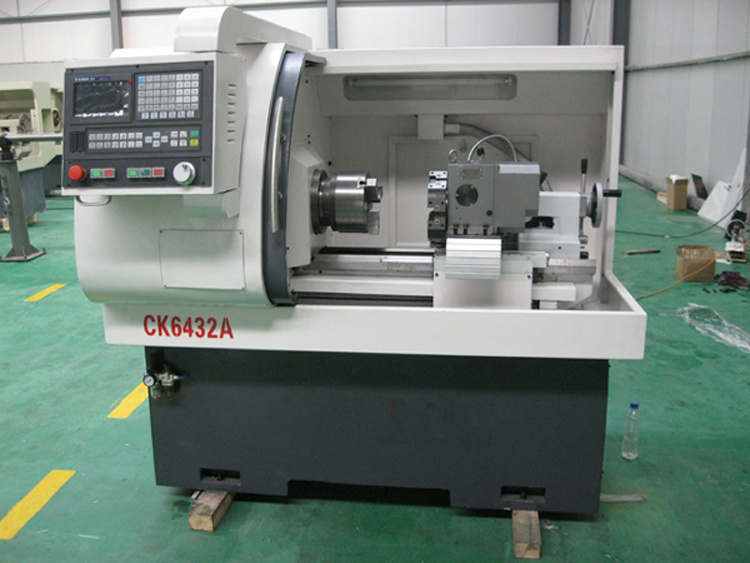

B.Pictures of CK6432A
C.Select configuration
1.CNC system: Siemens808D,(warranty service)
2.Hydraulic chuck , pneumatic chuck,
3.Hydraulic tailstock, pneumatic tailstock,
4.Automatic feeder,
5.Horizontal six-station turret.
Company Information
FAQ:
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your
detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what
is your request specifcation or what is your parts, so let our seller recommend suitable machine to you.
We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and
other quality certificate.
4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay
to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special
machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.
We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.
Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.
CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.
The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.
The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.
Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
