New Design Alloy Wheel Repair Diamond Cutting Machine Lathe Awr28h

New Design Alloy Wheel Repair Diamond Cutting Machine Lathe Awr28h
Price: US $ 13000-15000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union
Prod Model: AWR28H
Colour: Blue or Black
Controller: CNC or PC
Voltage: 3 Phase 380 or Your Request Voltage
Cutting Effect: Rainbow Line or Cutting Line
Detection Way: Touch Ruby Probe System
Cutter: Special Diamond Cutter
Optimized Software: Designed for Optimize Program
Clamping Form: 3 Jaws Chuck
Max Wheel Size: up to 27 Inch,30 Inch,or 32 Inch
Oversea Service: Offer
Type: Horizontal Lathe
Processing Accessory: Chuck CNC Lathe
Tool Holder: Single-tool Holder CNC Lathe
Power Source: Electric
Controlling Mode: CNC
Automatic Grade: Automatic
Setting Mode: Floor-type
Precision: High Precision

Product Description

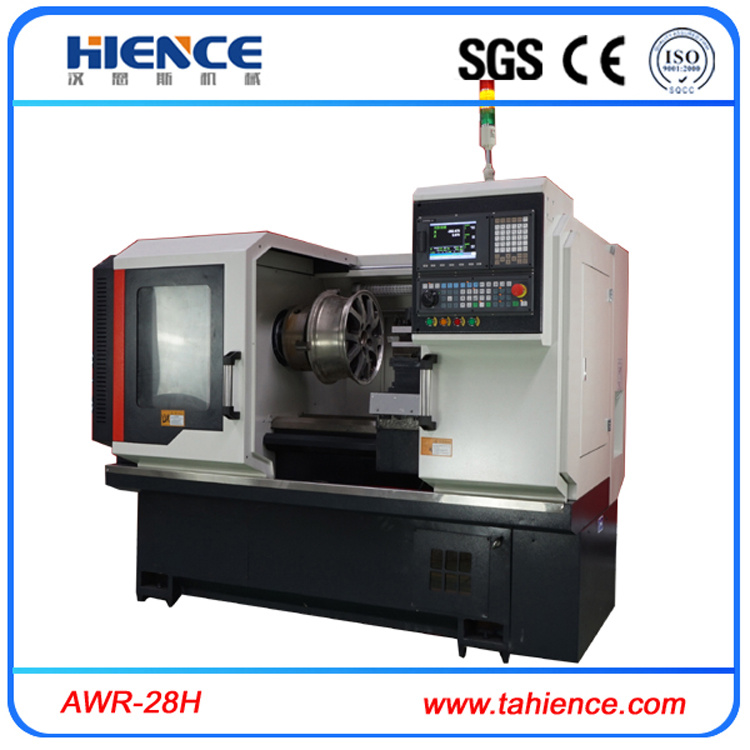

new design alloy wheel repair diamond cutting machine lathe AWR28H





Specification list



ITEMS

AWR28H

Max. swing over bed (mm)(inch)

Φ770(30')

Max. Diameter of wheel(mm) (inch)

Φ720(28')

Cross slide travel (mm)

390

Width of the rail (mm)

300

Length of the rail (mm)

1300

Size of the three-jaw chuck (inch)

12'

Range of spindle speed (RPM)

50-2000

Spindle speed control

Automatic

Spindle bore  (mm)

Φ82

Taper of spindle bore

1:20(Φ90)

Taper of spindle nose

A2-10

Adjustable stroke of carrier in X direction

100mm

Max. size of tool post

25×25mm

Stations of tool carrier

4 position

Min. setting unit of motor

    (Z) long    0.001mm,    (X) cross   0.001mm

Moving speed of post

    (Z) long     8m/min,     (X) cross    6m/min

Motor power

7.5KW

Machine size

(L/W/H) (mm)

2200/1600/1860

Package size

2300/1750/2100

Net weight

2600KGS
























Taian Hiscinece Machinery Co., Ltd is located in Shandong province, China. Is dedicated to the research and development, production and sales of CNC machine tools.

We are manufacturer and trader of CNC lathe, Slant bed Horizontal CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling machine & machining center, Drilling machine, Manual engine lathe, CNC Turning Machine center, accessories of CNC machine.

Our company has developed one type new CNC machine for alloy wheel repair lathe machine which can probe wheels face and cut automatically.

CNC machine tool has been applied to the airline industry sector, gradually expand to the automobile, shipbuilding, machine tools, construction machinery manufacturing industry. For copper, aluminum, iron, plastic and other precision parts manufacturing, applicable to instruments, watches, cars, motorcycles, bicycles, eye wear, stationery, hardware, sanitary ware, electronic components, connectors, computers, cell phones, electronics, military and other industries in bulk machining small parts, especially the more complex parts.

The company has passed CE ISO SGS, Our products are hot sale in the domestic market, and meanwhile, they have been exported to Europe, America, Southeast Asia and othe countries, more than 100 countries in Worldwide.

The company adjacent to Qingdao, Shanghai, Tianjin, Lianyungang Port as well as Qingdao, Jinan, Shanghai, Beijing Airport.

Welcome all customers to have cooperation with us. We will offer our best machine and service to you.
