| Prod Model: |
SH-XE4-08 |
| Factor Of Safety: |
2.5 |
| Driven System: |
Electric System, Vacuum System, Hydraulic System |
| Max. Glass Size: |
5000mm (L) X 2500mm (W) X 4-25mm (T) |
| Min. Glass Size: |
1000mm (L) X 1000mm (W) X 4-25mm (T) |
| Standard Working Power: |
24V DC Batteries |
| Noise Level: |
< 60 dB |
| Tilting: |
Electric Hydraulic Tilt 90 Degree |
| Rotation: |
Manual Rotating 360 Degree |
| Weight (Kg): |
200kg |
| Application: |
Lift and Handle Panel Materials Inside Factory or |
Product Description
VACUUM LIFTER MOUNTED ON FORKLIFT/STACKER
MAIN FEATURES
1. Mounted on forklift or stacker for lifting, transporting and handling panel materials.
2. Safety protection by closed vacuum circuits system and vacuum automatic compensation system.
3. Each vacuum circuit includes Thomas brand vacuum pump and vacuum pressure switch, vacuum modulator and filter.
4. Signal light indicate a decrease in vacuum, meanwhile vacuum automatically replenishes.
5. Electric hydraulic pump for tilting and rotating option.
6. Power supply by rechargeable batteries 24V DC with battery gauge indicating the batteries volume.
7. Controls by wire remote control, easy to operate vacuum and handling performances.
- TECHNICAL DATA
| Model | SH-XE4-08 |
| Safe Working Load | 500 kg |
| Factor of Safety | 2.5 |
| Driven System | Electric system, vacuum system, hydraulic system |
| Suction Cup | Round sucker; NBR material; oil & abrasion resistance; suction 330kgf; location adjustable; with buffer spring for height compensation |
| No. & Size of Cups | 8 pads; 300mm diameter |
| Structure | Steel material; ergonomic design |
| Max. Glass Size | 5000mm (L) x 2500mm (W) x 4-25mm (T) |
| Min. Glass Size | 1000mm (L) x 1000mm (W) x 4-25mm (T) |
| Standard Working Power | 24V DC batteries |
| Noise Level | < 60 Db |
| Tilting | Electric hydraulic tilt 90 degree |
| Rotation | Manual rotating 360 degree |
| Safety Protection | Closed vacuum circuits and vacuum compensation system |
| Application | Lift and handle panel materials inside factory or outside projects. |
| Size (mm) | 1300mm (L) * 1050mm (W) * 1100mm (H) |
| Weight (kg) | 200kg |

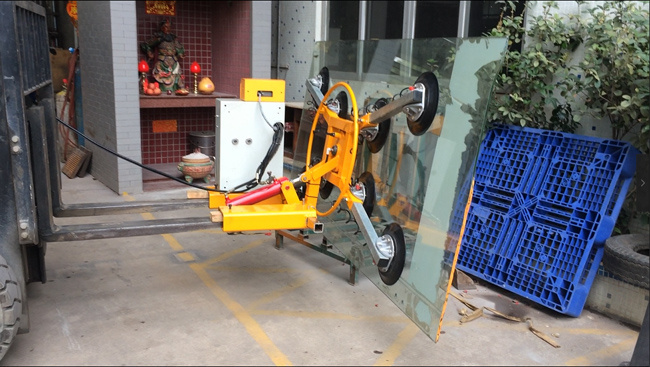

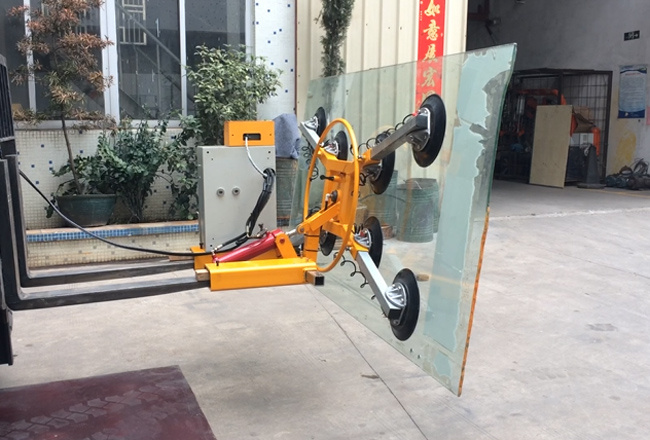

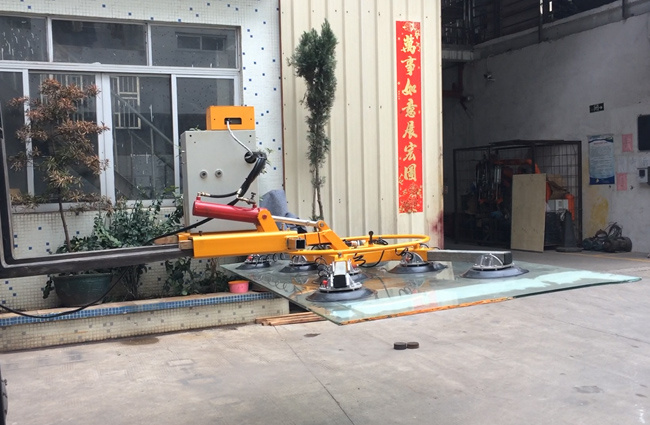

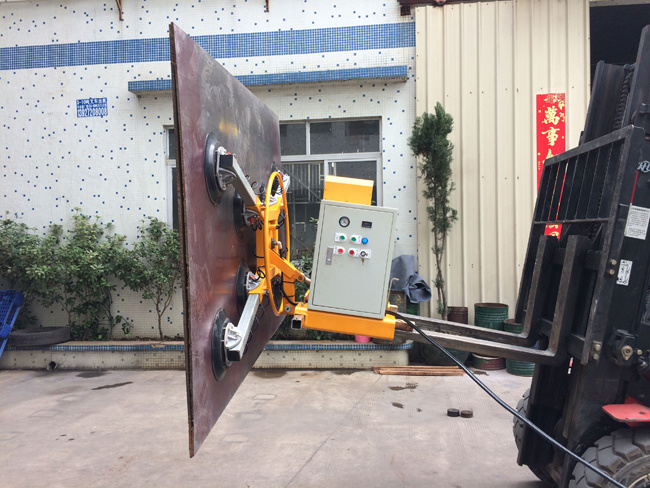

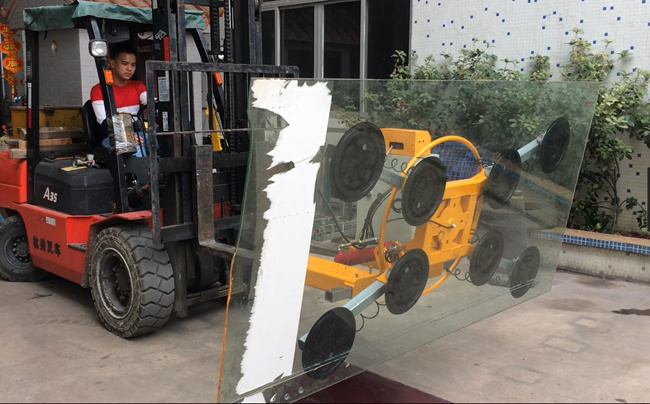

PRACTICAL USE
4.Packing & Delivery
Shengheng Machinery", with great experience at working and serving in the glass industry, is specializing in researching and manufacturing vacuum lifting equipment and parts of glass processing machinery. Our mission is to provide various vacuum lifting equipment to satisfy varied handling needs of industry today.
We supply different kinds of vacuum lifting equipment, including Pneumatic Vacuum Lifters, Electric Vacuum Lifters, and Glass Handling Robot. To assure of good quality, the key components are imported from foreign famous suppliers, like SMC, BECKER. The equipment is mostly accepted and applied in the glass, wood, stone, ceramics and steel industries. Also, we supply lifting equipment components, hardware and rubber products, such as suction cups, rubber rollers and wheels.
Our lifting equipment will assist you in reaching the goals of hign efficiency, labor saving and production safety. The more advanced you step, the faster you achieve.
Understanding our customers, we care about the future of our business. Up to today, with reasonable price and good quality, all our products sell well in the international marketing. We want to ensure that you get our good service, only high quality and speedy delivery. We sincerely want to supply you with high quality products and perfect service based on our efficient management and professional work teams. Because professional, so trust!
