| Prod Model: |
F822SD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fireproof: |
Yes |
| Door Thickness: |
40--60mm |
| Door Lock Type: |
Fingerprint Door Lock |
| Color: |
Sliver,Gold |
| Open Door Mode: |
E-Key + Fingerprint |
| Fireproof Grade: |
U/L |
| Part: |
Lock |
| Type: |
Electronic |
| Usage: |
Office, Apartment |
| Shape: |
Finishing Up Lock |
| Material: |
Stainless Steel |
Product Description

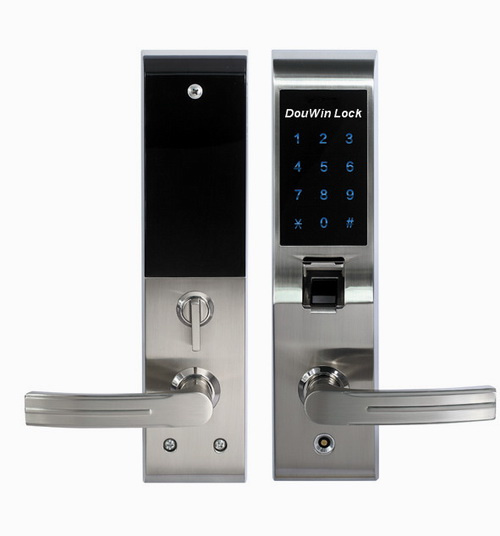

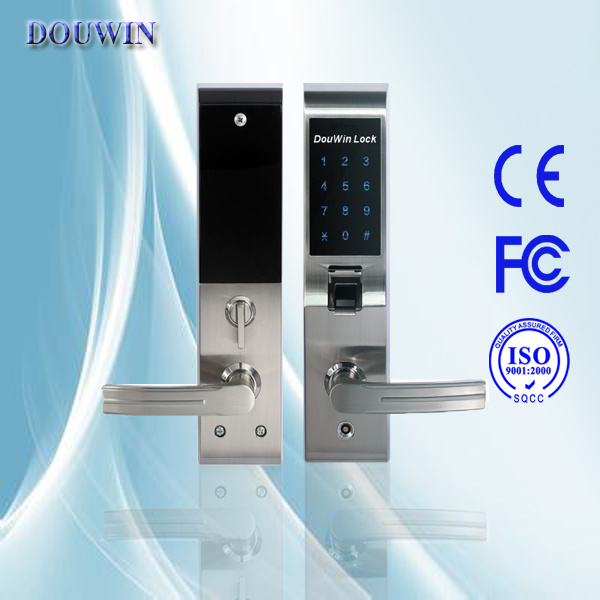

Security digital fingerprint door lock
Specifications:
Fire-resistant
Open door mode: Fingerprint, 6 to 12 digits code and electronic key
Fingerprint collection methods: Optics type
Working voltage: 9V DC (6 pieces 1.5V AA alkaline battery), in case lock loss power or can't open it by
Fingerprint or code, can use electronic key from outside open lock directly
Static power (45UA) dynamic power consumption: 250/300mA
Fingerprint storage capacity:
SC: 32 fingerprints
Code: 32 groups
Comparison time: ≤ 1 seconds
Fake fingerprint read rate (FAR): ≤ 0.001%
Right fingerprint misread (FRR): 0.03%
ACM alarm module:
Static power: 0
Dynamic power consumption: 25mA
Applicable door thickness: 40 to 60mm
Product Certifications: FCC&CE
About us:
DOUWIN Int'l Industry Limited is the specialized Chinese manufacturer for CE-certified electronic lock,
Our main products consist of hotel lock, card lock, RFID card lock, cabinet lock, locker lock, electronic
Lock, magcard lock etc. Our products and systems are widely used in guesthouses, hotels, flats and
Office intelligent estates, and the quality and service of our products are widely acknowledged by our
Users.
The answer for usual problems
1. The finger print lock works with batteries, what should we do if the batteries are run out?
This fingerprint lock, the power supply is four cell switch are number five. Its life is more than one year normally. When there is no enough power the lock will alarm automatically, register you to change the cells. At this time, you can open the door normally for many times. After they run out completely, you can use engine key at urgently time.
2. My finger was hurt, can I open the door?
Normally, small cut won't influence opening the door, but if you hurt badly, this will become hard. Suggestion: You can impute two fingerprints.
3. Why impute fingerprint three times, but it is only needed one time when open the door?
The cyclostyle as a gist in the process when contrast of finger prints, in order to sure the veracity of contrast, it needs three times fingerprint's character to form a fingerprint's cyclostyle. So collect three times (press 3 times). Comparing with distilling previously, distinguish the finger print just need only one time.
4. Why I can't open the door, and I have registered fingerprints?
The reasons maybe as follows:
A) May be the finger you used is not the one you imputed previously.
B) Your finger maybe too wet or too dry. Please clean it.
C) Maybe you press too light. Please try again much harder.
D) There is so little characters of the finger which you have imputed, the system can't identify it. Please impute with another fingerprint.
|
Fingerprint parameter: |
|
Capacity:Max.32 |
|
Method:Optical |
|
FRR:<1% |
|
FAR:<0.001% |
|
Verification:<1second |
|
PIN code parameter: |
|
capacity:1 Master code 32 User code |
|
AAalkaline:6pcs |
|
Battery duration:2years |
|
Electronic key:1pc |
|
Applicable door range:40-60mm |
|
Exterior trim size(L×W×D) 300×72×32mm |
|
Interior trim size(L×W×D) 300×72×24mm |
|
|
DOUWIN Lock's main(douwinlock. COM) products consist of hotel lock, card key lock, 13.56MHz MIFARE lock, 125kHz RF lock, RFID card lock, IC card lock, combination lock, fingerprint lock, password+card lock, digital lock, hotel safe, hotel doorbell, hotel room lamp control system, cabinet lock, locker lock, electronic lock, magcard lock, magnetic card lock, IC lock, RF lock, MIFARE card lock, hotel card lock, hotel door lock, electronic door lock, hotel lock system, sauna lock, cabinet lock, one card pass, smart card lock, intelligent lock, ID lock, swipe card lock, stripe card lock, digital lock, energy saving switch, etc. Our products and systems are widely used in guesthouses, hotels, flats and office intelligent estates, and the quality and service of our products are widely acknowledged by our users.
Nowaday our hotel card door lock system can integrate with other access system(such as Parking system, hotel lobby entrance, elevator entrance, swimming pool entrance, Massage entrance, etc. ). Thus, the Guest can use his card open his room and other entrances(such as Parking system, hotel lobby entrance, elevator entrance, swimming pool entrance, Massage entrance, etc. ). It is convenient for hotel management.
For dependable and safety performance but low cost, DOUWIN Lock series of products are very popular to domestic markets. Especially, our locks passFCC, CE verification by SGS and have been exported to the worldwide for many years.
We may say should you favor us with inquiries for specific requirements(such as detailed type, quantity, destination), we are in a position to supply you with the first class products at competitive price. Please send your fax to us, so that we can confirm it.
