| Prod Model: |
ED400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Power: |
1.5 HP (1100 W) |
| Max Delivery Rating: |
3L/M (0.53gpm) |
| Max Pressure: |
3630 Psi (250 Bar) |
| Max Tip Size: |
0.025 Inch |
| Max.Hose Length (M): |
30m |
| Paint Viscosity: |
Medium to High |
| Net Weight: |
28.5kg |
| Carton Size: |
45X43X61 Cm |
| Spare Parts For Replacing: |
1. Diaphragm 2. Outlet Valve 3. Inlet Valve 4. |
| Type: |
High Pressure Airless Spray Equipment |
| Application: |
Porcelain Spraying Equipment |
| Certification: |
ISO |
| Method Type: |
Automatic |
Product Description
Advantages:
1.Well-trained workers,20 R&D staff,10QC members.
2.Promise 1 year warranty for eletric board and motor.
3.Awarded "China High & New Technology Enterprise" in 2015.
4.More than 20 patents in China.
5.Certificates:CE,ISO9001,UKAS

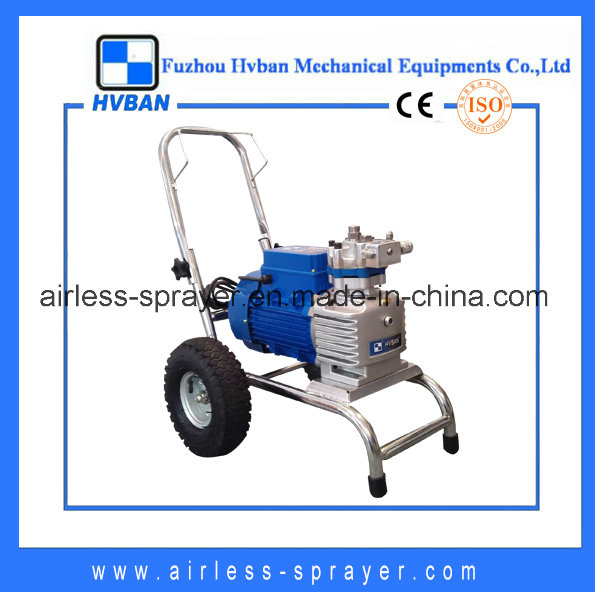

ED-400 New Type Airless Paint Sprayer, Airless Paint Machine
ED-400 Airless Paint Sprayer | |
Key Word: |
Airless Paint Sprayer,Airless Paint Machine, Electric paint spray machine |
Power Source : |
Electric Motor & Diaphragm Pump |
| Motor Power : | 1.5HP, 1100W |
| Power requirement : | 220v/50 Hz, 220V/60HZ, 110V/60HZ |
| Max.Delivery : | 3.0L/min |
| Max.Working pressure : | 250 bar |
| Spray Tip: | 0.021" |
| Max spray tip: | 0.025" |
| Max pressure : | >350bar |
| length of high pressure hose | 15m |
| Equipped with | spray gun, spray nozzle, tip guard, suction hose,high pressure hose |
| Viscosity | High viscosity available |
| Machine Weight | 48kg |
| Box.Rules(Cm) | 58*69*79 (Cm) |
1.High productivity / efficiency airless sprayer & paint machine for professional users
2.Equipped with 1.5HP 1.1KW motor, hydraulic-oil diaphragm pump, high-pressure metal spray gun with die cast aluminum housing and in-line spray gun filter, replaceable spray tip in full size, 15m high pressure hose, lubricating oil, wrench set, and other easily-broken spare parts for repairing.
3.Suitable for most kinds of colorant, varnish, lacker, Medium to high viscosity latex paint, Chlorinated Rubber paint, epoxy paint etc. For Medium to big area indoor / outdoor wall painting, decoration,
construction, anticorrosive project etc.
4.Accessories include: spray gun, spray nozzle, high pressure hose with 15m
Why Choose Us:
90% customers repeat orders.
We choose high quality material and components.
Our QC carry out inspection strictly according to ISO9001.
R&D key members have more than 10 years experience.
Fuzhou HVBAN Mechanical Equipments Co., Ltd, is a manufacturer specialized in airless paint sprayer. Our factory located in the Fuzhou Xiushan town covers an area of 3000sq.m.
Our airless painting equipments range from electric piston and diaphragm airless sprayers, gasoline engine sprayers, pneumatic airless sprayers, road marking machine to spare parts for Graco/Titan/Wagner/Campbell ( spray guns, tips, hoses, extensions etc.)
Our products could be applied to big size painting jobs / commercial painting / building project / steel structure / shipyard / floor painting etc. The liquid our machine could handle includes: light-duty paint , latex, enamel, acrylic, to heavy duty like epoxy, resin, elastomeric, block filler, textures, zinc-rich, putty, mud etc.
Our experience for producing airless painting equipments has over 10 years. Fuzhou HVBAN always focus on existing product improving and developing new products for airless painting work. We invest more than 50% margin in R&D department every year.
