| Prod Model: |
Ni80Cr20 |
| Use: |
Resistance materials |
| Resistivity: |
1.09 |
| Density: |
8.4 |
| Melting Point: |
1400 |
| Features: |
High resistivity |
| Size: |
0.1*8mm |
| Product Type: |
Wire |
| Carbon Content: |
Low Carbon |
| Material: |
NiCr |
Product Description

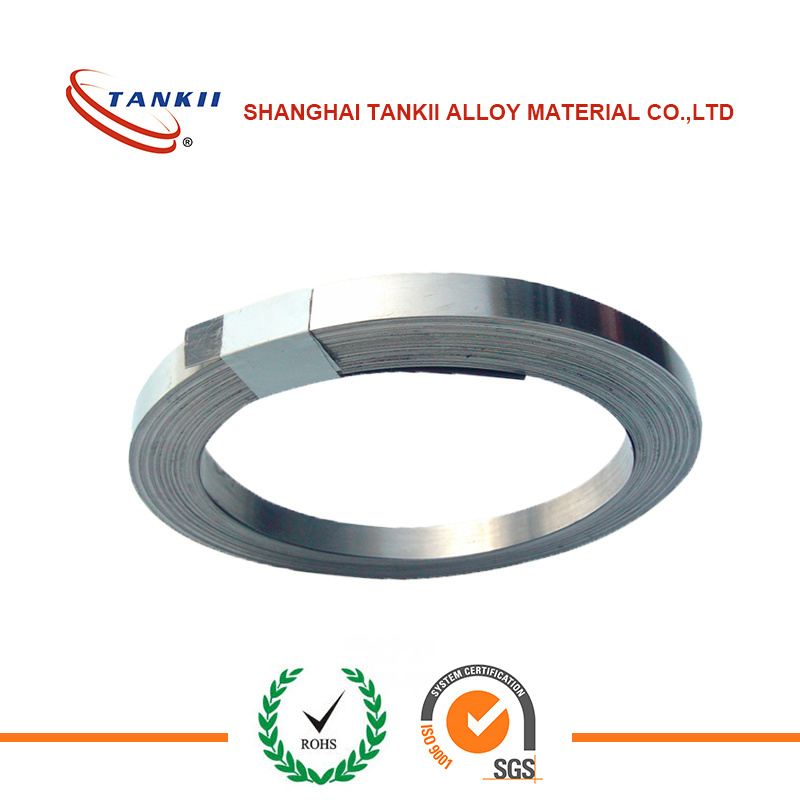

Ni80Cr20 nichrome strip sealing wire for using with vacuum sealing machineNickel-chromium alloy, nickel chromium iron alloy with high resistivity, surface oxidation resistance is good, and have higher strength at high temperature, good processability and weldability, which can be widely used in metallurgy, electrical appliances, machinery manufacturing, etc do resistance material heating elements and electrical industry.
Nickel chrome Ni80Cr20 Electrical resistivity of alloy main technical performance
| brand | Cr | Ni | Al | Fe | C | P | S | Mn | Si |
| ≤ |
| Ni80Cr20 | 20.0~23.0 | Remain | ≤0.5 | ≤1 | 0.08 | 0.02 | 0.15 | 0.60 | 0.75~1.6 |
| brand | highest use temperature/ºC | Melting point/ºC | density (g/cm³) | resistivity/(μΩ·M) | elongation(%) | Coefficient of thermal conductivity | Linear expansion coefficient of | microstructure | magnetic |
| Ni80Cr20 | 1200 | 1400 | 8.40 | 1.09 | ≥20 | 60.3 | 18.0 | austenitic | no magnetic |
Mechanical properties
| brand | Tensile strength/Mpa |
| Ni80Cr20 | 637~786 |
Use time test
| brand | Test temperature/ºC | time/h |
| Ni80Cr20 | 1200 | 80 |
