| Prod Model: |
RJ-JZ-I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Saw Speed: |
16000(Drilling) |
| Speed Of Bone Drill Attachment: |
1100rpm |
| Speed Of Wire And Pin Chuck: |
600rpm |
| Cannula Diameter: |
4.2mm |
| Non-Load Noise: |
63db |
| Size Of Drill Chuck: |
0.6mm--6mm/0.6mm--8mm |
| Name: |
Medical Instruments Multifunctional Drill with Bat |
| Working Voltage: |
14.4V |
| Color: |
Silver |
| Can Be Sterukuzed Up To: |
135&Degree |
| Application: |
Medical Instruments Multifunctional Drill with Bat |
| Feature: |
Reusable |
| Type: |
Medical Instruments Multifunctional Drill with Bat |
| Material: |
Stainless Steel |
Product Description

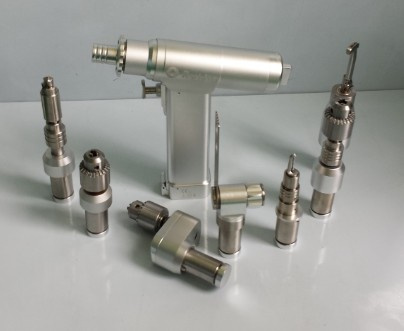

Medical Instruments Multifunctional Drill with Battery
1: Detailed product description:
I: Autoclavable drill&saw
Ii: Professional drill and saw manufacturer
Iii: Versatile, cost-effective
Iv: Discretionary speed control
2: Specifications:
Power voltage: AC220V, 50Hz
Noise: 63dB
Color: Silver
Material: Stainless steel
Package: Aluminium alloy box
Cannula diameter: 4.2mm
Drill type: Autoclavable type
Applying scope: 0.6-6mm, 0.6-8mm
3: Seven attachments:
I: Quick chuck (bone drill)
Ii: Sternum saw
Iii: Cranial bur
Iv: Oscillating saw
V: Acetabulum reamer
Vi: Wire and pin chuck (canulate drill)
Vii: Automatic-stopping cranial drill
4: No-load speed of seven attachments:
I: Quick: 1100r/m
Ii: Sternum saw: 15000r/m
Iii: Craniotomy mill: 40000r/m
Iv: Oscillating saw: 16000r/m
V: Acetabulum reamer: 300r/m
Vi: Cranial drill: 900r. M. P
Vii: Wire and pin chuck: 600r. M. P
5: Main features:
I: Professional surgical power tools manufacturer
Ii: The single trigger modular handppiece can be autoclaved
Iii: Comprehensive range of quike change attachments
Iv: The ingenious handpiece is equipped by powerful motor and provides precise and stable performance
V: The ergonomic design offers comfortable grip and more convenient manipulation to meet various clinicians' requirements.
6: Main components:
I: One handpiece
Ii: One battery
Iii: One charger
Iv: One sterilizing channel
V: Quick chuck
Vi: Sternum saw
Vii: Craniotomy mill
Viii: Oscillating saw
Ix: Acetabulum reamer
X: Wire and pin chuck
I: Automatic-stopping cranial drill
Ii: One aluminum alloy case
7: Points:
I: Quick chuck: Imported chuck ensures outstanding performance during operation.
Ii: Sternum saw: Both 360° Rotating head and blade guard protect soft tissue around sternum.
Iii: Sternum saw: 4000 r. P. M rates assures fast, efficient and safe process in craniotomy.
Iv: Cranial drill: Auto-pause after perforation ensures safety in neurosurgery
V: Cranial mill: 0-40000rmp rates of bur ensure the speed, high efficiency and safety duringoperation.
Vi: Oscillating saw: 360rotating head can be applied to any surgical sites. Can load and unload blades easy, fast and safe.
Vii: Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to all brands' mill universal.
Viii: Wire and pin chuck: Applied to various intramedullary pin or kischner's wire fixing operation easily and conveniently.
8: Payment term
I: Price: USD3150-3600/Set FOB Shanghai
Ii: MOQ: 1 set
Iii: Payment term: T/T in advance or western union
Iv: Delivery time: 5 days after receiving the deposit.
Many thanks for your kind concern about our items. Any request, pls don't hesitate to contact me. Thanks.
| 1) Sagittal saw |
| Oscillations (osc/min) | 0-15000 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤75 |
| 2) Bone drill |
| Speed(r.p.m) | 0-1000 |
| Torque(Nm) | 2.9 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 3)Canulate drill |
| Speed(r.p.m) | 0-630 |
| Torque(Nm) | 3.3 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 4) Cranial drill |
| Speed(r.p.m) | 0-1000 |
| Torque(Nm) | 2.9 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 5) Cranial bur |
| Speed(r.p.m) | 0-40000 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 6) Sternum saw |
| Oscillations (osc/min) | 0-15000 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤70 |
| 7) Acetabulum reaming drill |
| Speed(r.p.m) | 0-280 |
| Torque(Nm) | 7.8 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 8) Reciprocating saw |
| Oscillations (osc/min) | 0-15000 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤70 |
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
