| Prod Model: |
RJ-JZ-I |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Saw Speed: |
16000(Drilling) |
| Speed Of Bone Drill Attachment: |
1100rpm |
| Speed Of Wire And Pin Chuck: |
600rpm |
| Cannula Diameter: |
4.2mm |
| Non-Load Noise: |
63db |
| Size Of Drill Chuck: |
0.6mm--6mm/0.6mm--8mm |
| Name: |
Multifunction Orthopedic Power Drill Saw for Sur |
| Working Voltage: |
14.4V |
| Can Be Sterukuzed Up To: |
135&Degree |
| Color: |
Silver |
| Application: |
Medical Instruments Surgical Orthopedic Drill Saw |
| Feature: |
Reusable |
| Certification: |
ISO13485 |
| Type: |
Medical Instruments Surgical Orthopedic Drill Saw |
| Material: |
Stainless Steel |
Product Description

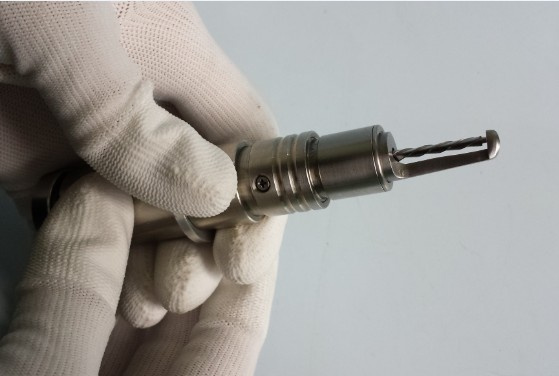

Medical Instruments Surgical Orthopedic Drill Saw with Battery
1: Detailed product description:
I: Autoclavable drill&saw
Ii: Professional drill and saw manufacturer
Iii: Versatile, cost-effective
Iv: Discretionary speed control
2: Specifications:
Power voltage: AC220V, 50Hz
Noise: 63dB
Color: Silver
Material: Stainless steel
Package: Aluminium alloy box
Cannula diameter: 4.2mm
Drill type: Autoclavable type
Applying scope: 0.6-6mm, 0.6-8mm
3: Seven attachments:
I: Quick chuck (bone drill)
Ii: Sternum saw
Iii: Cranial bur
Iv: Oscillating saw
V: Acetabulum reamer
Vi: Wire and pin chuck (canulate drill)
Vii: Automatic-stopping cranial drill
4: No-load speed of seven attachments:
I: Quick: 1100r/m
Ii: Sternum saw: 15000r/m
Iii: Craniotomy mill: 40000r/m
Iv: Oscillating saw: 16000r/m
V: Acetabulum reamer: 300r/m
Vi: Cranial drill: 900r. M. P
Vii: Wire and pin chuck: 600r. M. P
5: Main features:
I: Professional surgical power tools manufacturer
Ii: The single trigger modular handppiece can be autoclaved
Iii: Comprehensive range of quike change attachments
Iv: The ingenious handpiece is equipped by powerful motor and provides precise and stable performance
V: The ergonomic design offers comfortable grip and more convenient manipulation to meet various clinicians' requirements.
6: Main components:
I: One handpiece
Ii: One battery
Iii: One charger
Iv: One sterilizing channel
V: Quick chuck
Vi: Sternum saw
Vii: Craniotomy mill
Viii: Oscillating saw
Ix: Acetabulum reamer
X: Wire and pin chuck
I: Automatic-stopping cranial drill
Ii: One aluminum alloy case
7: Points:
I: Quick chuck: Imported chuck ensures outstanding performance during operation.
Ii: Sternum saw: Both 360° Rotating head and blade guard protect soft tissue around sternum.
Iii: Sternum saw: 4000 r. P. M rates assures fast, efficient and safe process in craniotomy.
Iv: Cranial drill: Auto-pause after perforation ensures safety in neurosurgery
V: Cranial mill: 0-40000rmp rates of bur ensure the speed, high efficiency and safety duringoperation.
Vi: Oscillating saw: 360rotating head can be applied to any surgical sites. Can load and unload blades easy, fast and safe.
Vii: Reamer: Hi-torque, ideal for acetabulum or medullary operation, available to all brands' mill universal.
Viii: Wire and pin chuck: Applied to various intramedullary pin or kischner's wire fixing operation easily and conveniently.
8: Payment term
I: Price: USD3150-3600/Set FOB Shanghai
Ii: MOQ: 1 set
Iii: Payment term: T/T in advance or western union
Iv: Delivery time: 5 days after receiving the deposit.
Many thanks for your kind concern about our items. Any request, pls don't hesitate to contact me. Thanks.
| 1) Sagittal saw |
| Oscillations (osc/min) | 0-15000 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤75 |
| 2) Bone drill |
| Speed(r.p.m) | 0-1000 |
| Torque(Nm) | 2.9 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 3)Canulate drill |
| Speed(r.p.m) | 0-630 |
| Torque(Nm) | 3.3 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 4) Cranial drill |
| Speed(r.p.m) | 0-1000 |
| Torque(Nm) | 2.9 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 5) Cranial bur |
| Speed(r.p.m) | 0-40000 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 6) Sternum saw |
| Oscillations (osc/min) | 0-15000 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤70 |
| 7) Acetabulum reaming drill |
| Speed(r.p.m) | 0-280 |
| Torque(Nm) | 7.8 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤40 |
| 8) Reciprocating saw |
| Oscillations (osc/min) | 0-15000 |
| Operation(V) voltage | 14.4 |
| Sterilization | 135°C |
| Noise(db) | ≤70 |
