| Prod Model: |
NM-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Properties: |
Orthopedic Surgical Instruments |
| Saw Drill Type: |
Autoclavable |
| Technical Merit: |
Can Drive 7 Attachments |
| Drill Type: |
Multi-Function Drill |
| Battery: |
Rechargeable |
| Charging Time: |
About 3 Hours |
| Application: |
Used for Traumatic Surgery |
| Feature: |
Reusable |
| Certification: |
ISO13485 |
| Group: |
Children |
| Type: |
Drill&Saw |
| Material: |
Stainless Steel |
Product Description
NM-100 Orthopedic power drills saws optional surgical Multifunction Drill Saw1: Autoclavable drill and saw
2: CE approval
3: Can drive 7 attachments
4: Used for traumatic surgery
5: Discretionary speed
1, Technical Data:
1) Model No. RJ-JZ-1
2) Charger input voltage: AC220V/50Hz
3) Frequency > 15000rpm
4) Speed (drill) >600rpm
5) Speed( acetabulum burnishing drill) >130rpm
6) Torque (quick chuck) >7500G/C
7) Torque(reamer) >33000G/C
8) Torque(Hollow drill) > 11200G/C
9) Unit rise in tempreture ≤ 25°
10) Noise ≤ 78dB

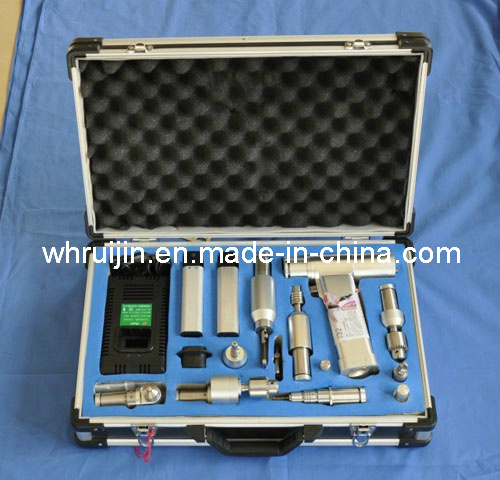

2, Standard Configuration:
1) One Handpiece
2) One Sternum saw
3) One swing saw
4) One bone drill
5) One canulated drill
6) One Craniotomy drill (auto-pause)
7) One mill
8) One acetabulum burnishing drill
9) One charger
10) Two batteries
11) One aluminium box
3, Technical merits:
1) Mainframe is made of Stainless Steel, durable, long working time, the assecories can be selected freely by different operation.
2) Quick chuck: Imported chuck ensures outstanding performance during operation.
3) Sternum saw: Both 360° Rotating head and blade guard can protect Soft tissue around sternum.
4) Craniotomy mill: 40000r. P. M rates assures fast, effient and safe process in craniotomy.
5) Oscillating saw: 360° Rotating head can be applied to any surgical Sites. Wrenchless collect allows for easy, fast and safe loading and unloading blades
6) Reamer: Hi-torque, ideal for acetabulum or medullary operation Available to all brands mill universal
7) Wire and pin chuck: With a canula diameter 4.0mm applide to various intramedullary pin or kirschner pin fixing opration easily and convenientiy
8) Cranial drill: Auto-pause offer perforation ensures safety in neurosurgery.
9) Highest quality
10) Perfect ergonomic design
11) can meet different kinds of surgery operation
