| Prod Model: |
HHB-4000B |
| Model: |
Hhb-4000b |
| Bits: |
#4 |
| Rated Speed: |
1150rpm |
| Weight(Kg): |
0.32 |
| Power Type: |
Alternating Current Power Supply |
| Power: |
48W |
| Total Length: |
215mm |
| Place Of Origin: |
Shenzhen China |
| Torque Range: |
3.0~8.0kgf.Cm |
| Rotation: |
Double |
| Type: |
Precision Screwdriver |
| Screw Head Type: |
Phillips |
| Structure: |
Straight Type |
| Brand: |
Hhb |
| Handle Color: |
Blue |
Product Description
Non-carbon brush Precision Magneticscrewdriver for Electronics Products1. It is automatic Electric screwdriver. When the torque is locked, the clutch will automatically trip,the motor power will be automatically off and the electric screwdriver will stop running.
2. Brushless aerospace-graded motor is used and produces no dust, low noise and durability. Maintenance is not necessary.
3. It can be connected to the intelligent counter through the smart counter detection which reflects the lock with screw fastening and the number to improve the finished product quality.
4. Non-contact switch is used to provide a durable life in which there is no necessity to replace the item often.
5. It enables to connect with external PLC system to humanize the production process and can avoid any unnecessary screw fastening mistakes by calculating the fastened screw numbers with computer.
6. Torque adjustment is easy and convenient step-less adjustment by rotating the torque adjustment ring to the left or to the right.Speed can also be adjusted to High (Hi) or Low (Lo).
7. It can be used for laptops,itegrated substrates,mobile phones,digital cameras and other products assembly operations.
8. Certification: CE,CCC,ROHS and ISO9001:2008.
Specification of Fast Speed Electric Screwdriver HHB-4000B :
| Model | HHB-3000B | HHB-4000B | HHB-4500B |
| Input Voltage | DC 30V |
| Measuring range | (kgf.cm) | 0.3-3.0 | 1.0-5.0 | 3.0-8 |
| (Lbf.in) | 2.0-20.0 | 0.87-4.3 | 2.6-9.2 |
| (N.m) | 0.03-0.3 | 0.1-0.5 | 0.3-0.8 |
| Torque accuracy | ±3 |
| Torque adjustment | Stepless adjustment |
| No load speed (r.p.m) ±10% | HI | 700 | 700 | 700 |
| LO | 1150 | 1150 | 1150 |

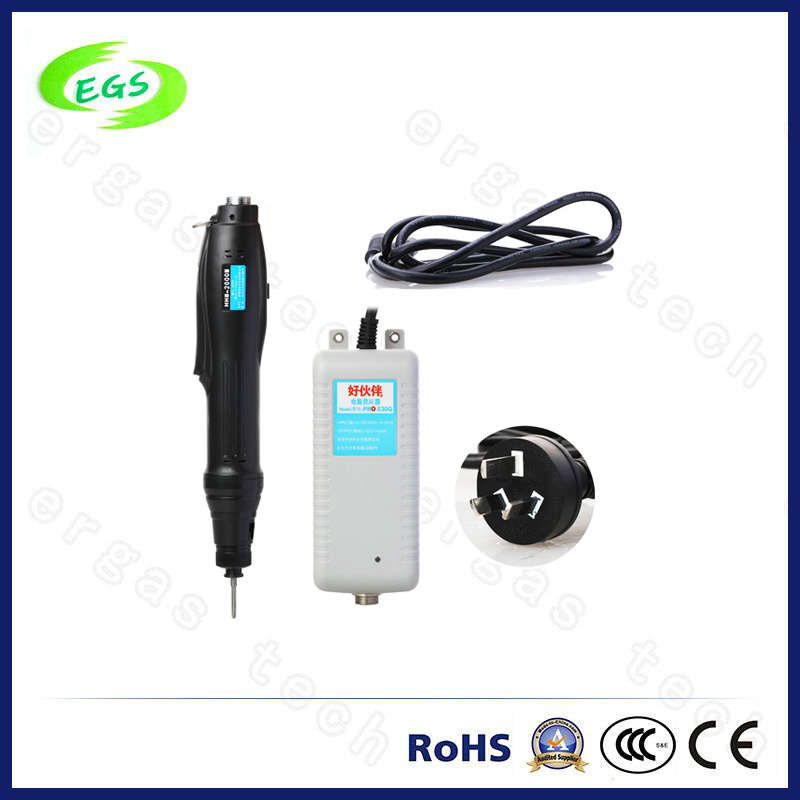

| Applicable power adapter | HHB PRO-530Q |
| Rated Power | 48W |
| Diameter of Screw (mm) | Machine screw | 1.0-2.2 | 1.0-2.6 | 2.0-3.0 |
| Tapping screw | 1.0-2.0 | 1.0-2.3 | 2.0-2.6 |
| Net Weight | 320g |
| Applicable signal controller | HHB-BS-A/HHB-BS-B/HHB-BS-C |
| Applicable screwdriver rack | HHB-K2 |
| Applicable screw bit | 5mm Diameter |
Trade assurance:
1.100% product quality protection
2.100% on-time shipment protection
3.100% payment protection for your covered amount
FAQS: Q1. Do your products get any certificates?
Yes, CE for EU market, FDA for USA market.
Q2. What's the guarantee, in case the machine breaks down?
24 months quality warranty. If machine breaks down, generally speaking, our technician will figure out what problem it is based on clients' feedback. Parts (excluding the consumable parts) shall be replaced for free If there is any problems during warranty period.
Q3.Can you do the design for us?
Yes. We have a professional team having rich experience in designing and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect fact. It does not matter if you do not have some one to complete files. Send us high resolution images, your logo and text and tell us how you would like to arrange them. We will send you finished files for confirmation.
Q4. How to pay to you?
30% deposit, 70% balance paid before delivery by T/T is prefer; small amount with PayPal is also acceptable.
Q5. How long is the delivery time?
For standard machine, it would be 3 - 5days. For non-standard/customized machines according to clients' specific requirements, It would be 15days.
Q6. Do you arrange shipment for the products?
FOB or CIF price, we will arrange shipment for you, but EXW price, clients need to arrange shipment by themselves or their agents.
Q7. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL, including Commercial Invoice, Packing List, B/L and other certificates as required by clients.
Q8. How is the packing?
Three Layers package -- (Water-proof plastic film+ Foam board protection + Solid seaworthy wood box)
