| Prod Model: |
NQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Core Drilling Bits |
| Usage: |
Geological Exploration |
| Formation Use Range: |
F1~F10 (#1~ #12) |
| Body Material: |
Steel #45 |
| Matrix Height: |
12mm |
| Cerfificate: |
ISO9001 |
| Type: |
Impregnated Diamond Drill Bit |
Product Description

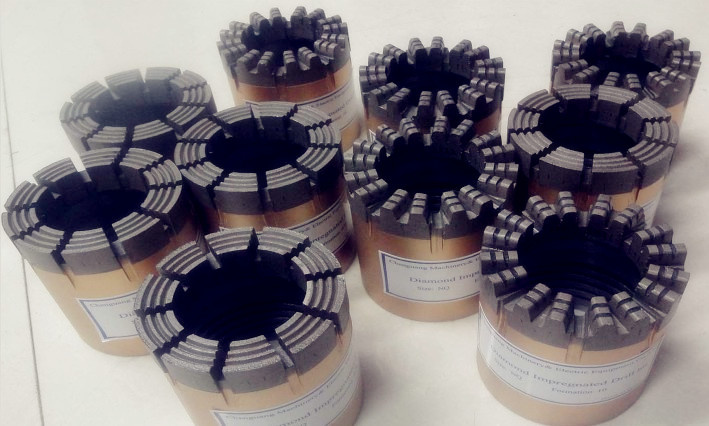

Impregnated Diarmond Core Drill Bit / Crown Drill Bit.
Chenguang impreganated diamodn bits have the widest range of application.
They are the most commonly useful bits from medium to super hard formarions in the mineral exploration industy. The hardness and the abrasiveness of the rock are the key factors to determine the diamond specifications, concentration and matrix hardness.
How to choose the suitable diamond core drill bit ?
Key points :
1. Dimention Model No.
2. Formation
3. Matrix Height
4. Diamond Quality
Dimension Matrix No.
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
_________________________________________________________________________________
Our Advantages
Best Abrasivre Height Matrix : 12mm
Best Qualitly Diamond from Wolrd Top SyntheticDiamond Company
Most Competitive Price in China
Stable Supply
High Quality, Competitive price, Stable supply and Very Good Feedbacks by our regular customers.
_______________________________________________________________
Any question or request, plz feel feel to Contact Us.
Chenguang machinery & Electric Equipment Co. Ltd specialized in development, production, and marketing of ultra-hard materials.
We started to provide high quality synthetic diamond to domestic diamond tool manufacturers since1993. We utilize a wide range of advanced production equipment and test instrumentation in an environment using strict quality control procedures for all our products. As a diamond supplier; We provide a wide range of diamond products and solutions for many well-known Chinese enterprises. Among these enterprises are more than 20 well-known enterprises who have enjoyed at least 10 years with us; We are proud to mention that our products are routinely exported worldwide since 2010, the stable quality and professional service is well appraised by huge users.
Our main superhard matierial products include: Synthetic diamond, Diamond saw blade, Diamond Drill bit, welcome friends from home and abroad to cooperate with us and create a brilliant future.
