Nq Electroplated Diamond Core Bit

Nq Electroplated Diamond Core Bit
Price: US $ 60/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union
Prod Model: nq bq hq pq nq3 hq3 pq3, t2, t6, tt, nwf, hwf
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage: Stone Cutting, Drilling
Manufacturing Arts: Electroplating
Kind: Diamond Drill
Saw Blade External Diameter: Bq Nq Hq Pq

Product Description

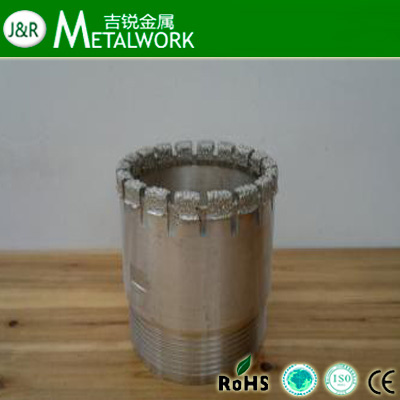

Material: Electroplated diamond core bit
Suitable for soft and middle hard rock formation. It has very fast drilling speed.

Material: Surface set diamond core dirll(60/100 size natural diamond)
Cutting steps: 5 or 7 steps
Suitable rock formation: Broken, soft or medium hard foramtion
Applied in: Soft or medium hard but broken rock formation. Steps help to well control the direction and better core recovery.

Material: Impregnated diamond core dirll
Matrix hardness: F1-F10(TOTAL 10 grades)
Matrix height: 6mm, 8mm, 10mm, 12mm, 14mm
Applied in: Medium hard and very hard but complete rock formation. It mantain relative loger lifespan and there are differet face profile and watergate to choose for different formation.

Material: PCD core dirll bit
Blades: 6, 8, 9, 11 blades
Applied in: Soft and medium hard foramtion which enable very fast drilling speed and longer bit life than T. C bit.

Material: T. C core dirll bit
Applied in: Soft rock foramtion even solid. It enables fast drilling speed and clean open hole.

Material: TSP core bit
Applied in: Complicated borken and utral hard rock formation

Available size
BQ(WLB), WLB-2.400, BQ3(WLB3), BWG, BX, BWM, BWT, LTK60, TBW
NQ(WLN), NQ-3.032, NQ2(WLN2), NQ3(WLN3), NQTT(NWLTT), NMLC, NWG(NX), NWM, NWT, TNW
HQ(WLH), HQ-3.830(WLH-3.830), HMLC, HWF, HWG(HX), HWM, HWT
PQ(WLP), PQ3(WLP3), PWF, SWF, UWF, ZWF
T36, TT46, TB56, TT56, T2-56, T2-66, T2-76, T2-86, T2-101
T6-76, T6-86, T6-101, T6-116, T6-131, T6-146, T6S-76, T6S-86, T6S-116, T6S-131, T6S-146
B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
J AND R Metalwork Industry Co., Limited established in 2000 and located in Dongguan, Guangdong, China. After almost 13 years management development and technical improvment. Now, J&R Metalwork Industry Co., Limited has become a leading supplier in metalwork industry. Meanwhile, we are one of member of Fasteners industrial Association and Geologic drilling Import &Export Enterprise Association.

J AND R Metalwork Industry Co., Limited is specialized in the manufacturing and supply of various metalwork products. J&R main products include various types of bolts, hex nuts, thread rods, anchor bolts, and supporting washers in DIN, BS, ANSI and JIS.

J AND R also supply diamond drill bit, core barrel, drill rod and casing in Q (wireline) system and conventional system for geologic investigation project contractor.

After 13 years domestic and abroad market investigation, at present our products are sold to many countries and regions including the North America, Europe, Australia, the Middle East and Asia.

J AND R Metalwork Industry Co., Limited owned the advanced production equipments, complete inspection systems for chemical and physical property testing. And We have been constantly strengthening our management and consummate the quality guarantee system. In 2008, we acquired ISO9001: 2008 quality certification. Currently, the 5S management mode is implemented in the company.

Best quality and best service is and will be always our toppest concern.
