| Prod Model: |
NRV25.30.40.50.63.75.90.110.130.150 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Color: |
Blue;Silver;Red;Green |
| Manufacturing Method: |
Hobbing |
Product Description

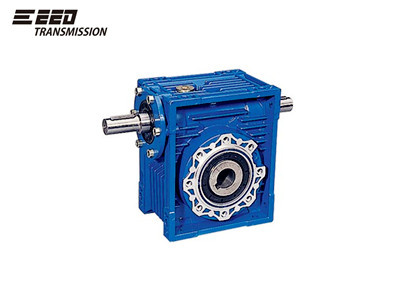

NRV gearbox per motovario standare
Gearing Arrangement:Worm Output Torque:by the Ratio Rated Power:0.06-7.5kW
Input Speed:1400rpm Output Speed:14-280rpm Place of Origin:Zhejiang, China (Mainland)
Model Number:NMRV+NMRV Brand Name:EED Color:Blue, silver, green or other
Quality Control System:ISO 9001:2000 Warranty:1 year
Size: NMRV30. NMRV40. NMRV50. NMRV63. NMRV75. NMRV90. NMRV110. NMRV130. NMRV150

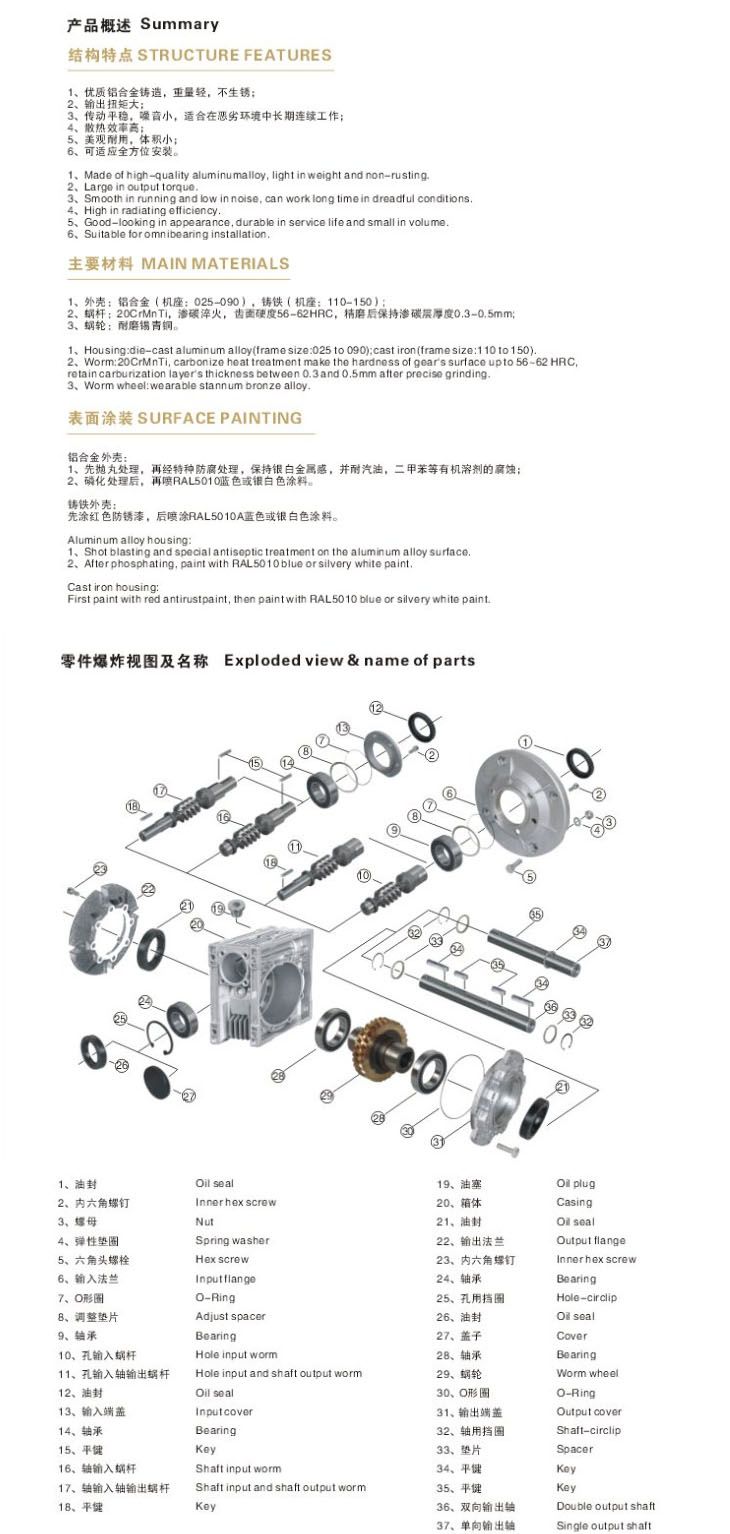

Structure Features
1. Made of high-quality aluminumalloy, light in Weight and non-rusting
2. Large in output torque
3. Smooth in running and low in noise, can work long time in dreadful conditions
4. High in radiating efficiency
5. Good-looking in appearance, durable in service lifa end small in volume
6. Suitable for ominbearing installation
Main Materials
1. Housing: Die-cast aluminum alloy(size 025-090), cast iron(size 110-150)
2. Worm sahft: 20CRMNTI, carbonize heat treatment make the hardness of gear's surface up to 56-62 HRC. Retain carburization layer's thickness between 0.3 and 0.5mm after precise grinding
3. Worm wheel: Wearable stannum bronze alloy
Surface painting
Aluminum alloy housing:
1. Shot blasing and special antiseptice treatment on the aluminum alloy surface
2. After phosphating, pain with bule. Sliver, grey, red or based on customer demands
Markets
Agriculture, Air Movement Products, Chemical, Construction, Crane & Hoist, Crusher, Drill Rig Duty, Elevators / Escalators, Food and Beverage, Forestry, Healthcare, Irrigation Systems, Manufacturing, Marine, Material Handling, Medical Equipment, Metal Processing, Mining, Oil and Gas, Packaging, Paper Processing, Petrochemical, Pharmaceutical, Plastics, Port Machinery, Pulp and Paper, Pump, Rail Duty, Refinery & Petrochemical, Rock Crusher, Solar, Steel, Sugar & Ethanol, Textiles, Wind Energy
Applications
Conveyors, Cranes and Hoists, Elevators, Escalators, Fans, Gates, Irrigators, Machinery, Mixers, Packaging Equipment, Pools, Specialty Trucks and Vehicles, Wind Turbines, X-Ray Equipment, Airports, Boats and Yachts, Energy Installations (Deserts, Wind Farms), Foundries, Off-shore Oil Rigs, Mining Sites, Factories, Supermarkets, Refineries, Ports, Railways, Farms
Hangzhou Melchizedek Import & Export Co., Ltd. is a leader manufactur in mechanism field and punching/stamping field since 1984. Our main product, NMRV worm gear speed reducer and SEW series helical gearbox, XDR, XDF, XDK, XDS have reached the advanced technique index of the congeneric European and Janpanese products, We offer standard gears, sprockets, chains, pulleys, couplings, bushes and so on. We also accept orders of non-standard products, such as gears, shafts, punching parts ect according to customers' Drawings or samples.
Our company has complete set of equipment including CNC, lathes, milling machines, gear hobbing machine, gear grinding machine, gear honing machine, gear shaping machine, worm grinder, grinding machines, drilling machines, boring machines, planer, drawing benches, punches, hydraulic presses, plate shearing machines and so on. We have advanced testing equipments also.
Our company has established favorable cooperation relationships with sub-suppliers involving casting, raw material, heat treatment, surface finishing and so on.
