NSK NTN Pillow Block Bearing Textile Machinery Bearings Housings UCP208

Name: NSK NTN Pillow Block Bearing Textile Machinery Bearings Housings UCP208
Brand: tool-buy.com
SKU: 831524305
Availability: InStock
Rating: 4.6 (108 reviews)

Price:	US $ 0.4-0.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Yu Chen Technology Limited

Showroom Product Company Profile

Prod Model:	UC211

Product Description

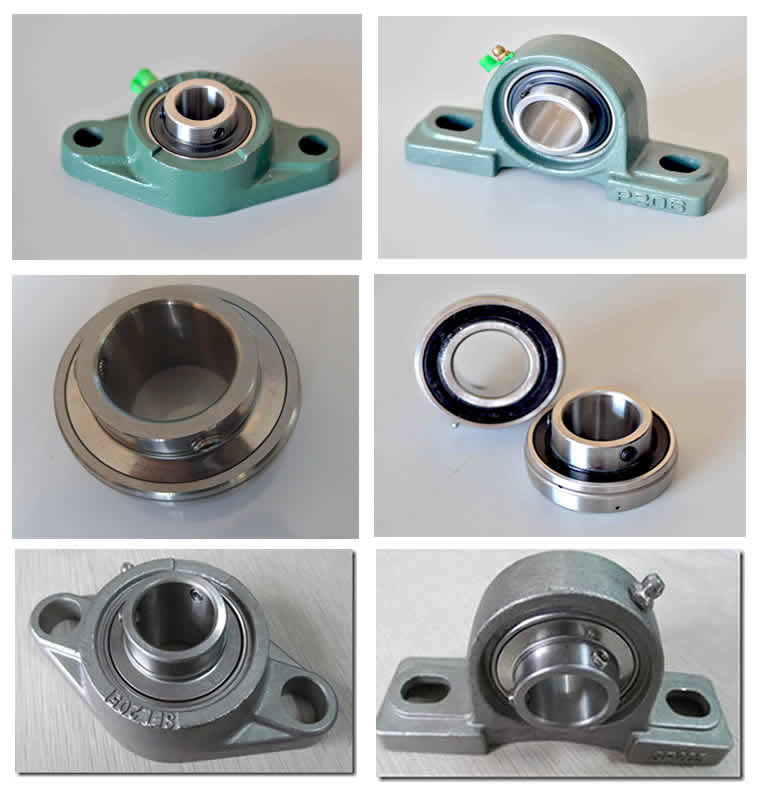

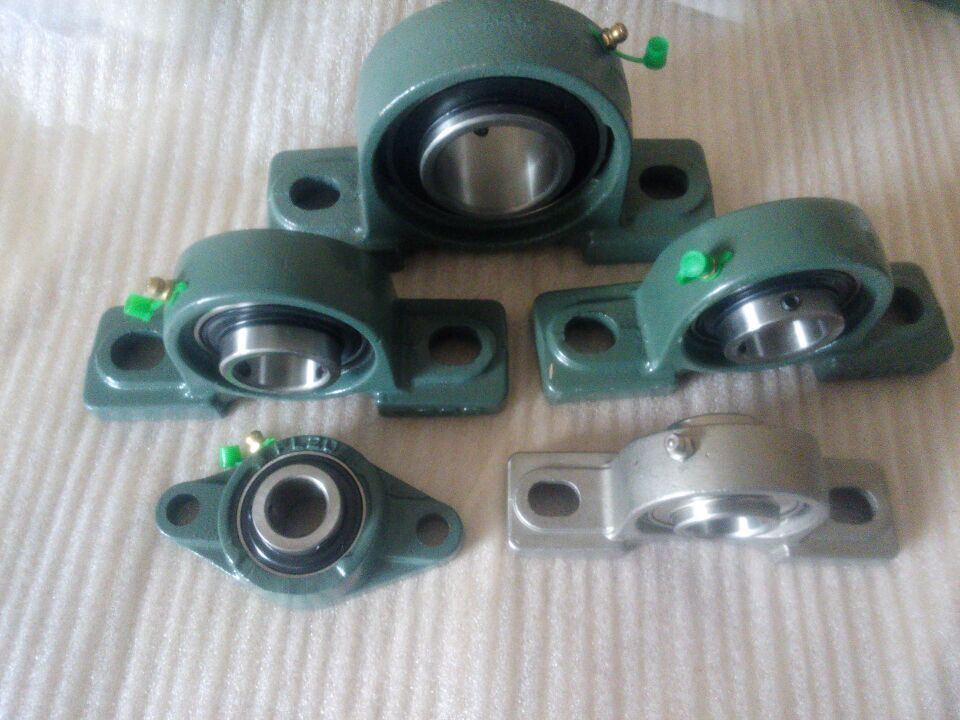

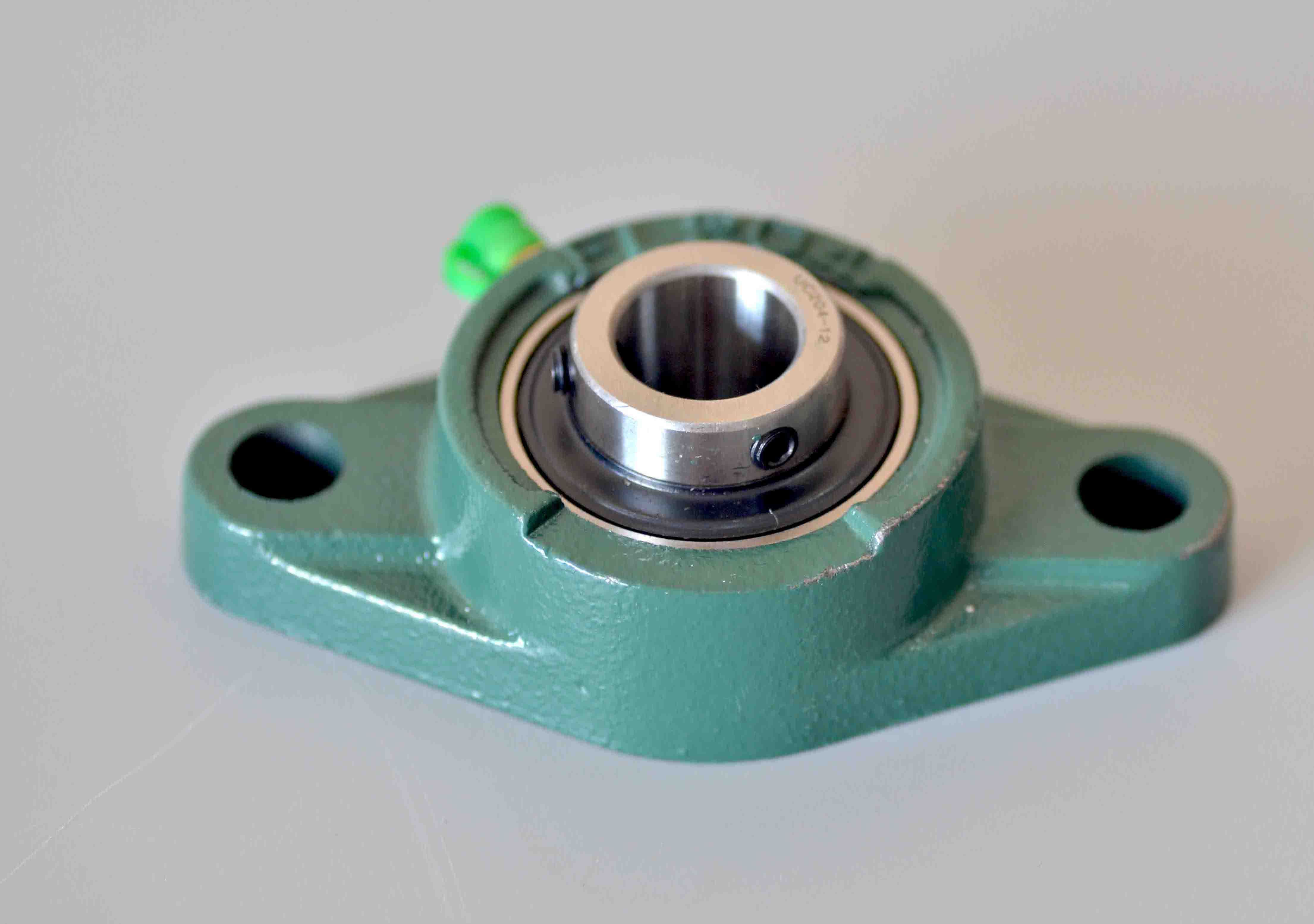

1.Specification of the mounted ball bearing units

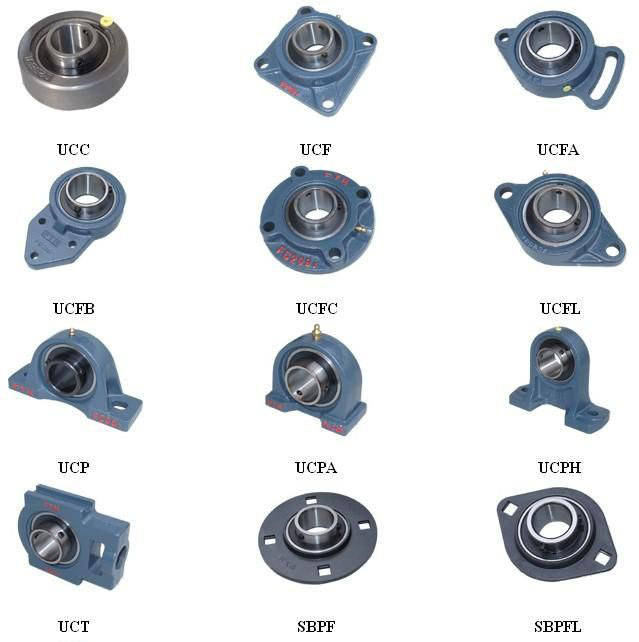

1)Pillow block a are most extensively used among the bearing units:UCP,UCPE,UCAK and SBLP,SBLLP.These types are fixed to the shafts by means of the setscrews prepared in the innerring.

2)NAP,SALP and SALLP types are fixed to the shafts by the setscrews prepared in the eccentric locking collor.

3)UKP type is mounted to the shafts by use of adapter sleeves

4)Housing P200 series could be machined grooves on both sides to be mounted with metal covers for dust prevention and safty purpose.

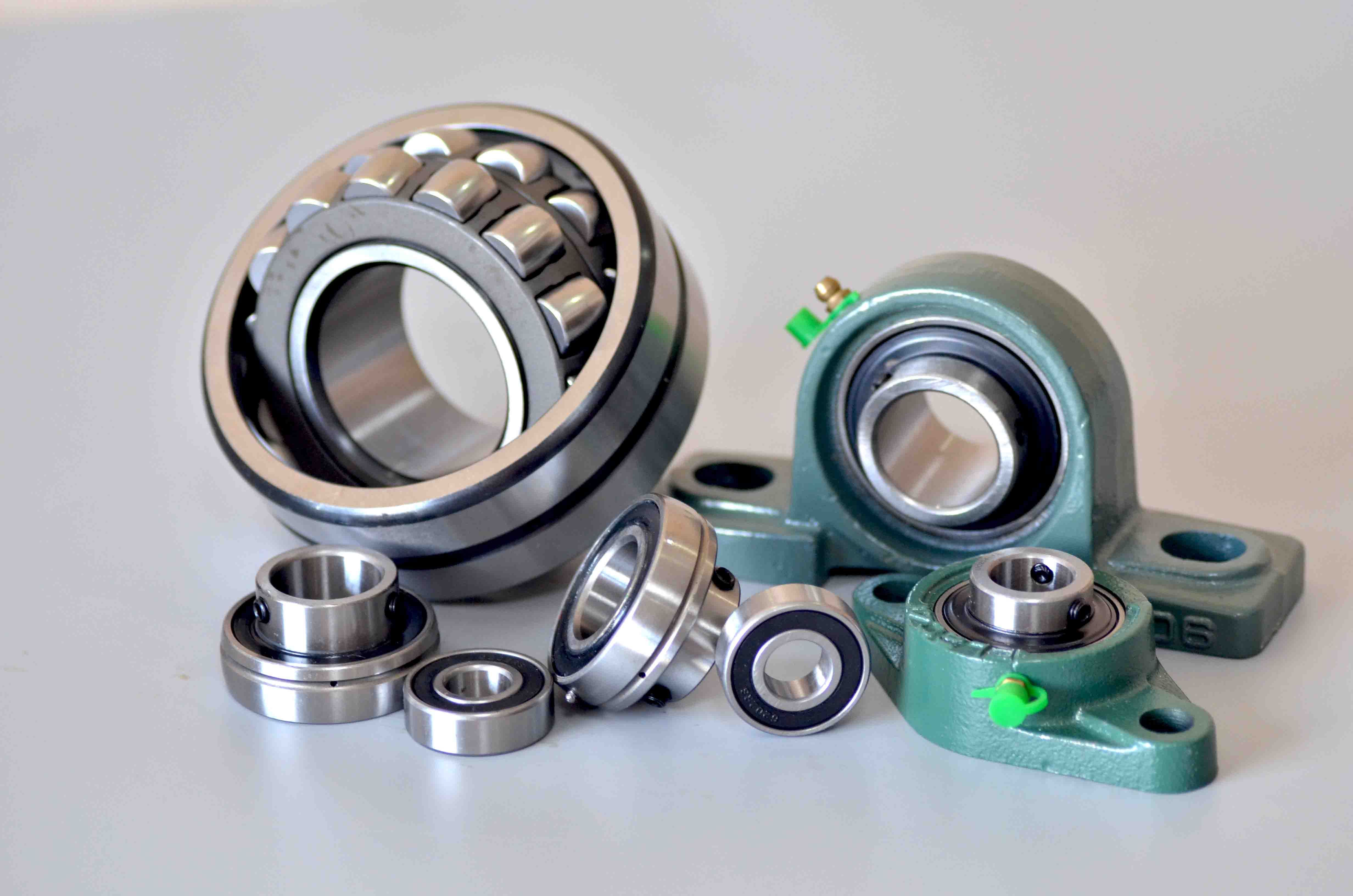

2.The main products of our factory

- Cast iron pillow blocks

- Thermoplastic bearing housing

- All stainless steel mounted units.

- Accu-Grip Concentric lock Bearing Units(New!)

- Rod ends

- Spherical plain bearings

- Agriculture Bearings(Disc Harrow Bearings)

Bearing	mm	h	a	e	b	S1	S2	g	w	n	Bi
UCP202	15	30.2	127	95	38	13	19	14	62	11.5	27.4
UCP203	17	30.2	127	95	38	13	19	14	62	11.5	27.4
UCP204	20	33.3	127	95	38	13	19	14	65	12.3	31
UCP205	25	36.5	140	105	38	13	19	15	71	14.3	34.1
UCP206	30	42.9	165	121	48	17	21	17	83	15.9	38.1
UCP207	35	47.6	167	127	48	17	21	18	93	17.5	42.9
UCP208	40	49.2	184	137	54	17	21	18	98	19	49.2
UCP209	45	54	190	146	54	17	21	20	106	19	49.2
UCP210	50	57.2	206	159	60	20	25	21	114	19	51.6
UCP211	55	63.5	219	171	60	20	25	23	126	22.2	55.6
UCP212	60	69.8	241	184	70	20	25	25	138	25.4	65.1
UCP213	65	76.2	265	203	70	25	29	27	151	25.4	65.1
UCP214	70	79.4	266	210	72	25	31	27	157	30.2	74.6
UCP215	75	82.6	275	217	74	25	31	28	163	33.3	77.8
UCP216	80	88.9	292	232	78	25	31	30	175	33.3	82.6
UCP217	85	95.2	310	247	83	25	31	32	1870	34.1	85.7
UCP218	90	102	327	262	88	27	33	33	200	39.7	96

Bearing	mm	a	e	b	i	g	l	z	s	n	Bi
UCFL202	15	113	90	60	15	12	25.5	30.9	12	11.5	27.4
UCFL203	17	113	90	60	15	12	25.5	30.3	12	11.5	27.4
UCFL204	20	113	90	60	15	12	25.5	33.7	12	12.3	31
UCFL205	25	130	99	68	16	14	27	35.8	16	14.3	34.1
UCFL206	30	148	117	80	18	14	31	40.2	16	15.9	38.1
UCFL207	35	161	130	90	19	16	34	44.4	16	17.5	42.9
UCFL208	40	175	144	100	21	16	36	51.2	16	19	49.2
UCFL209	45	188	148	108	22	18	38	52.2	19	19	49.2

Bearing	mm	h	a	e	b
UCC202	15	72	20	11.5	27.4
UCC203	17	72	20	11.5	27.4
UCC204	20	72	20	12.3	31
UCC205	25	80	22	14.3	34.1
UCC206	30	85	27	15.9	38.1
UCC207	35	90	28	17.5	42.9
UCC208	40	100	30	19	49.2
UCC209	45	110	31	19	49.2

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment 30%TT in advance. 70% T/T before shippment

YuChen power transmission are one of the leading manufactures for various transmission parts in China, Our sell products are sprocket, gear, timing belt pulley, V-belt pulley, transmission roller chain, conveyor chain, rack, turning parts, bearing and gearboxes. We have been in this line for more than 10 years.

Quality and delivery time are the key factors highly guaranteed by our long-term experience. By insisting on high start planning, high level investment and scientific management, we strictly carry out ISO9001 international quality system certificate and are scrupulous about each process detail, Our quantity products have been well accepted by vast customers.

All of our products are made in conformity with the international standard and custom drawing, and have been sold to various provinces, cities of China, and exported to USA, UK, Spain, Germany, Italy, Poland, Czech, Malaysia, Argentina and other regions and countries.

Success belong to the history, future depends on further development, YuChen our friends and customers supports, Yuchen had been grown up.
