Od-Mounted Portable Hydraulic Split Frame Pipe Cutting and Beveling Tool for 2"-84" (60.3-2133.6mm)
| Price: |
US $ 5390-45000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SFM Series |
| Pipe O.D: |
2" - 84" (60.3mm-2133.6mm) |
| Wall Thickness: |
100mm |
| Driven Type: |
Hydraulic Power Station |
| Electric Requirements: |
380V/AC (Customizable) |
| Torch Type: |
Cold |
| Feed Method: |
Star Wheel System, Fixed 0.0031" (0.08mm) Per Trip |
| Cutter Trip: |
18m/Min(60FT/Min) |
| Finish: |
Anodizing, Sand Blasting |
| Accessories(Optional): |
Ring Sets; Sfm Tool Slides; O.D Tracking Slide |
| Industry: |
Power Plant; Petrochemical; Bolier Shop |
Product Description
BHY Reliable On-site Machining Solutions
Website: www.bohyarglobal.com
Pipe Cutting & Beveling Machines
★ Introduction:

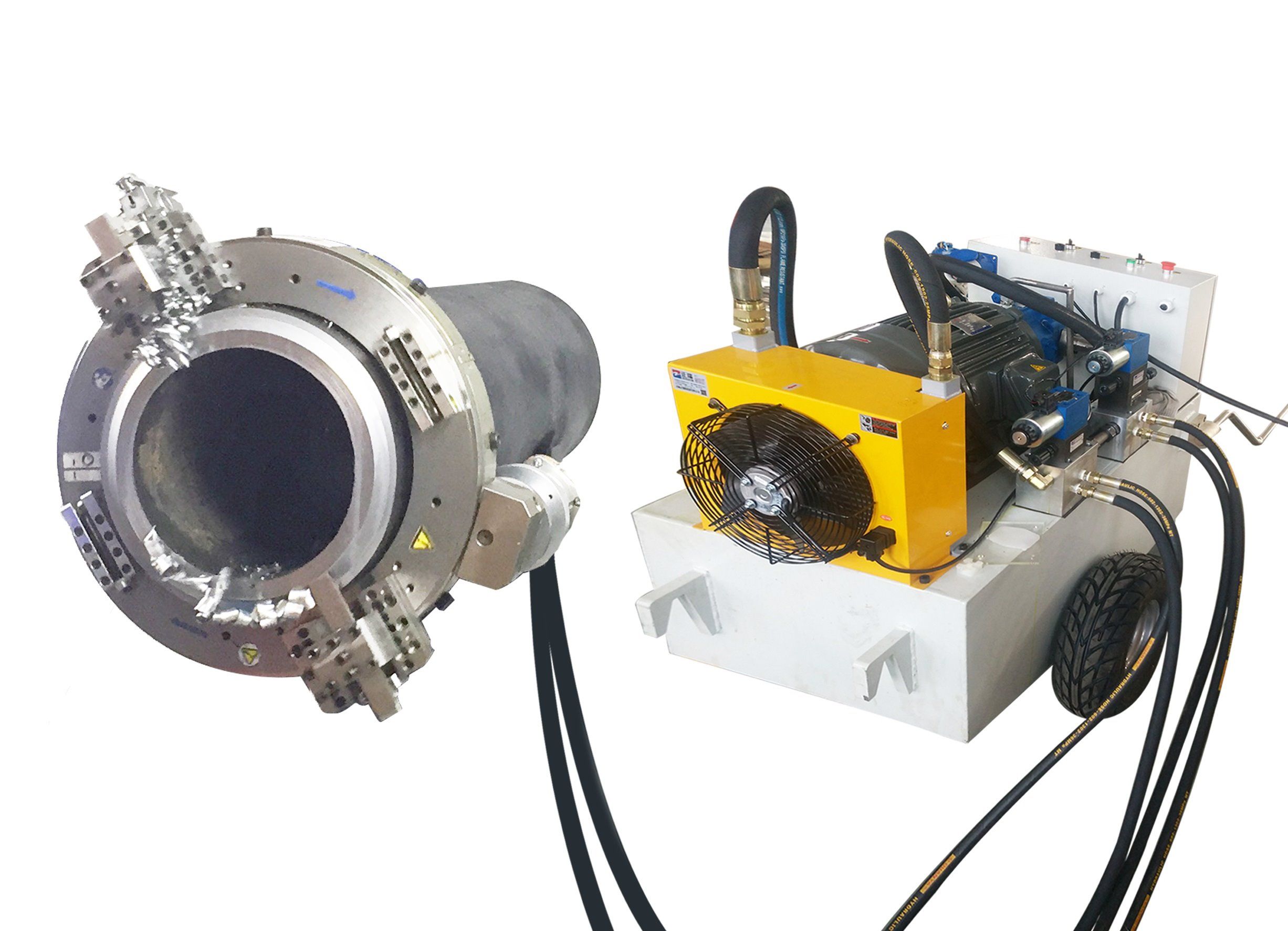

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes, with which cutting and beveling can be conducted at the same time. The SFM Series manufactured by BHY cuts and bevels the pipe end or middle of pipe by clamping external wall, with processing diameter up to 2100 mm and maximum wall thickness of 100 mm. With an R&D history of nearly one hundred years, the product can process pipes or casings accurately, continuously and vertically.
★ Industry application:
It is widely used in long-distance transport pipeline, power plant, nuclear power, petroleum, chemical engineering, natural gas, boiler shop, pharmacy, pipe prefabrication plant, pipeline installation engineering, rush-repair work, etc.
★ Bevel Type

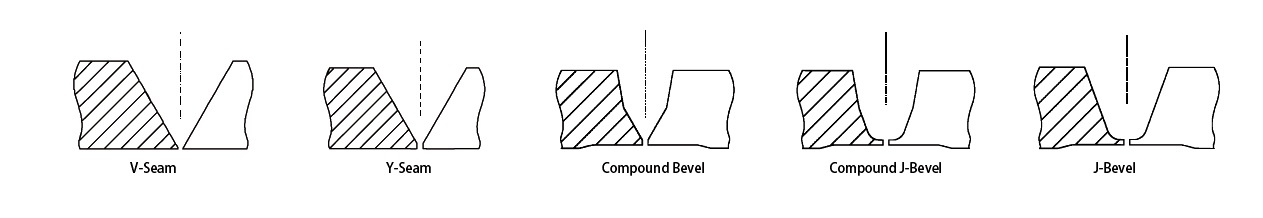

We have standard beveling tools of 5°,10°,20°,30°,37° and also can customize the tools.
★ Technical Parameters | Model | Processing
range (in) | Max wall
thickness(mm) | Weight
(kg) | Drive mode |
| SFM0206 | 2"~6" | 30 | 35 | Pneumatic
Hydraulic
Electric |
| SFM0408 | 4"~8" | 40 | 40 |
| SFM0612 | 6"~12" | 80 | 45 |
| SFM0814 | 8"~14" | 100 | 55 |
| SFM1218 | 12"~18" | 100 | 70 |
| SFM1420 | 14"~20" | 100 | 76 | Electric
Hydraulic |
| SFM1824 | 18"~24" | 100 | 123 |
| SFM2026 | 20"~26" | 100 | 130 |
| SFM2430 | 24"~30" | 100 | 142 |
| SFM2632 | 26"~32" | 100 | 150 |
| SFM3036 | 30"~36" | 100 | 159 |
| SFM3642 | 36"~42" | 100 | 179 |
| SFM4248 | 42"~48" | 100 | 198 |
| SFM4860 | 48"~60" | 100 | 642 |
| SFM6072 | 60"~72" | 100 | 730 |
| SFM7284 | 72"~84" | 100 | 820 |
* Processing range can be customized according to requirements | Drive mode | Pneumatic | Air requirements | 1.7m3/min-6.2bars
(65ft3/min-90psi) |
| Hydraulic | Hydraulic requirements | 31l/min-104bars
(8gal/min-1500psi) |
| Electric | Electric requirements | 220V/AC |
| Feed method | Star wheel system | Feed rate | Fixed 0.08mm per trip |
| Finish | Anodizing sand blasting | Packaging | Aluminum alloy packing case |
★ Product Features:
•It is in split frame structure, and can be quickly installed to any position of external wall of operational pipeline with its clamps, occupying small space.
•It can process pipes made from various grades of carbon steel, alloy steel, stainless steel and other metals.

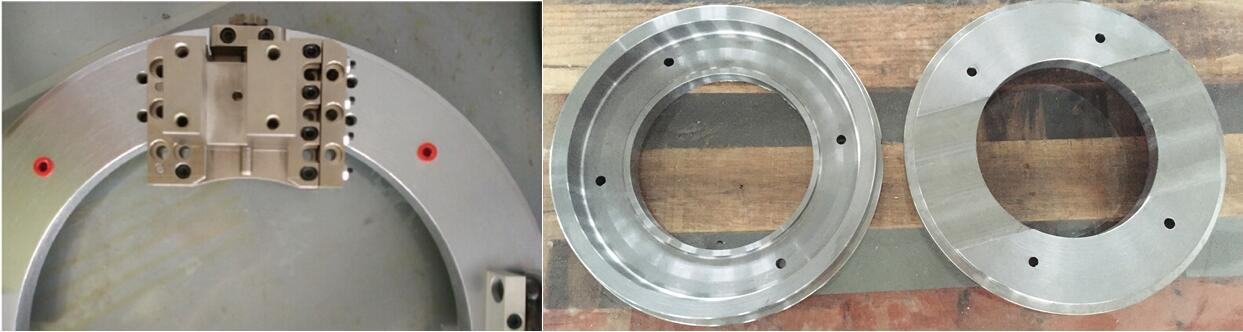

•Fixed rings use lightweight and high-strength aeronautical aluminum to ensure portability
•Cold Cutting-No heat affected zones
•Equipped with precise machining tools, with high efficiency and long service life
•Multi-point pipe clamping system which can securely clamp the equipment onto the pipeline
•Feed system offers low clearance operation with precise feed.
•Low friction adjustable bearing system provides maximum stability and extended machine life
•Full closed bearing and driving gear system for operational safety
•Adjustable Bearing System-Distributes load evenly to ensure stability
•Interchangeability of Components-Allows accessories & tool slides to mount to multiple ring sizes
★ Accessories:
•Ring sets
-It is provided for the users who have drive motors and tool slides to economically expand the application range of SFM products.

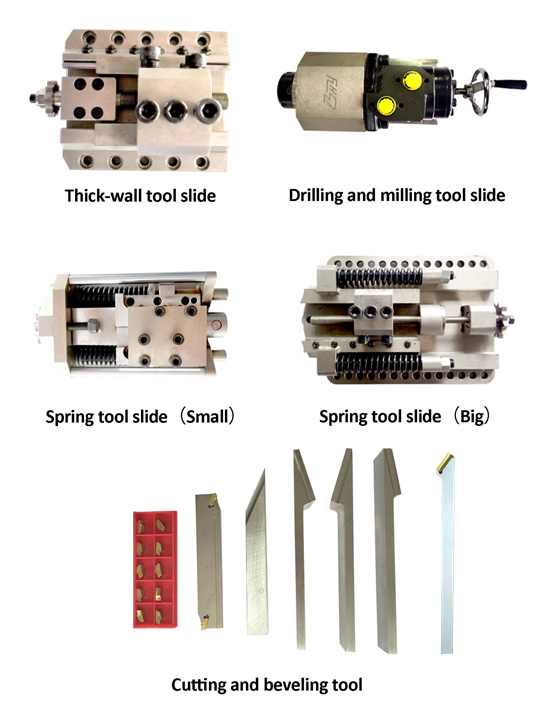

•SFM tool slides (select one)
A.Thick-wall tool slide (conventional): It can be applied to SFM models 206 to 4248 with stroke of 64 mm;
B.Spring tool slide: It is used to track the surface of out-of-round pipes, which can greatly save installation, adjustment and cutting time. It can quickly and automatically track the system to ensure continuous truncated edge, and can even keep standard wall thickness of large diameter counterbore when combined with counterbore slide.
C.Drilling and milling tool slide (only for hydraulic): Achieve pipe cutting by using the drilling and milling. High-strength tool slide, smooth cutting and simple operation.
★ Our advantages:
•Material
-Fixed rings use lightweight and high-strength imported aeronautical aluminum with anodized surface;
-Moving coils use mold steel with chrome-plated surface .
•Technology
-Eccentric shafts and gear shafts used grinding process after quenching to ensure the accuracy of the tooth surface.
•Power
-Three imported motors to choose from: Germany Metabo electric motor, imported pneumatic motor and American White hydraulic motor.
★ Standard Configuration:| Machine | SFM machine | 1PC |
| Drive Mode | Hydraulic power station | 1PC |
| Components | Aluminum alloy/wooden packing case | 1PC |
| Cutter holder | 1PC |
| Cutting blade | 1PC |
| Tools | Rubber hammer, Spray bottle, Square, Wrench set | 1SET |
| Documents | Operating manual, SFM | 1PC |
| Certificate of conformity, SFM | 1PC |
| U-disk | 1PC |
★ BHY On-site Service Reference of SFM

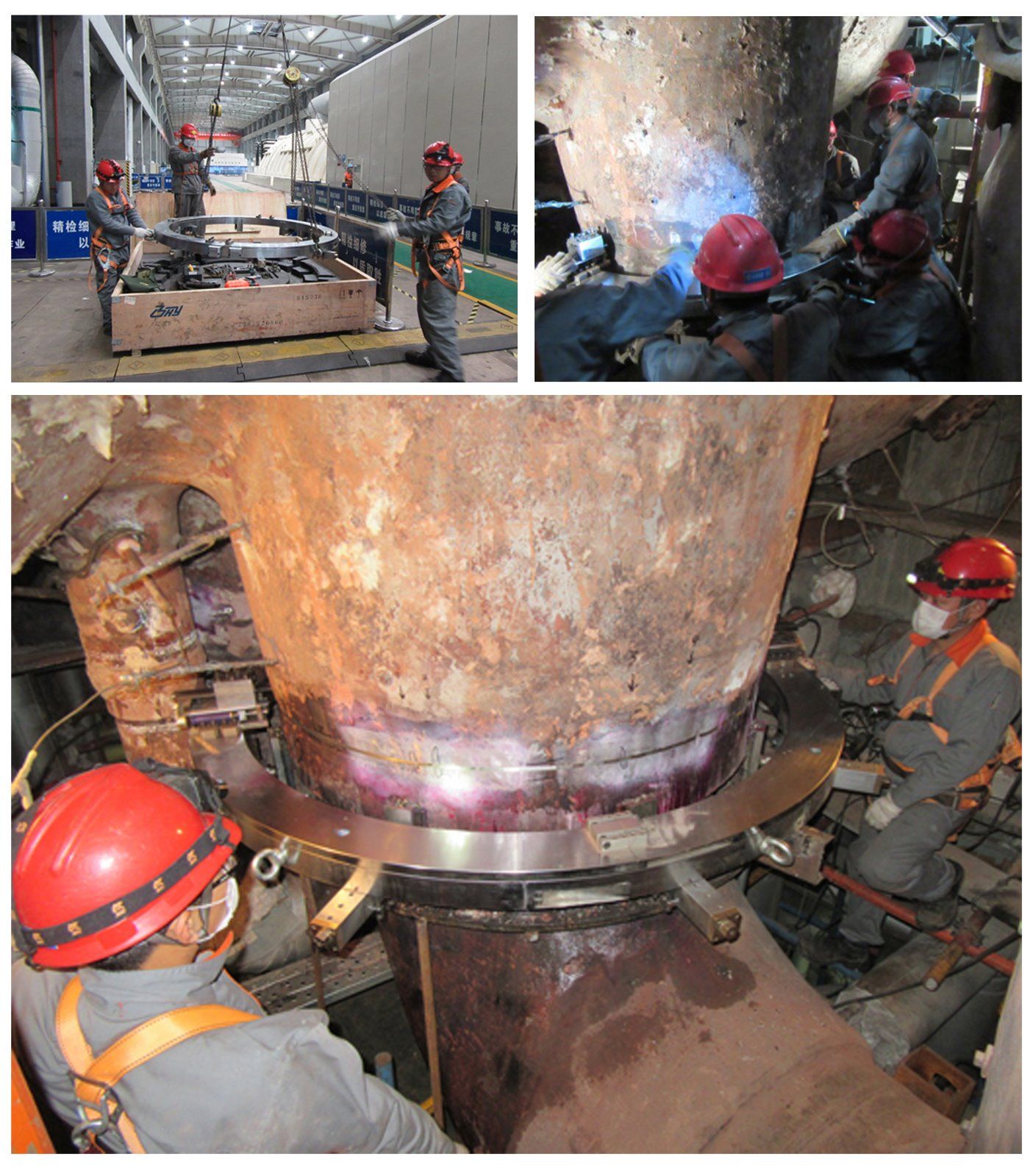

- We have successfully completed this following service project in Henan, China with SFM4860 machine and our own service people through tough work environment and got the commendatory letter from our client. In China, we are the first maker to enter the power plant industry among all the domestic factories of pipe cutting and beveling machines which means our quality is highly comparable to the world-class brands.| Site Location | Henan, China |
| Industry | Power Station |
| Pipe O.D | 56" (1414mm) |
| Wall thickness | 110mm |
| Bevel type | Double D |
| Material | 15Cr,P91 |
| Weld width | 80mm |
| Other information | Cut and bevel the weld , but not cut off; Narrow working space. |
