| Prod Model: |
802-5CW |
| Material: |
Aluminum Alloy |
| Type: |
Outside-mounted |
| Installation Type: |
Standard |
| Function: |
Door Closer |
| Standard: |
European Standard |
| Remote Control: |
Without Remote Control |
| Door Width: |
1200mm |
| Usage: |
School |
| Color: |
Silver |
| Door Weight: |
25-120kg |
Product Description

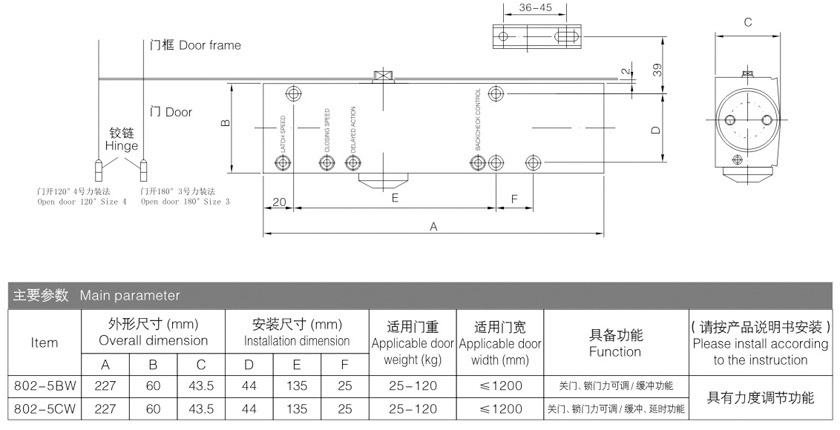

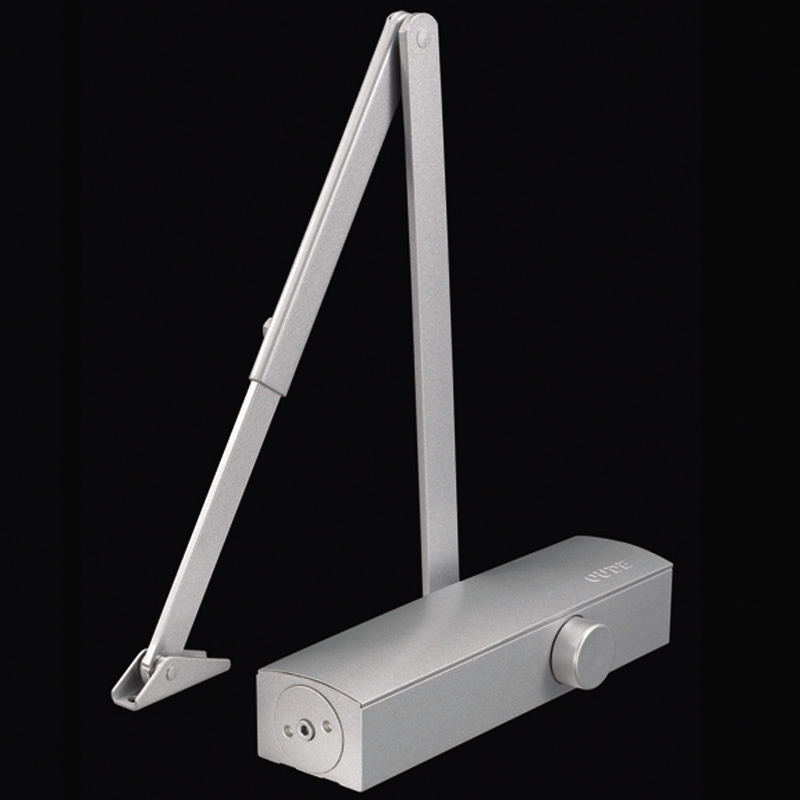

802-5CW
Size:226MM(L)×43MM(H)×60MM(W)
Footprint:44MM×135MM×25MM
Power:En2#~En5#
Door Weight:25-100KG
Door Width:900MM~1200MM
Function:Backcheck/Delay action optional
Hold-open arm optional
Slide track arm optional
plastic,steel cover optional
Special finish optional
Hydraulic Anti-freeze oil for special temperature under-45ºC~50ºC
Needle bearing application
5years guarantee
Wenzhou Oude Gating Technology Development Co., Ltd is a China HongKong Joint venture with investing 99 Million RMB totally, is an enterprise with 20 yeas' experience in manufacturing door closer. We are a intergrated R&D, produce and sales for door closer solutions for global customers. Also we are one of the drafters of National Light Industry Standard QB/2698-2013, and we are entitled to technology ( innovation ) Enterprise By Wenzhou Government.
We are specialized in producing various middle-high class automatic door closers, ground spring, and relative door accessory series hardware products, classified into more than 70 categories in 8 series. The company is located in Wenzhou Jinhai Industy Zone, near to Wenzhou Airport. The factory covers an area over 16, 000and the total building area is approximately 28000 M2.
OUDE comprises R&D center, testing center and manufacturing center, and sales center, has over 20 in-service engineers and research specialists. Its products include eight series of over 70 varieties. Since it was founded, developing High performance Oude door control products has always been the objective of OUDE. We introduced various automation equipments, such as die-cast machines with robot systems, multistage machining centers, assembling line, automatic painting line and packing line, which is outstanding in door closer industry. Each employee of OUDE manufactures in strict accordance with the specified technologies and pays attention to the production details of each process so that OUDE door closer may have outstanding performance. OUDE have passed ISO9001 quality management system certification, EN1154 and EN1634 certification, UL certification, Fire prevention certification of National Ministry of Public Security and Daily Hardware detection certification of Zhejiang Province. The quality of our products have met high-quality fire prevention technical standard, with reliable quality, compact structure, appearance, stable closing and sensitive adjustment, also the 1 million cycles life is guaranteed. With our strong technical strengths, OUDE has developed high-quality and high-performance door closer that have won recognition from users. Its professional and perfect service and sincere cooperation has created more value for customers, and has established a stable and solid marketing network for OUDE. Its products are sold to over ten countries and regions, include Middle East, North America, Europe, HongKong and Taiwan.
OUDE has insisted on pursuing high quality and aimed at creating the best door closer in China. OUDE takes quality priority and honest oriented as enterprise tenet, and high performance, high quality and high efficiency as development policy. We sincerely welcome traders from home and abroad to cooperate and grow with us together.
