| Prod Model: |
ODEX140 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Prodrill |
| Model Number: |
Odex80~Odex280 |
| Type: |
Drill Bit |
| Machine Type: |
Drilling Equipment |
| Certification: |
ISO9001:2008 Soncap |
| Material: |
High Quality Carbide + High Quality Carbon Steel |
| Processing Type: |
Forging |
| Use: |
Well Drilling |
| Application: |
Water Wells,Geothermal Wells, Building, etc |
Product Description

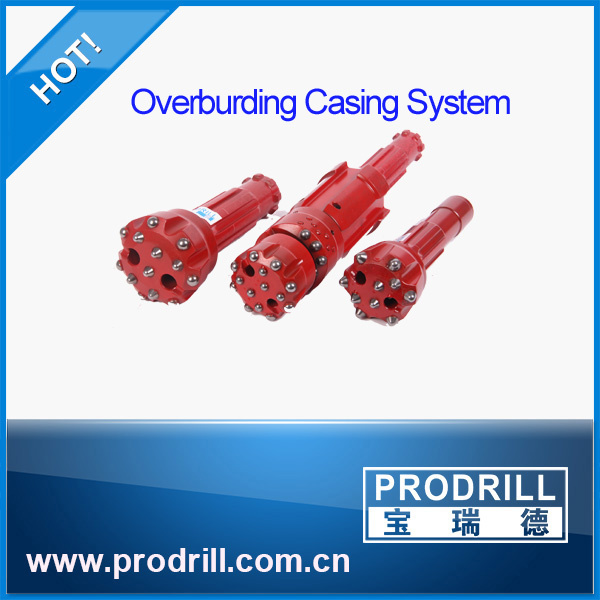

Prodrill produces the ODEX Eccentric Overburden Drilling System, starting with the ODEX90 to suit 114mm O. D. Casings. This two-piece system comprises the shank bit holder and the eccentric pilot bit that is secured in the bit holder by a double interlocking pin. This is easily removed to allow for bit are sharpening or replacement. Prodrill ODEX overburden drilling systems are widely used in a variety of applications from well drilling and mining to rock anchoring and site investigation.
Application Range:
It is suitable for drilling water wells, geothermal wells, short mircopiles, medium mini-type grouting hole of building, dam and harbour project.
1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly
2. When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in, allowing the drill bit assembly to be pulled up through the casing.
3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
Main Products:
1-12 inch middle-low/high air pressure DTH hammers & bits
Big hole high air pressure DTH hammer using in water well, oil, gas and construction drilling
Eccentric overburden drilling Equipment
Hole opener bit
Rock thread bit (R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60)
Extension Rod, M/F Rod, M/m Rod, Drift Rod,
Shank adapter, coupling sleeves and all kinds of adapters
Advantages:
Compared with the oversea brands, our advantages are bellowing:
A. Our products can match over 95% against the original products
B. Price are competitive against the famous brands and best quality against the small factory
About Us:
1. Our factory has been specialized in manufacturing drilling tools and spare parts for over 10 years.
2. We have advanced technology and equipment.
3. Our technician has more than 13 year's professional working experience.
4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA, Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
Hammer | Pilot
diameter | Reamed
diameter | Casing tube
outside
diameter | Casing
tube wall
thickness
max. | Casing
tube wall thickness
w/o casing
shoe max. |
| ODEX 90 | 3" | 3-9/16" | 4-13/16 | 4-1/2 | 1/4 |
| ODEX 115 | 3"-4" | 4-1/2" | 6 | 5-1/2 | 1/4 |
| ODEX 127 | 4" | 5" | 6-1/2 | 6 | 1/4 |
| ODEX 140 | 4"-5" | 5-1/2" | 7-1/8 | 6-5/8 | 1/4 |
| ODEX 152 | 5"-6" | 6" | 7-9/16 | 7 | 1/4 |
| ODEX 165 | 5"-6" | 6-1/2" | 8-7/32 | 7-5/8 | 1/4 |
| ODEX 190 | 6"-8" | 7-1/2" | 9-1/4 | 8-5/8 | 1/4 |
Xiamen PRO Drill Equipment Co., Ltd is a specialized company of Rock Tools, which is experienced in developing and manufacturing Top hammer and DTH rock drilling equipments. The main products include high, medium and low air pressure DTH hammers and bits, Symmetric and eccentric overburden advanced casing drilling tools, and Threaded button bits, Drill rods and Couplings, also
Air grinder for button bit, chisel bit, Diamond grinding cup for cemented carbide
Reconditions and sharpener.
PRO Drill Rock Tools can be perfectly matched with the world famous brand such as Atlas Copco, Sandvik, Ingersoll-Rand and other well-known manufacturers' Drill rigs and they are widely applied to varies of areas including blast holes, earthwork projects, mineral exploration, water-well, construction, geo-thermal exploration.
PRO Drill plants has introduced the most advanced manufacturing equipments and technology in the world, such as Electro-hydraulic forging hammers for forging process, Germany atmosphere-controllable sealed quench furnace for heat treatment, Super CNC machines and Processing Centre for accurate finishing and experienced staff in metal machining all contribute to the high performance rock tools.
In response to the demand from dimensional stone quarry, we also offer all kinds of splitting, pushing and grinding tools like Expansive Mortar, Soundless Cracking Agent Shims and Wedges, Hydraulic Rock Splitter, Cyliner Type Rock splitter, Hydro bag, Air Pushing Bag and Cemented Grinding Stone are available as integral services working for the worldwide quarry owners.
Our believe that innovative think drives the delivery of quality rock tools to customers, . Prodrill rock drilling tools are renowned for their great reliability, excellent and even quality and long services life with an expertise direct to any corner of the world.
We are committed for groundbreaking solution of drilling and Splitting & cutting for your unique operation in quarrying, mining and construction project. Looking forward to hearing from your enquiry.
