OEM Custom Socket Injection Mold
| Price: |
US $ 1000-30000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
YIXUN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
OEM Custom Socket Injection Mold |
| Mold Standard: |
Lkm / Hasco / Dme / Ftaba |
| Drawing Format: |
STP / X-T / Igs / Dwg |
| Dimension Tolerance: |
ISO02768 |
| Delivery Time: |
Customized |
| Size: |
According Client's Drawing or Sample |
| Company Style: |
Factory |
| Mold Material: |
Nak80, Steel 20, 1.2738 and So on |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Single-Process Mode |
| Application: |
Home Use |
| Installation: |
Mobile |
| Surface Finish Process: |
Polishing, Sand Blasting, Heat Treatment |
| Mould Cavity: |
Single Cavity and Multi Cavity Available |
| Plastic Material: |
as Requirement |
| Design Software: |
Ug, Proe, Autocad |
| Certification: |
Ifa |
| Standard: |
Hasco, Dme, Misumi, Punch |
Product Description

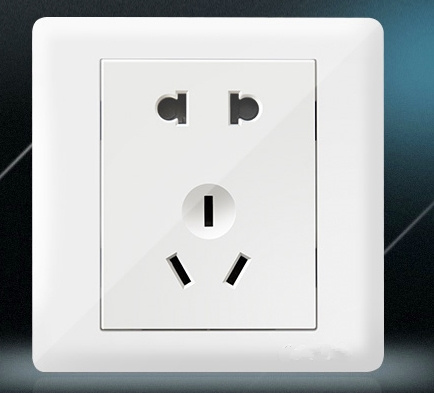

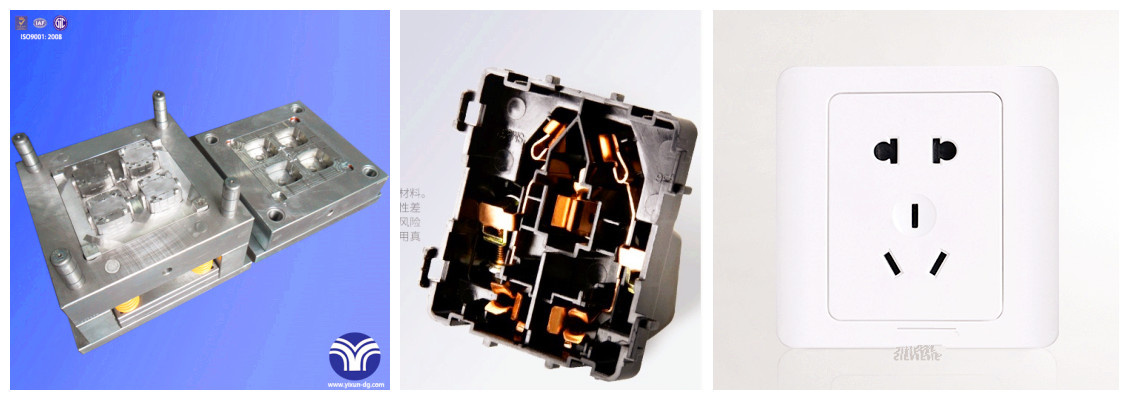

OEM custom socket injection mold
1. Cavity #: 1*8 cavity
2. Gate system: Yudo 4 drops hot runner with pin point gate
3. Core and cavity steel: 420ss HRC48-52
4. A&B Plate Steel: P20
5. Plastic material: PA66+15%GF+25%MFBasic information of our company:With near 20 years'development, Yixun now have the area of more than 60,000 square meter, regular employees more than 100 and 70 among of them have experience over 10 years.High precision plastic part production injection mouldOur business scope:1. Plastic mould design & fabrication
2. Injection moulding
3. Secondary operationOur product range:1. Automobile mold & parts
2. Electricals mold & parts
3. Communications mold & parts
4. Double color mold & parts
5. Deep barrel series mold & parts
6. Clear parts & mold
7. Precision parts & mold

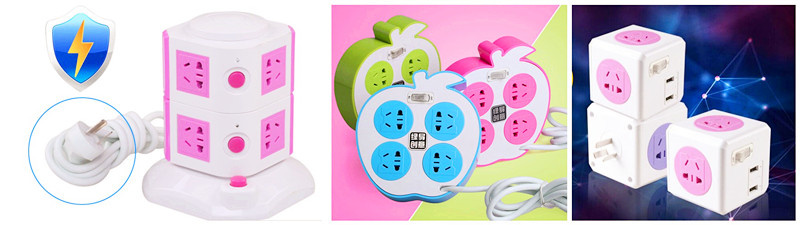

A part of our finished Electronic Socket for your reference.
Specifications | Shaping Mode | Plastic Moulding part & injection parts |
| Application: Industry | Auto ,Medical, Home appliance, Daily Community, Telecommunication |
| Production Equipment | Elite Plastic Injection Machines ,CNC, Mirror EDM machine, Wire Cutting machine, Carving machine, Lathe
Drilling machine, Grinding machine, Milling machine, |
| Material steel | P20, 738, 738H, 718, 718H, NAK80, S136, S136H, 2378H, 2311, 2083, 2316, H13, SKD61, 2344, 8407
And other material as requirement |
| Part material | ABS, PP,PC, POM ,PVC, PE, PET, PMMA , Acrylic, and other material As requirement |
| QC Machine | 3D Measurement, Profile Projector, Hardness Tester and other regular size inspection equipment. |
| Mold Cavity | Single or Multi-Cavities Available |
| Runner System | Cold or Hot-Runner Available(Hasco, yudo, d-m-e etc.) |
| Mould Base | LKM, HASCO, DME etc |
| Hardness of steel | Vacuum quenching ,Nitride, HRC41-47, HRC46-50,HRC60 |
| Standard mould parts | Dme, hasco, JIS, cumsa etc. |
| Mold Lead time | 4Weeks T1 samples , exact time depends on Mould Complexity |
| Mould Life | 0.3 Million Shots- 1Million shots (Different steel different production, min mold life 200, 000 shots) |
| Packing | Exporting standard (Free fumigation case) |

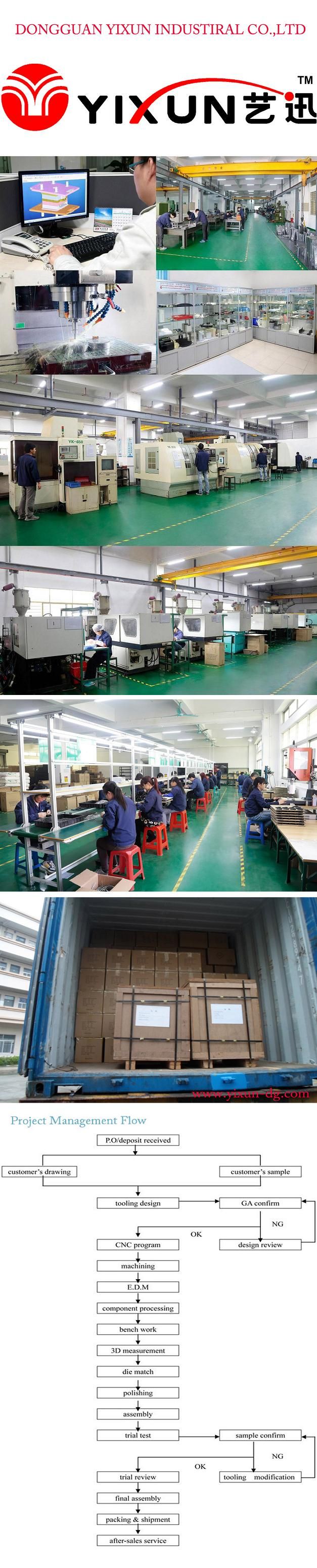

3.Mold manufacturing show and mold management flow
Our advandage1.Professional manufacturer
2.Certificates: ISO 9001:2008,TS16949
3. Highly skilled manufacturing process
4. A variety of ODM&OEM product range
5. Strict quality Control System6. Advanced equipment and excellent R&D Team
7.Software for specification drawings: Pro/E, Auto CAD, solid work 2001,CAXA,UG,CAD,CAM | Business Step |
| 1.R&D | We support customer R&D. Make the files or improve the design if you needed |
| ↓↓↓ |
| 2.Quotation Making | Mould Quotation will be finished in 1 day according to information we get |
| ↓↓↓ |
| 3.Negotiation | The quality ,price ,material, delivery time .payment item. ect |
| ↓↓↓ |
| 4.Mould Design | 3-5 days for mould and product 3D/2D drawing design |
| ↓↓↓ |
| 5.Mould | According to customers' request to build the mould.Before make the mould .we send mould design to customer approval first . Mould will be usually finished in 25-60 days |
| ↓↓↓ |
| 6.Mould Testing | When moulds are finished,we will test the moulds to check it satified consumers' needs.And we will send samples for consumers' reference. |
| ↓↓↓ |
| 7.Sample confirm | If the first sample come out is not satisfied customer .we modify the mould and until meet customers satisfactory |
| ↓↓↓ |
| 8.Delivery | Delivery goods by sea or by air ,according customers requirement |
Contact information:Dongguan Yixun Industrial Co.,Ltd.Joyce salesAdd: Building 1, ZhuGang RD # 19, ShaTou Community, Chang'An Town,DongGuan City, GuangDong Province, China
Donguan YiXun Industrial Co., Ltd Profile
Locating in Dongguan Chang an town of convenient transportation and well-developed mould industrial, Dongguan YiXun Industrial Co., Ltd is a privately operated high technology company, integration of mould design and manufacturing, plastic injection, parts ass-embly, selling and exporting.
Since 1998, YiXun experiences nearly 20 years developing. Now, YiXun cover an area of 10, 000 m2, consisting of more 200 people including about 100 mould design engineers, mould technicians and other kinds technicians.
The moulds and parts made by YiXun cover auto parts, household electrical appliances, commodity, electronic products, medicals products. etc. YiXun own rich experiences of mould machining processes, hereafter plastic injection- process in all kinds of mould including multiple cavity mould, hot runner mould, precision mould, mirror mould, , deep cavity mould, , air assistant forming mould. The customer spread worldwidely, mainly in USA, Canada, Mexico, Brazil, UK, Denmark, Germany, Poland, Russia, Japan, China. By continuously improving products quality and providing good services, YiXun has always been keeping good cooperation relationship with overseas and domestic customers.
YiXun got ISO9001 quality management system certification. YiXun insist on quality policy of fine make, control seriously, keep quality, satisfy customer. Being obedient to operation principle of integrity and responsibility, YiXun provide series service from fast-in time mould manufacturing to final parts by reasonable price, good quality.
Expanding our horizons to whole world, looking back, we are grateful for the old customer 's support and great kindness.
Looking forward to the future, we sincerely expect more new friends to come to cooperate with YiXun, together creating tomorrows' brilliant.
Company History
In 1998, Found Dongguan Chang an Hen Yi Mould Factory in Chang an town
In 2007, Moved to Dongguan Hu men town and changed name as Dongguan Hu men YiXun Mould Factory, meanwhile in the same year found YiXun Mould Technology Co., Ltd in Hong Kong.
In 2010, Updated Dongguan Hu men YiXun Mould Factory to be Dongguan YiXun Industrial Co., Ltd.
In 2014, Dongguan YiXun Industrila Co., Ltd moved back to Dongguan Chang an town.
