| Prod Model: |
wanke |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
PCD Blanks for Diamond Cutting Tool |
| Certification: |
ISO9001 |
| Size: |
46 |
| Surface: |
Mirror Smooth |
| Type: |
Cutter |
| Material: |
Polycrystalline Diamond |
| Work Type: |
Gear Cutting |
| Style: |
Round |

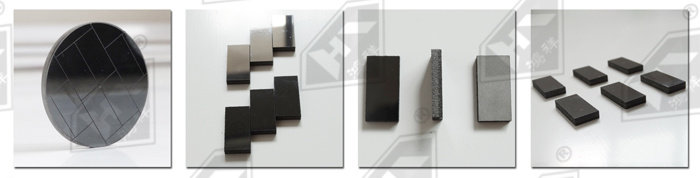

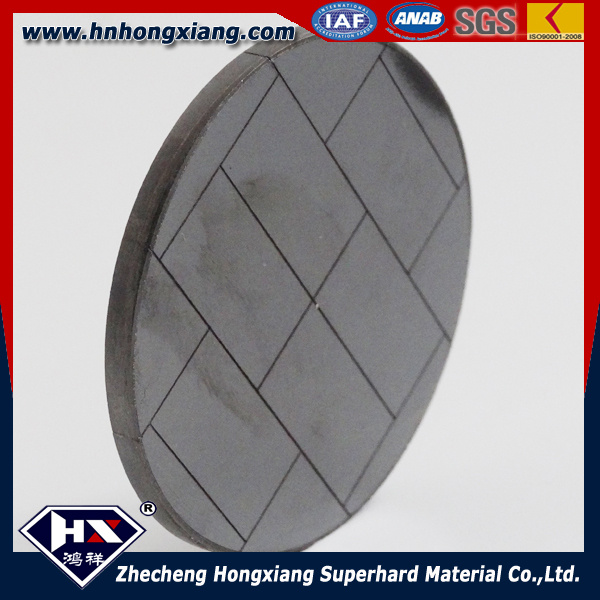

Product Description
Application: Widely used for the machining of non-ferrous metals and alloys, such as aluminum, copper, aluminum/ gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramics, plastic, rubber etc, where high abrasion resistance and good surface finish are required.
PCD cutting tools is sintered by carbide and diamond in ultrhigh pressure and high temperature condition.
48Dia*3.2/2.0/1.6mm Thickness
Grain Size
(µm)
| Total Thickness (mm) | PCD Layer Thickness (mm) | Binder
| Diameter
(mm)
|
| Standard |
| 10 | 1.0 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 1.2 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 1.6 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 2.0 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 3.2 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 25 | 1.0 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 1.2 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 1.6 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 2.0 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| 3.2 | 0.5 | metallic bond | 48 |
| 0.4 |
| 0.3 |
| Sandwich PCD |
|
PCD cutting tools mainly used for processing non-ferrous metal like copper, aluminum, zinc, alloy and others, also used for processing rubber, plastic, bakelite, etc
It is better than natural diamond of resistance to impact, and its abrasion resistance is over100 times than superhard alloy . Suitable for nonferrous metallic and nonmetallic material processing. PCD cutting is not suitable for processing ferrous metals commonly.
Application
Process of ceramic, carbide, tungsten and other highly abrasive materials and parts
Process of high silicon aluminum alloy, wood, glass, ceramic, other abrasive materials and parts.
Process of silicon aluminum alloy, plexiglass, ceramic and non-ferrous metals.
Process of silicon aluminum alloy, plexiglass, and non-ferrous metals.
Features
Super high abrasion resistance, the content rate of diamond powder is above 95%, long service life
High abrasion resistance and impact toughness, used for lager cutters
Higher abrasion resistance and impact toughness, fine surface finish
High impact toughness and better abrasion resistance, uniform surface finish, used for larger cutters.
Packaging & Delivery
Packing details: 10 pcs/ packet in Rose plastic boxes
Delivery Time: 7 days
Zhecheng Hongxiang Superhard Material Co., Ltd. Affiliated with Wanke Group, is a highly professional and experienced manufacturer of synthetic diamond powder & diamond tools in China. We have specialized in this field over 27 Years and always dedicated to the produce the diamond tools in high quality and good service.
Our products include,
Synthetic diamond
Diamond powder
Diamond saw blade
Diamond drill bit
Poly crystalline Diamond composite ( PDC )
PCD wire drawing dies
Diamond glass tools
Diamond polishing pad
Diamond cutting tools
Diamond grinding tools
Diamond wheels
Diamond tools, etc.
Why choose us?
1. Since 1990, with over 27 years diamond tools manufacturer experience.
2. Rich experience in OEM order
3. Advanced production equipment
4. Own design team, can help you custom the packaging
5. Own provincial engineering technology center
6. D&B and ISO9001 Certificates
We are a professional synthetic diamond powder & diamond tools company integrating development, production and sales. Factory located in middle of China-Henan, with more than 124000 square meters. "High quality products, competitive prices, and classic services" is the soul of our business.
Warmly welcome all partners to join us for mutual benefits cooperation.
