OEM/ODM Strong Alloy Aluminum Hardware (dB20L)
| Price: |
US $ 3.65-3.96/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Aluminum Snap Hook DB20L |
| Open Gate: |
30mm |
| Laser Marking: |
Available |
| Forged Logo: |
Available |
| Finish: |
Anodizing |

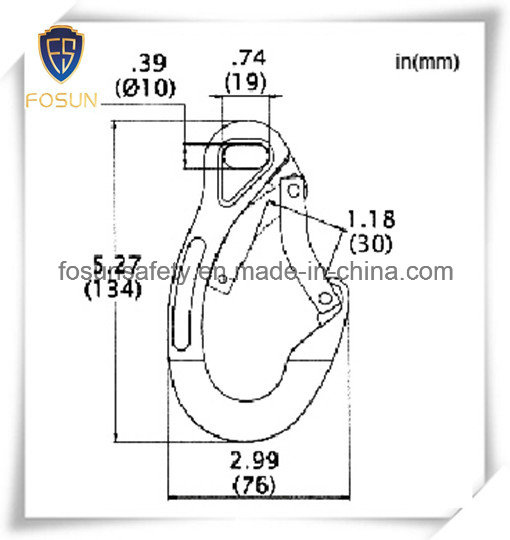

| Length: |
134mm |
| Width: |
76mm |
| Material: |
Aluminium |
| Type: |
Hook |
| Usage: |
Personal Protective Equipment |
| Brand: |
Fosun |
Product Description
Specifications:

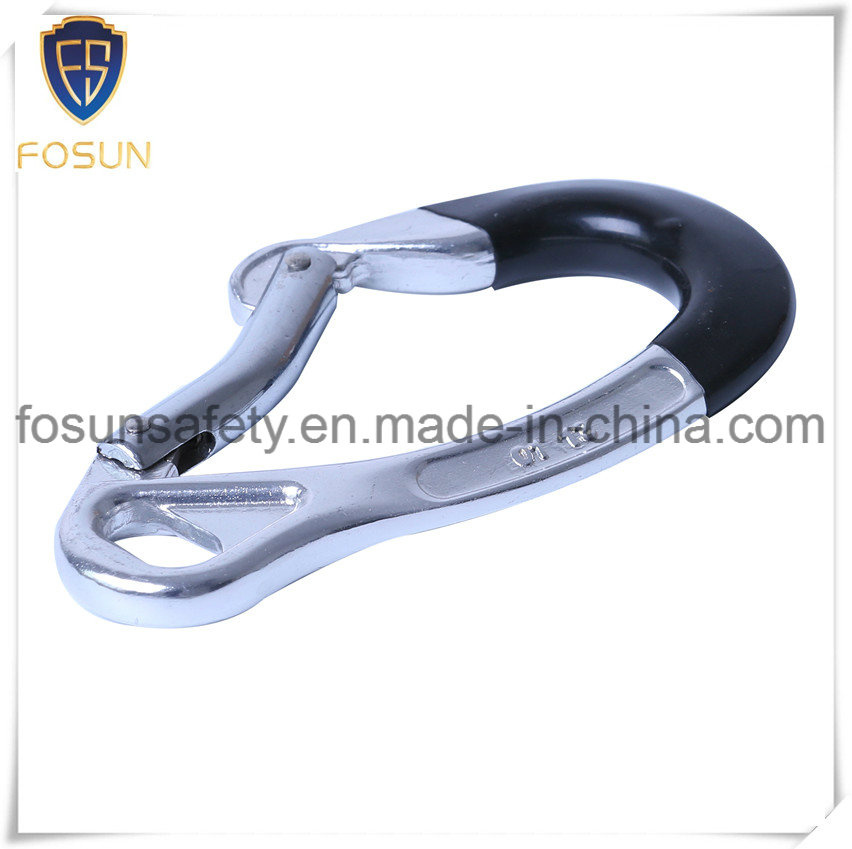

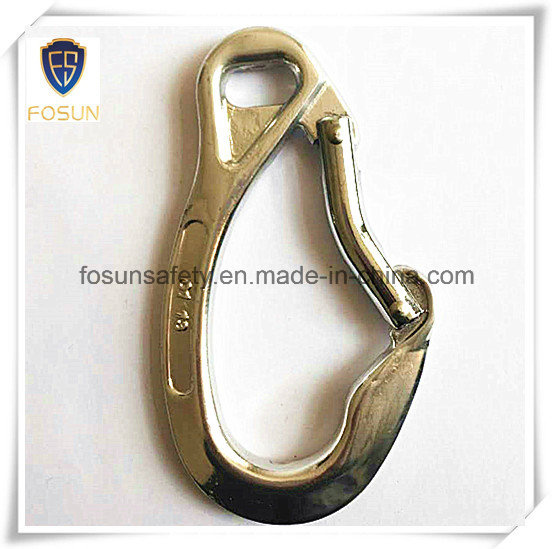

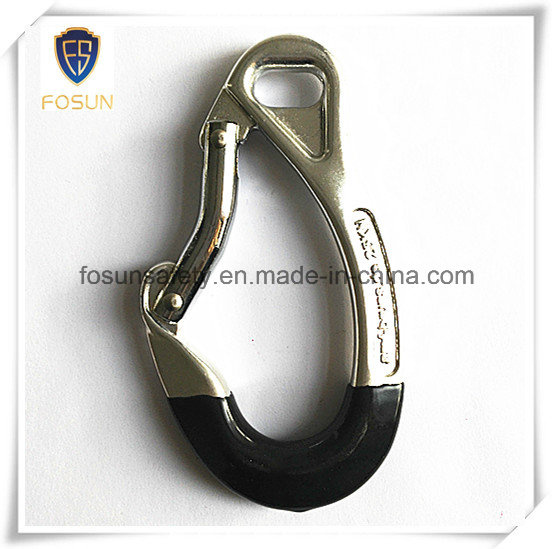

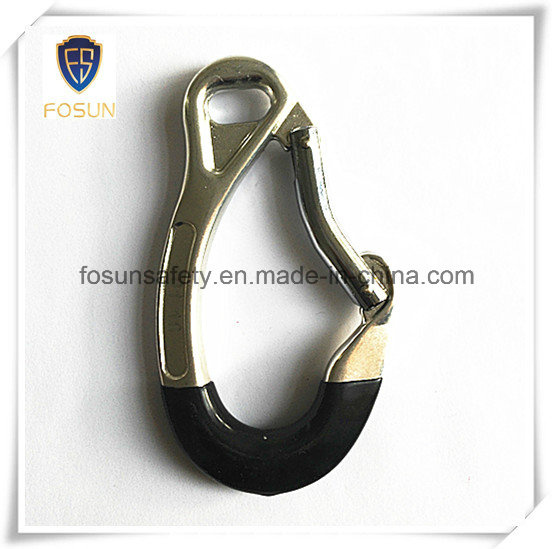

DB20L Aluminum Snap Hook
Drop Forged Aluminum
100% proof loaded to 3600 lbs(16kN)
Min tensile strength 5000 lbs(22.2kN)
Meets Or Exceeds:
EN362-2004
Finished:Anodizing
Weight: 140gm
MINIMUM REQUIREMENTS AS OUTLINED FOR HOOKS AND CARABINERS PER STANDARD| Standard | CSA Z259.12-01 | CSA Z259.12-11 | ANSI Z359.12-1999 | ANSI/ASSE Z359.1-2009 | EN 362:2004 | NFPA 1983-2006 |
| Major Axis | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 5000 lbs(22.2kN) | 4500 lbs(20kN) | *** |
| Gate Face | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | 3600 lbs(16kN) | 220 lbs(1kN) | N/A |
| Side Load | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | 3600 lbs(16kN) | 350 lbs(1.55kN) | N/A |
| Minor Axis | N/A | 3600 lbs(16kN)* | N/A | 3600 lbs(16kN)* | ** | *** |
* New Standard required Minor Axis Loading for connectors with non-integral eyes.
** EN:Basic Connectot 1575 lbs(7kN);Multi Use Connector 3378 lbs(15kN).
*** NFPA:Light Use...Major Axis gate closed 6069 lbs(23kN);Major Axis gate open 1574 lbs(7kN)
General Use...Major Axis gate closed 8922 lbs (39.7kN); Major Axis gate open 2473 lbs(11kN);Minor Axis 2473 lbs(11kN) |
Our Advantage
1,10 years of rich experience in forging and production.
2,Using high quality materials, first-class equipment.
3,Stable products supply, good quality control and advanced technology.
4, Mark as customer's request, like customer's Company LOGO
5,Competitive factory price.
6,Free samples, you only pay the shipment charge.
7,Strict inspection before shipping.
8,Welcome customer's designs, OEM and ODM items.
9,On time delivery.
10,Good warranty and after-sales service.
